Seaward ElecDatasheet (PDF)

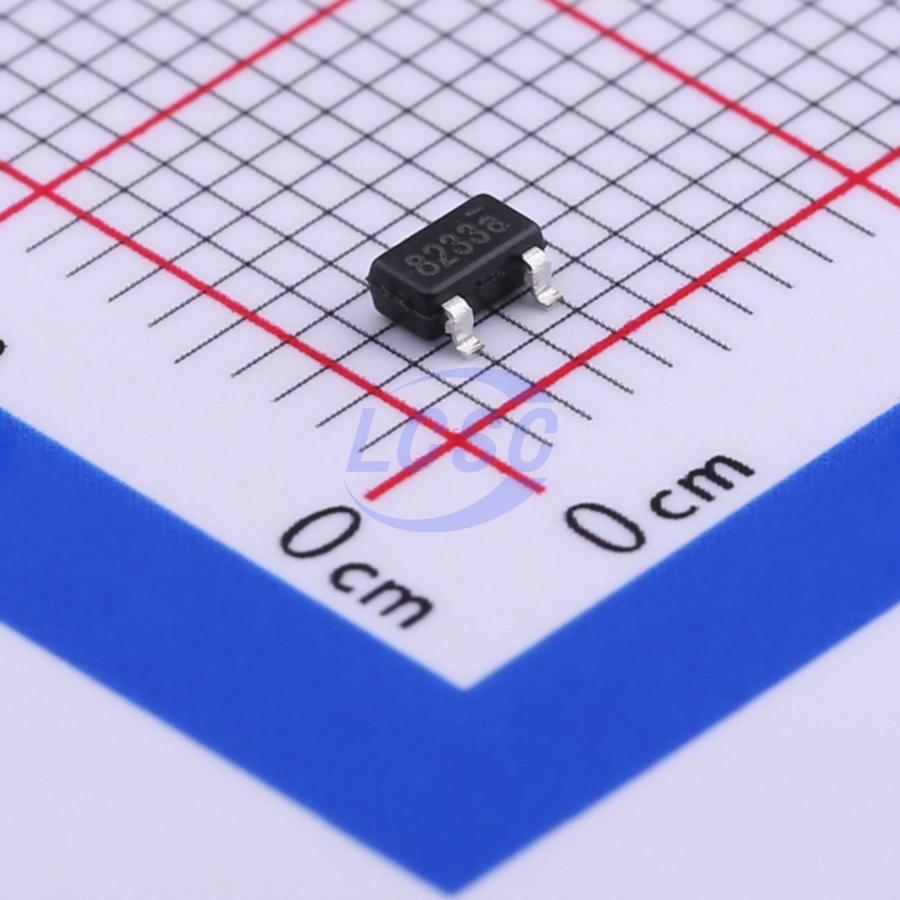

SE8233X2-HF
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
30V/2uA,Ultra Low Quiescent Current LDO
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SE8233X2-HF
- Store part #
- C437587
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,125 in stock
#C437587
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.02 | ₹75.10 |
| 50+ | ₹11.89 | ₹594.50 |
| 150+ | ₹10.33 | ₹1,549.50 |
| 500+ | ₹9.17 | ₹4,585.00 |
| 3,000+ | ₹8.11 | ₹24,330.00 |
| 6,000+ | ₹7.65 | ₹45,900.00 |
5 × ₹15.02
₹75.10
excl. GST
₹88.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SE8233X2-HF
₹75.10 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Short Circuit Protection;Thermal shutdown;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
SE82XX series is designed for power sensitive applications. It includes a precision and high voltage input stage, an ultra-low power bias current branch, and results in an ultra-low-power and low-dropout linear regulator. The SE82XX operates from an input voltage of VOUT + 1V to 35V, consumes only 2.5μA of quiescent current, and offers 1% initial accuracy and low dropout voltage, 300mV typical at 100mA. SE82XX provides fixed 3.00V, 3.3V and 5V outputs. Other features include short-circuit protection and thermal shutdown.
Applications
- Battery-powered equipment
- Smoke detector and sensor
- Microcontroller Applications
- Smart electric meter
Key features
- Ultra Low Quiescent Current: 2μA(Typ.)
- Wide Operating Voltage: VOUT + 1V to 30V
- High output current: ≥100mA
- System startup with no overshoot
- Short circuit protection is designed with no overshoot
- UVLO 1.8V
- Low Dropout Voltage
- High Accuracy Output Voltage: ±1%
- Excellent power / load transient response
- Low temperature coefficient: ±100ppm/°C
- Thermal and Short-Circuit Protection
- SOT-89、SOT-23 packages
- Customer Pin Assignments are available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SE8533X2-HF#C115016Seaward Elec · SOT-23 | Seaward Elec | SOT-23 | 22,910 | ₹24.52 · 22,910 in stock | View |
 | SE8733X2-HF#C969998Seaward Elec · SOT-23 | Seaward Elec | SOT-23 | 805 | ₹17.94 · 805 in stock | View |
