SGMICRO

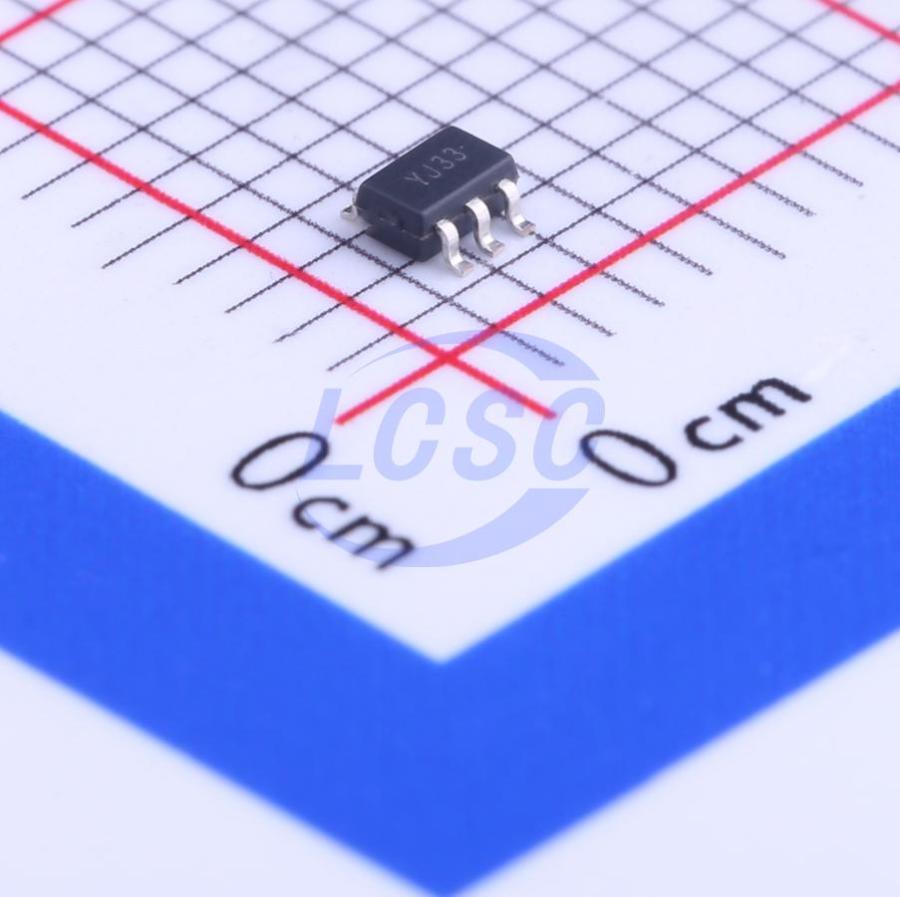

SGM2019-3.3YC5G/TR

3.3V Positive Fixed SC-70-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SC-70-5RoHSActive

Low Power, Low Dropout, RF-Linear Regulators

Manufacturer: SGMICRO
Manufacturer part #: SGM2019-3.3YC5G/TR
Store part #: C122713
Package / case: SC-70-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,870 in stock

#C122713

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹31.79	₹158.95
50+	₹23.75	₹1,187.50
150+	₹20.29	₹3,043.50
500+	₹15.98	₹7,990.00

Quantity (min 5, multiples of 5)

5 × ₹31.79

₹158.95

excl. GST

₹187.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM2019-3.3YC5G/TR

₹158.95 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 100uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 250mA
Features: Enable control;Noise bypass terminal;Over Current Protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

The SGM2019 series low-power, low-noise, low-dropout, CMOS linear voltage regulators operate from a 2.5V to 5.5V input voltage. They are the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The SGM2019 series also offer ultra low dropout voltage to prolong battery life in portable electronics. Systems requiring a quiet voltage source, such as RF applications, will benefit from the SGM2019 series’ ultra low output noise (30μV_RMS) and high PSRR. An external noise bypass capacitor connected to the device’s BP pin can further reduce the noise level. The output voltage is preset to voltages in the range of 1.2V to 5.0V. Other features include a 10nA logic-controlled shutdown mode, foldback current limit and thermal shutdown protection. The SGM2019 is available in Green SOT-23-5 and SC70-5 packages. It operates over an ambient temperature range of -40°C to +85°C.

Applications

Cellular Telephones
Cordless Telephones
PCMCIA Cards
Modems
MP3 Player
Hand-Held Instruments
Palmtop Computers
Electronic Planners
Portable/Battery-Powered Equipment

Key features

Low Output Noise
Low Dropout Voltage
Thermal-Overload Protection
Output Current Limit
High PSRR (74dB at 1kHz)
10nA Logic-Controlled Shutdown
Available in Multiple Output Voltage Versions: Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.6V, 2.8V, 2.85V, 3.0V and 3.3V
Adjustable Output from 1.2V to 5.0V
-40°C to +85°C Operating Temperature Range
Available in Green SC70-5 and SOT-23-5 Packages

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SGM2036S-3.3XC5G/TR#C5152673SGMICRO · SC-70-5	SGMICRO	SC-70-5	2,540	₹34.32 · 2,540 in stock	View
	SGM2036-3.3YC5G/TR#C132804SGMICRO · SC-70-5	SGMICRO	SC-70-5	4,445	₹34.56 · 4,445 in stock	View
