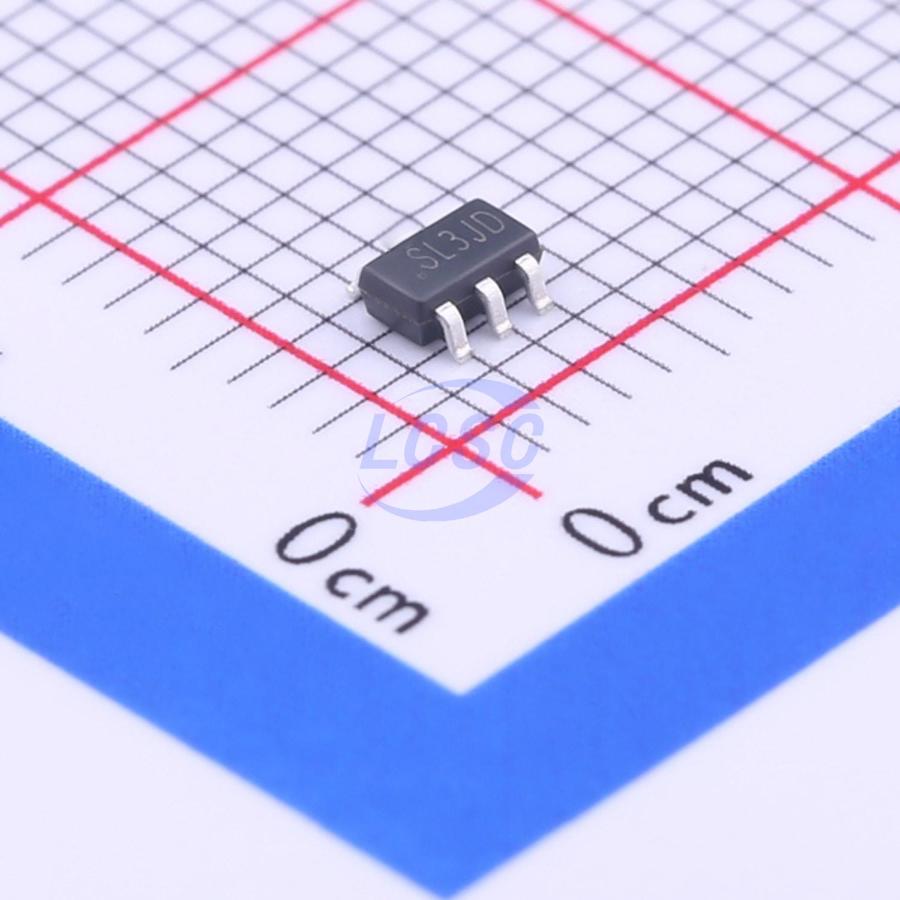

SGM4552YN6G/TR

1 SOT-23-6 Translators, Level Shifters

SOT-23-6RoHSActive

1-Bit Bidirectional Voltage-Level Translator for Open-Drain and Push-Pull Applications

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,928 in stock

#C398237

Stock & price checked 5 days ago

Quantity (min 1)

1 × ₹85.81

₹85.81

excl. GST

₹101.26 incl. 18% GST

SGM4552YN6G/TR

₹85.81 for 1 + GST

Specifications

output type: Tri-State
Interface: I2C;SMBus;UART
Operating Temperature: -40℃~+85℃
Channel Type: Bidirectional
Features: Automatic direction detection;Output enable high-impedance;Integrated pull-up resistor
Voltage - Supply: 1.65V~5.5V;2.3V~5.5V
Number of Circuits: 1

No Direction-Control Signal Needed
Data Rates 24Mbps (Push-Pull) 2Mbps (Open-Drain)
1.65V to 5.5V on A Port and 2.3V to 5.5V on B Port (VCCA ≤ VCCB)
For all CC: Isolation: If Either Vcc is at GND, Both Ports are in the High-Impedance State
No Power-Supply Sequencing Required: Either Vcca or VccB can be Ramped First
IOFF: Supports Partial-Power-Down Mode Operation
Available in Green UTDFN-1.45x1-6L, SOT-23-6 and SC70-6 Packages
