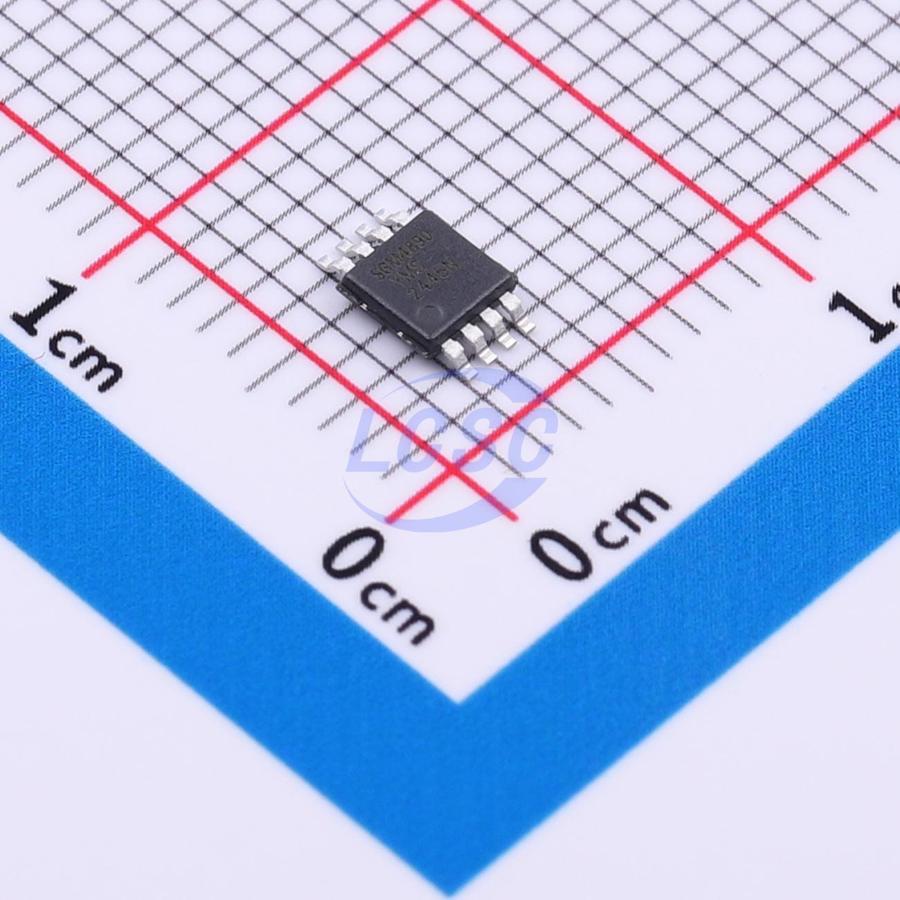

SGM4890YMS/TR
3.3mA 2.5V~5.5V MSOP-8 Audio Amplifiers RoHS
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM4890YMS/TR
- Store part #
- C3036282
- Package / case
- MSOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,166 in stock
#C3036282
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.81 | ₹85.81 |
| 10+ | ₹64.19 | ₹641.90 |
| 30+ | ₹54.90 | ₹1,647.00 |
| 100+ | ₹43.24 | ₹4,324.00 |
1 × ₹85.81
₹85.81
excl. GST
₹101.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SGM4890YMS/TR
₹85.81 for 1 + GST
Specifications
- Quiescent Current
- 3.3mA
- Voltage - Supply
- 2.5V~5.5V
- Total Harmonic Distortion + Noise (THD+N)
- 0.01%
- Features
- Enable/shutdown function;Analog voltage gain
- Operating Temperature
- -40℃~+85℃
- Power Supply Rejection Ratio (PSRR)
- -72dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The SGM4890 is a fully integrated audio power amplifier with an operating supply voltage range of 2.5V to 5.5V. At 1% THD+N with a 5V supply, it delivers 1.1W into an 8Ω BTL load. The amplifier is designed for portable applications requiring reduced component count. The SGM4890 features a low-power shutdown mode and thermal shutdown protection, making it suitable for low-power portable systems without output coupling capacitors or bootstrap capacitors. It also offers externally controlled gain (via resistors) and externally controlled turn-on time (via bypass capacitor) for maximum flexibility. The SGM4890 is available in a RoHS-compliant MSOP-8 package and operates over a -40℃ to +85℃ ambient temperature range.
Applications
- Mobile phones
- Televisions
- GPS
- Portable systems
Key features
- Supply voltage range: 2.5V to 5.5V
- 1.1W output power into 8Ω BTL load at 5V supply with THD+N = 1% (typical, per channel)
- Shutdown current: 0.01μA (typical)
- High PSRR
- Fast turn-on time
- Unity-gain stable
- Thermal shutdown protection
- Operating temperature range: -40℃ to +85℃
- RoHS-compliant MSOP-8 package
