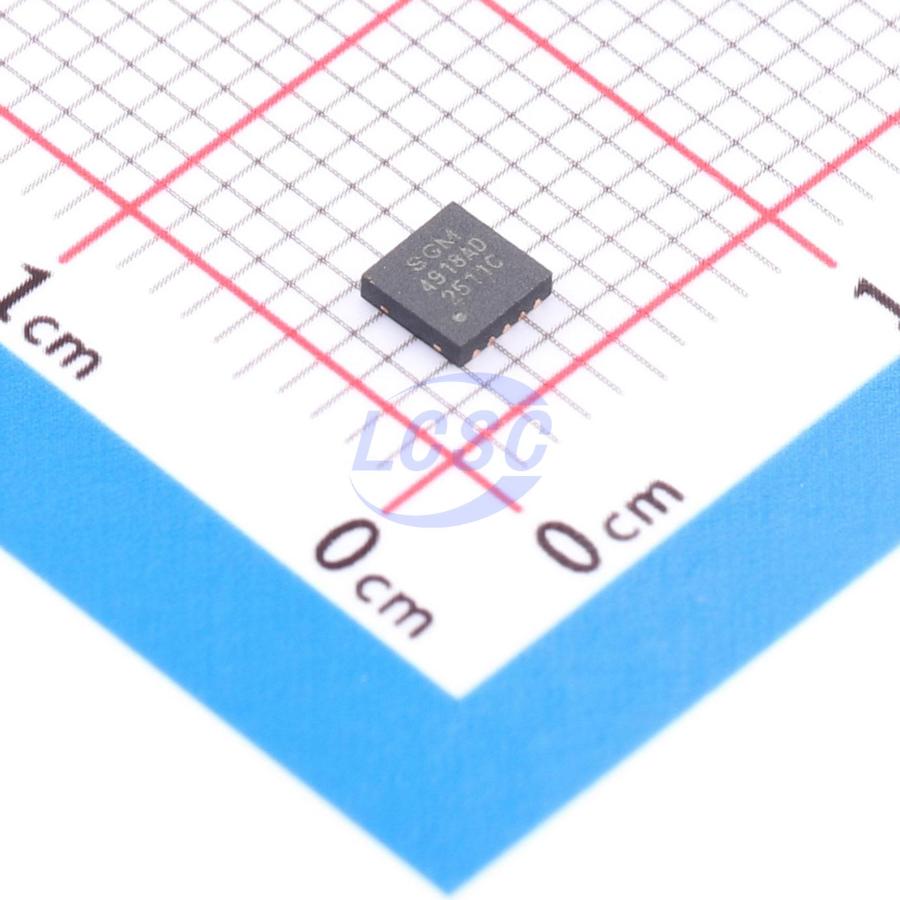

SGM4918AYD10G/TR

5.8mA 2.7V~5.1V 2-Channel 80mWx2@32Ω TDFN-10-EP(3x3) Audio Amplifiers

TDFN-10-EP(3x3)RoHSActive

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,548 in stock

#C2928094

Stock & price checked 33 h ago

Quantity (min 1)

1 × ₹120.59

₹120.59

excl. GST

₹142.30 incl. 18% GST

SGM4918AYD10G/TR

₹120.59 for 1 + GST

Specifications

The SGM4918 is stereo headphone amplifier which is designed for portable applications and can operate from a 2.7V to 5.1V single supply.
Capless design can produce a ground-referenced output from a single power supply, and can eliminate output DC-blocking capacitors for less-component height and low-cost.
For SGM4918B, the internal gain setting (-2V/V) is to further reduce component count.
For SGM4918A, the gain can be adjusted by external feedback resistors.
The SGM4918 has low quiescent current 5.8mA at 5V supply, low 0.03% THD+N, 80mW per channel into 32Ω load from 5V power supply at THD+N = 0.1%.
The high supply rejection ratio (PSRR) of -78dB at 217Hz allows the device to operate from noisy digital supplies without an additional linear regulator.
The device provides short-circuit and thermal-overload protections.
Build-in shutdown control also helps for pop/click-free on/off control.
Supply Voltage Range: 2.7V to 5.1V
SGM4918A: External Feedback Gain Network SGM4918B: Fixed -2V/V Gain
Capless Structure: Eliminates Ground-Referenced Outputs, Eliminates Output DC-Blocking Capacitors, Provides Flat Frequency Response
80mW into 32Ω Load from 5V Power Supply at THD+N = 0.1% (Typical, per Channel)
THD+N = 0.03% (f = 1kHz)
High PSRR: -78dB (at 217Hz)
Quiescent Current: 5.8mA (TYP)
Shutdown Control
Short-Circuit and Thermal-Overload Protections
Under-Voltage Lockout Function
-40°C to +85°C Operating Temperature Range
Available in a Green TQFN-3×3-10L Package
