SGM7SZ08YC5G/TR

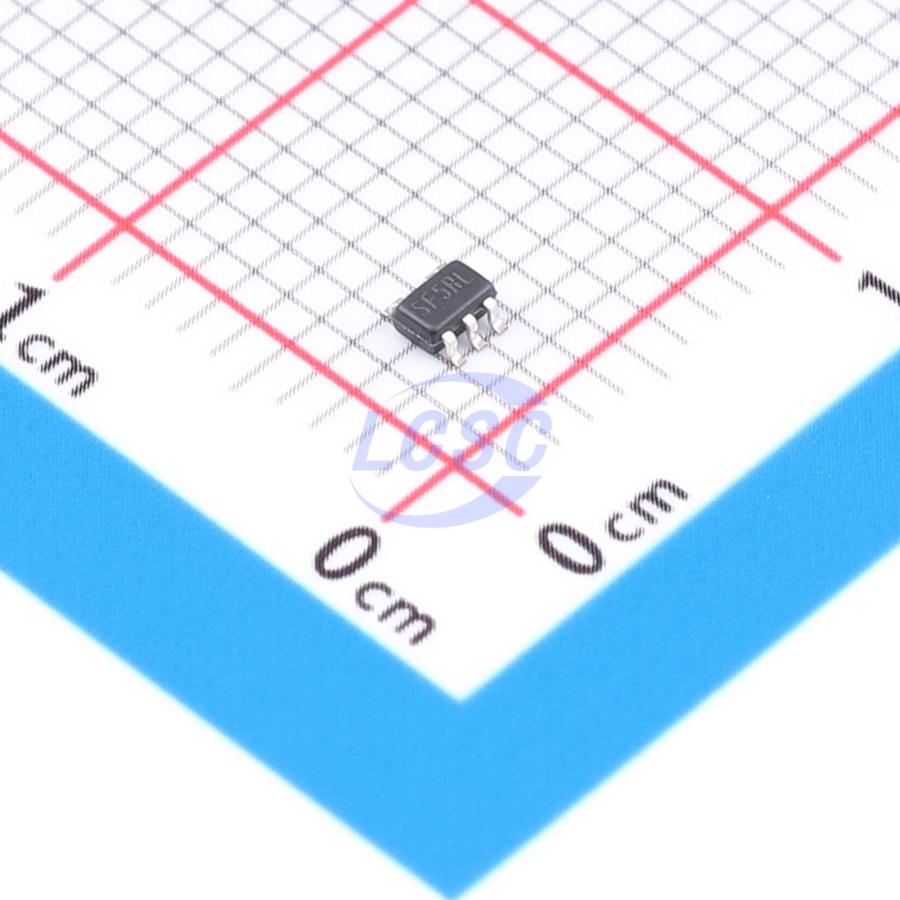

10uA 1.65V~5.5V 3.6ns@3.3V,50pF SC-70-5 Gates and Inverters
SC-70-5RoHSActive
Small Logic Two-Input AND Gate
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM7SZ08YC5G/TR
- Store part #
- C700332
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,580 in stock
#C700332
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.93 | ₹129.65 |
| 50+ | ₹19.36 | ₹968.00 |
| 150+ | ₹16.54 | ₹2,481.00 |
| 500+ | ₹13.03 | ₹6,515.00 |
5 × ₹25.93
₹129.65
excl. GST
₹152.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM7SZ08YC5G/TR
₹129.65 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.62V~1.65V;1.77V~1.8V;2.03V~2.18V;2.34V~2.81V;4.01V~4.2V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2;2
- Propagation Delay
- 3.6ns@3.3V,50pF
- Output Logic Level - Low
- 60mV~110mV;90mV~170mV;160mV~320mV;240mV~490mV;290mV~550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.092 g
Overview
The SGM7SZ08 is a single two-input AND with advanced CMOS technology. The supply voltage pin of this device accepts any voltage from 1.65V to 5.5V. The inputs can tolerate a maximum of 6V, regardless of the supply voltage range. When V_CC is at 0V, the inputs and output are in the high-impedance state. This device can achieve ultra-high speed operation with high output drive, while the low static power dissipation over the wide supply voltage operating range is maintained. The SGM7SZ08 is available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L and UTDFN-1.45×1.6L packages. It operates over an ambient temperature range of -40℃ to +85℃.
Key features
- Wide Supply Voltage Range: 1.65V to 5.5V
- Ultra-High Speed: Propagation delay time (t_PD) of 3.6ns (TYP) into 50pF at supply voltage (V_CC) = 3.3V
- Support LCX Performance at supply voltage (V_CC) = 3.3V
- High Output Drive: ±24mA at supply voltage (V_CC) = 3V
- Inputs Over-Voltage Tolerance Makes 5V to 3V Translation Available
- Power Down High-Impedance Inputs/Output
- Available in Green SOT-23-5, SC70-5, XTDFN-1x1-6L and UTDFN-1.45x1.6L Packages
