SGMICRODatasheet (PDF)

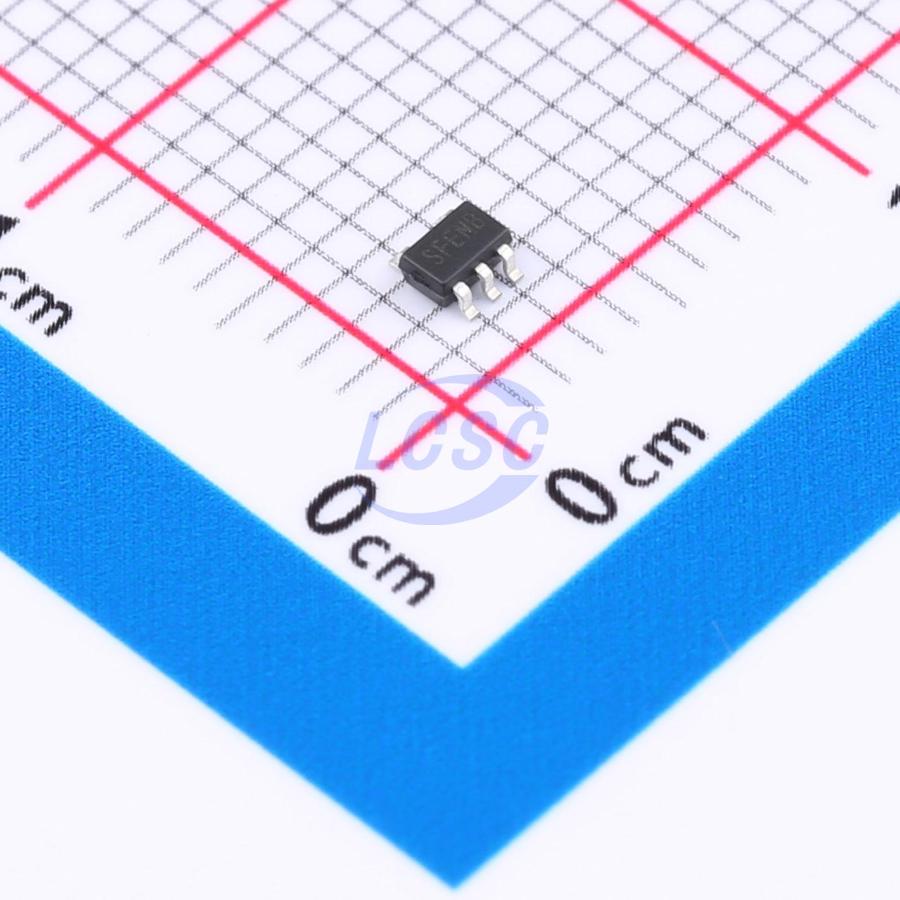

SGM7SZ125YC5G/TR
1.65V~5.5V 3.5ns@3.3V,50pF 10uA SC-70-5 Gates and Inverters
SC-70-5RoHSActive
Small Logic Buffer with Three-State Output
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM7SZ125YC5G/TR
- Store part #
- C700335
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,695 in stock
#C700335
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.82 | ₹129.10 |
| 50+ | ₹19.29 | ₹964.50 |
| 150+ | ₹16.48 | ₹2,472.00 |
| 500+ | ₹12.98 | ₹6,490.00 |
5 × ₹25.82
₹129.10
excl. GST
₹152.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM7SZ125YC5G/TR
₹129.10 for 5 + GST
Specifications
- output type
- Tri-State
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 320mV;490mV;550mV
- Propagation Delay
- 3.5ns@3.3V,50pF
- Features
- Local shutdown mode;Rear drive protection;Overvoltage-tolerant input;Controllable output enable
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 2.51V;2.34V;4.01V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;1
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The SGM7SZ125 is a single buffer with three-state output. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V, independent of VCC operating voltage. The output tolerates voltages above VCC when in the 3-state condition. The SGM7SZ125 is available in Green SOT-23-5 and SC70-5 packages. It operates over an ambient temperature range of -40°C to +85°C.
Key features
- Ultra-High Speed: tPD = 3.15ns (TYP) into 50pF at Vcc = 3.3V
- High Output Drive: ±24mA at VCC = 3V
- Broad Vcc Operating Range: 1.65V to 5.5V
- Matches Performance of LCX Operated at Vcc = 3.3V
- Power Down High-Impedance Inputs/Output
- Over-Voltage Tolerant Inputs Facilitate 5V to 3V Translation
- Available in Green SOT-23-5 and SC70-5 Packages
