SGMICRO

SGM7SZ32YN5G/TR

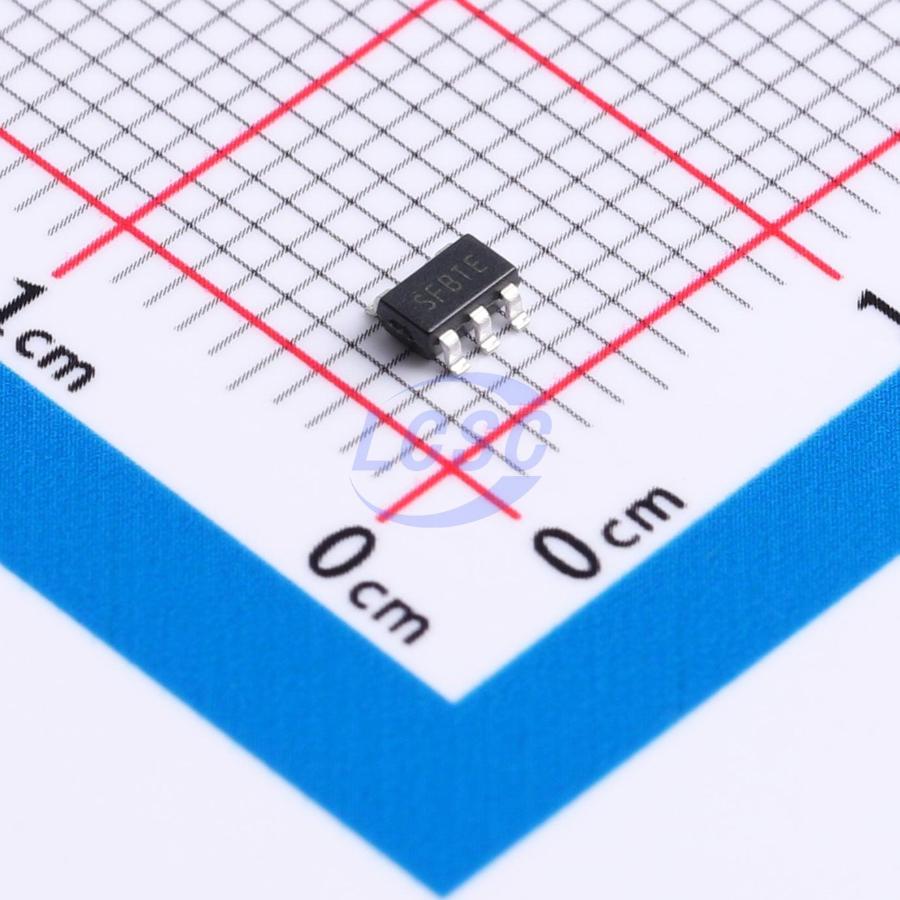

10uA 1.65V~5.5V 3.8ns@3.3V,50pF SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM7SZ32YN5G/TR
Store part #: C700341
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,535 in stock

#C700341

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹25.82	₹129.10
50+	₹19.29	₹964.50
150+	₹16.48	₹2,472.00
500+	₹12.98	₹6,490.00

Quantity (min 5, multiples of 5)

5 × ₹25.82

₹129.10

excl. GST

₹152.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM7SZ32YN5G/TR

₹129.10 for 5 + GST

Specifications

Features: Local shutdown mode;Overvoltage-tolerant input
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 1.62V~1.65V;2.34V~2.7V;4.47V~4.5V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Propagation Delay: 3.8ns@3.3V,50pF
Output Logic Level - Low: 20mV;490mV;550mV
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

The SGM7SZ32 is a single 2-input OR gate in SGMICRO's small logic family. Fabricated using advanced CMOS technology, this device delivers ultra-high speed and high output drive over a wide VCC operating range of 1.65V to 5.5V, while maintaining low quiescent current consumption. When VCC is 0V, the inputs and output are in a high-impedance state. Inputs can withstand voltages up to 6V, independent of the VCC operating voltage. The SGM7SZ32 is available in green SOT-23-5 and SC70-5 packages, with an operating ambient temperature range of -40°C to +85°C.

Key features

Ultra-high speed: propagation delay tPD = 3.8ns (typical) at VCC = 3.3V with 50pF load
High output drive: output current ±24mA at VCC = 3V
Wide VCC operating range: 1.65V to 5.5V
Performance matches LCX at VCC = 3.3V
Power-off input/output high-impedance state
Input overvoltage tolerance for 5V-to-3V level translation
Available in green SOT-23-5 and SC70-5 packages
