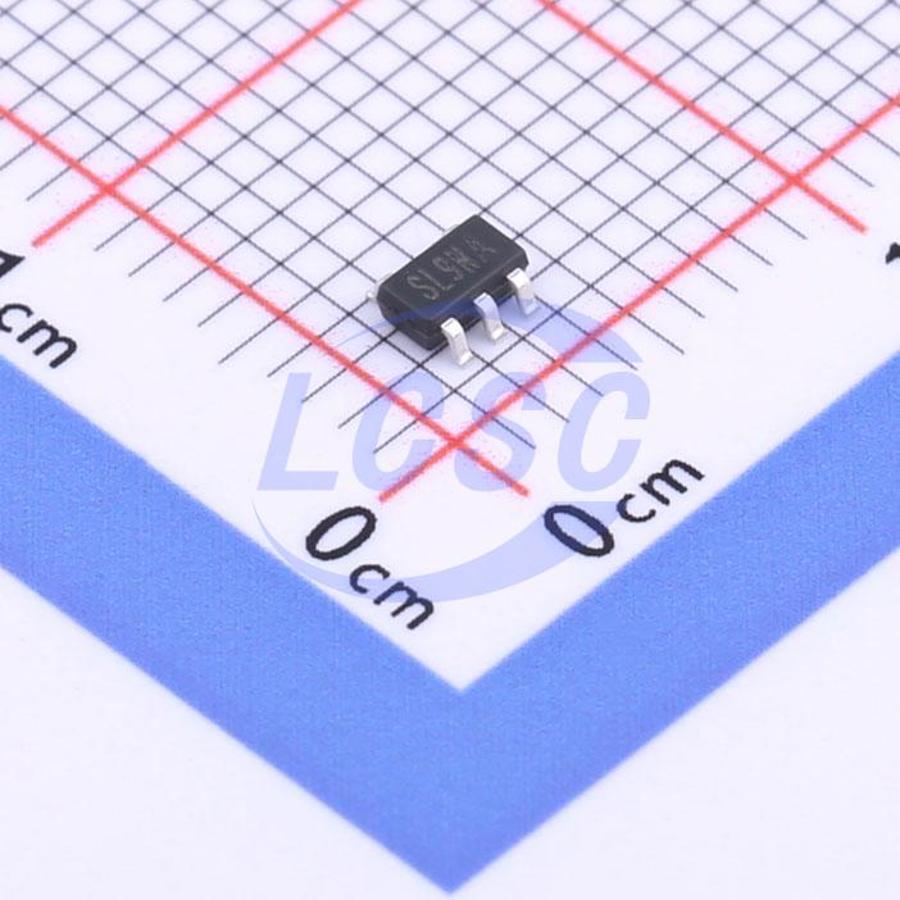

SGM8743YN5G/TR
Rail-to-rail input 800uV 1 SOT-23-5 Linear Comparators
6 ns, 3 V/5 V, single power supply, low power consumption, rail-to-rail I/O comparator
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM8743YN5G/TR
- Store part #
- C700071
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,794 in stock
#C700071
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹200.34 | ₹200.34 |
| 10+ | ₹160.02 | ₹1,600.20 |
| 30+ | ₹137.68 | ₹4,130.40 |
| 100+ | ₹112.53 | ₹11,253.00 |
1 × ₹200.34
₹200.34
excl. GST
₹236.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM8743YN5G/TR
₹200.34 for 1 + GST
Specifications
- Features
- Built-in hysteresis;Fail-safe function
- Input Hysteresis Voltage (Vhys)
- 3mV
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-rail input
- Common Mode Rejection Ratio(CMRR)
- 77dB
- Vos - Input Offset Voltage
- 800uV
- Quiescent Current
- 1.3mA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 6ns
- Number of Channels
- 1
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The SGM8743 is a single, high speed, low power comparator, which features a fast 6ns propagation delay. The device is optimized for low voltage operation on 3V or 5V supply, and consumes only 1.3mA supply current. The SGM8743 supports rail-to-rail input and output operation. The input common mode voltage range is from - 0.1V to (+VS) + 0.1V, and the output voltage swing is within 0.2V of the rails without external pull-up or pull-down resistor. The device can be compatible with CMOS and TTL logics. Any input or output pin has a continuous short-circuit protection to both power supply rails. The SGM8743 has an internal hysteresis for reducing comparator sensitivity to noise, even when the input signals move slowly. The SGM8743 is available in Green SOT-23-5 and SC70-5 packages. It is rated over the - 40°C to +85°C temperature range.
Applications
- 3V or 5V Applications
- Portable/Battery-Powered Equipment
- Mobile Phones
- Zero-Crossing Detectors
- Threshold Detectors
- Line Receiver Units
Key features
- High Speed: 6ns Propagation Delay (100mV Overdrive)
- Low Supply Current: 1.3mA (TYP) at VS = 3V
- Low Offset Voltage: 0.8mV (TYP)
- Rail-to-Rail Input and Output
- Supply Voltage Range: 2.7V to 5.5V
- Optimized for 3V and 5V Applications
- Output Swing to within 195mV from Rails with 4mA Output Current
- Supports CMOS or TTL Logic
- Internal Hysteresis for Reducing Comparator Sensitivity to Noise
- - 40°C to +85°C Operating Temperature Range
- Available in Green SOT-23-5 and SC70-5 Packages
