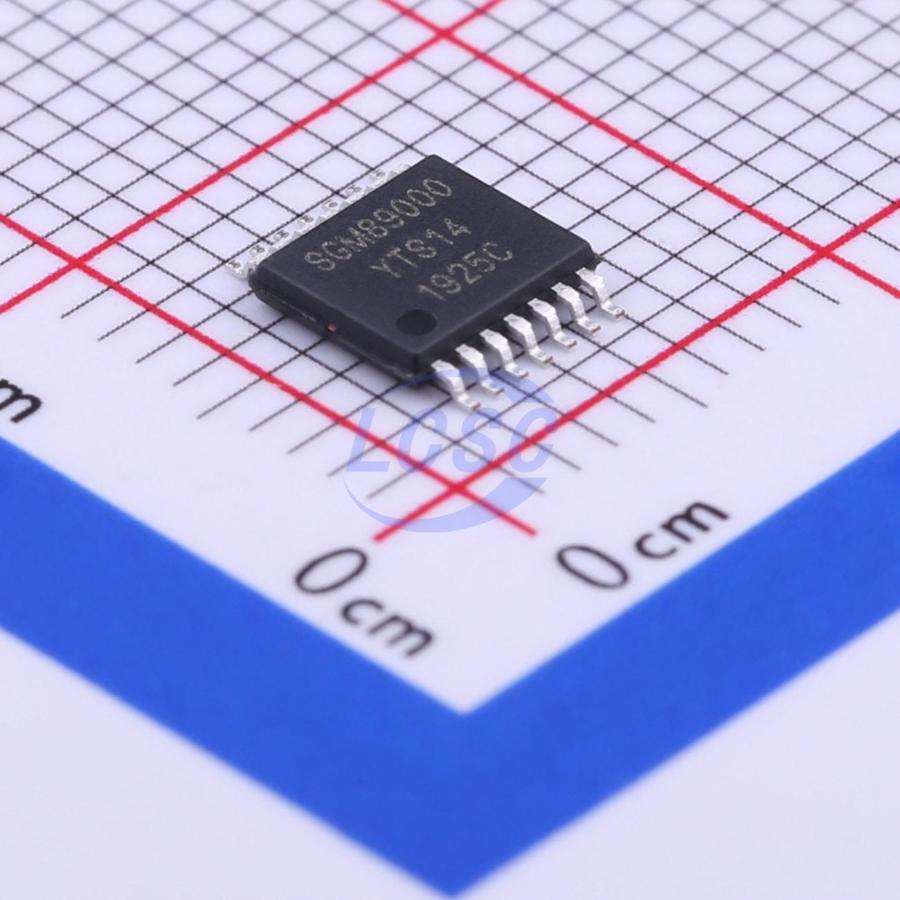

SGMICRO

SGM89000YTS14G/TR

3V~3.6V 10.5mA 2-Channel Class AB TSSOP-14 Audio Amplifiers RoHS

TSSOP-14ROHS CompliantActive

Manufacturer: SGMICRO
Manufacturer part #: SGM89000YTS14G/TR
Store part #: C403704
Package / case: TSSOP-14
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,673 in stock

#C403704

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹94.24	₹94.24
10+	₹72.41	₹724.10
30+	₹63.11	₹1,893.30
100+	₹51.44	₹5,144.00
500+	₹46.25	₹23,125.00
1,000+	₹43.24	₹43,240.00

Quantity (min 1)

1 × ₹94.24

₹94.24

excl. GST

₹111.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM89000YTS14G/TR

₹94.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3V~3.6V
Quiescent Current: 10.5mA
Total Harmonic Distortion + Noise (THD+N): 0.001%
Features: Automatic mute/no-noise switch;Enable/shutdown function
Operating Temperature: -40℃~+85℃
Signal-to-Noise Ratio: 114dB
Number of Inputs: 2 Pairs Differential Inputs
Speaker Channels: 2-Channel
Class: Class AB
Power Supply Rejection Ratio (PSRR): 97dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.16 g

Overview

The SGM89000 is a 2Vrms pop/click-free stereo line driver. The device is designed for single-supply applications. The capacitor-free design eliminates output DC-blocking capacitors, reducing component count and cost. The device features differential inputs and can drive a 2Vrms signal into a 2.5kΩ load at a 3.3V supply voltage. The integrated shutdown control also enables pop/click-free switching. Users can set the gain between ±1V/V and ±10V/V via external gain-setting resistors, which can also be used to implement a second-order low-pass filter for use with SOC and DAC converters. The SGM89000 requires no negative supply. Its integrated charge pump generates the negative supply rail needed for 2Vrms output, providing a clean, pop/click-free ground-level offset. The device is available in a green TSSOP-14 package and operates over an ambient temperature range of -40°C to +85°C.

Applications

LCD TV
Set-top box
Home theater
Blu-ray DVD player

Key features

Supply voltage range: 3V to 5.5V
Drives 2Vrms into 2.5kΩ load at 3.3V supply
Capless architecture eliminates output DC-blocking capacitors, providing flat frequency response
Differential input
Low noise and low THD: typical SNR 114dB, typical noise voltage 5.5μV rms, typical THD+N 0.001%
Operating temperature range: -40°C to +85°C
Green TSSOP-14 package
