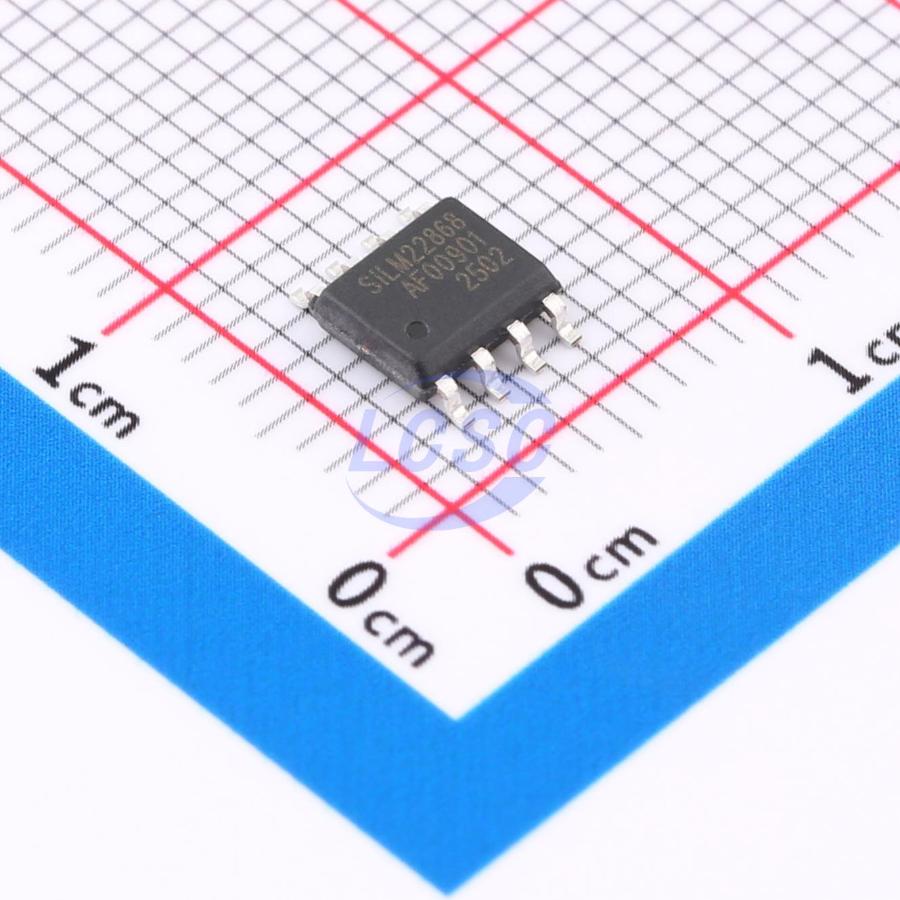

SiLM22868CA-DG
7V~20V 4A 4A SOP-8 Gate Drivers
- Manufacturer
- Sillumin
- Manufacturer part #
- SiLM22868CA-DG
- Store part #
- C49274308
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,589 in stock
#C49274308
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.77 | ₹69.77 |
| 10+ | ₹56.07 | ₹560.70 |
| 30+ | ₹49.21 | ₹1,476.30 |
| 100+ | ₹42.55 | ₹4,255.00 |
| 500+ | ₹38.40 | ₹19,200.00 |
| 1,000+ | ₹36.42 | ₹36,420.00 |
1 × ₹69.77
₹69.77
excl. GST
₹82.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SiLM22868CA-DG
₹69.77 for 1 + GST
Specifications
- Input Logic Level - Low
- 1.5V
- Low Level Delay Time
- 170ns
- High Level Delay Time
- 170ns
- Quiescent Current
- 170uA
- Input Logic Level - High
- 1.6V
- Voltage - Supply
- 7V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 20ns
- Fall Time
- 15ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
SiLM22868 is a high-voltage, high-speed power MOSFET and IGBT driver featuring independent high-side and low-side referenced output channels. It employs proprietary high-voltage IC and latch-up immune CMOS technology to achieve a robust monolithic architecture. Logic inputs are compatible with standard CMOS or LSTTL outputs, with logic levels as low as 3.3V. The output driver stage features high pulse current buffer stages designed to minimize cross-conduction in the driver. Matched propagation delays simplify use in high-frequency applications. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in a high-side configuration with operating voltages up to 600V.
Key features
- Floating channel designed for bootstrap operation
- Full operational voltage up to +600V
- Low VCC operation
- Tolerant of negative transient voltage, immune to dV/dt noise
- Gate drive supply range 7V to 20V
- Dual-channel undervoltage lockout
- Compatible with 3.3V and 5V logic
- Cross-conduction prevention logic
- CMOS Schmitt-triggered inputs with pull-down
- Matched propagation delay for dual channels
- Output in-phase with input
- RoHS compliant
- SOP8 package
