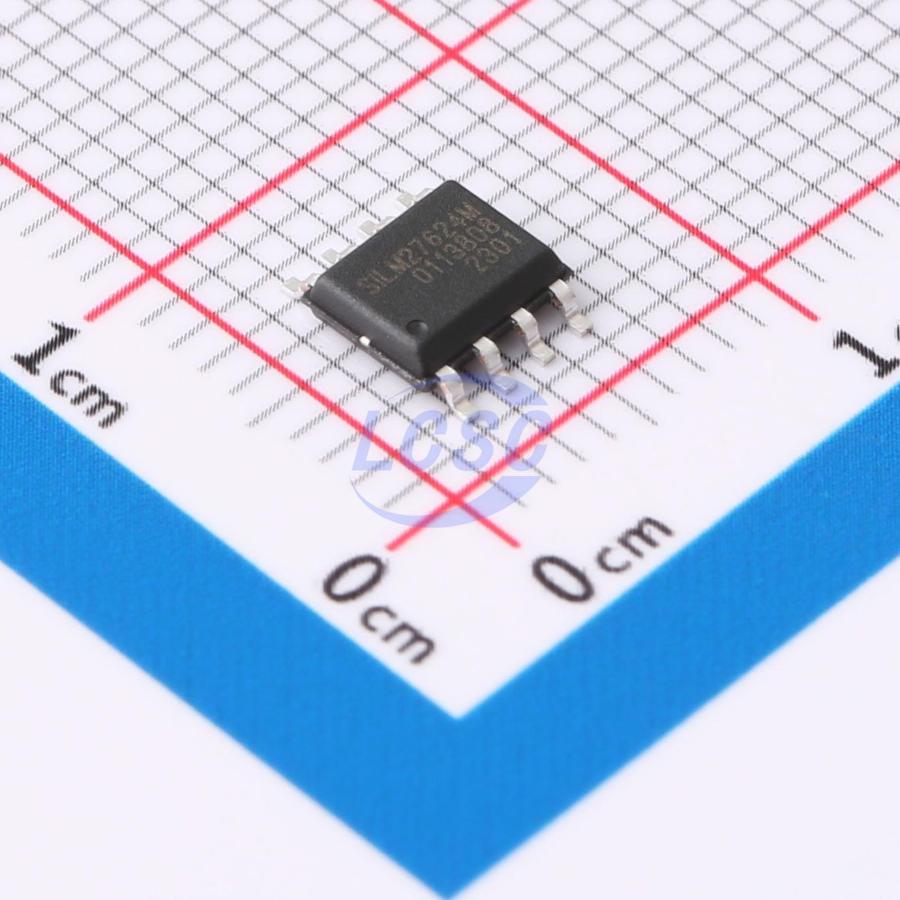

SiLM27624MCA-DG
4.5V~30V 5A 5A SOP8 Gate Drivers
Dual-Channel Low-Side Gate Driver
- Manufacturer
- Sillumin
- Manufacturer part #
- SiLM27624MCA-DG
- Store part #
- C7419945
- Package / case
- SOP8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,045 in stock
#C7419945
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.02 | ₹195.10 |
| 50+ | ₹30.22 | ₹1,511.00 |
| 150+ | ₹26.45 | ₹3,967.50 |
| 500+ | ₹23.66 | ₹11,830.00 |
| 2,500+ | ₹21.56 | ₹53,900.00 |
| 5,000+ | ₹20.31 | ₹1,01,550.00 |
5 × ₹39.02
₹195.10
excl. GST
₹230.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SiLM27624MCA-DG
₹195.10 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.2V
- Input Logic Level - High
- 1.8V~2.3V
- Voltage - Supply
- 4.5V~30V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 5A
- Rise Time
- 7ns
- Fall Time
- 6ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.259 g
Overview
The SiLM27624 is a dual-channel, high-speed, lowside gate drivers that can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SiLM27624 can source and sink high peak-current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 20ns. The SiLM27624 provides 5.0 A source, 5.0 A sink peak-drive current capability at 12V VDD supply.
Applications
- Switching mode power supplies
- DC-to-DC converters
- Motor Control, solar power
- Gate drive for emerging wide band-gap power devices such as GaN
Key features
- Two independent gate drive channels
- 5.0 A peak source and 5.0 A peak sink current drive capability
- Fast propagation delay (20ns typical)
- Fast rise and fall time (7ns and 6ns typical)
- 4.5 to 30V single supply range
- Under-voltage lockout
- TTL and CMOS compatible input logic threshold
- Ability to handle negative voltages (-5V) at inputs
- 2ns delay matching between two channels
- Two outputs are paralleled for higher drive current
- Outputs held in low when inputs floating
- Operating temperature range of -40°C to 150°C
- SOP8 and MSOP8-EP package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SiLM27624LCA-DG#C49329025Sillumin · SOP-8 | Sillumin | SOP-8 | On request | ₹34.58 · 0 in stock | View |
