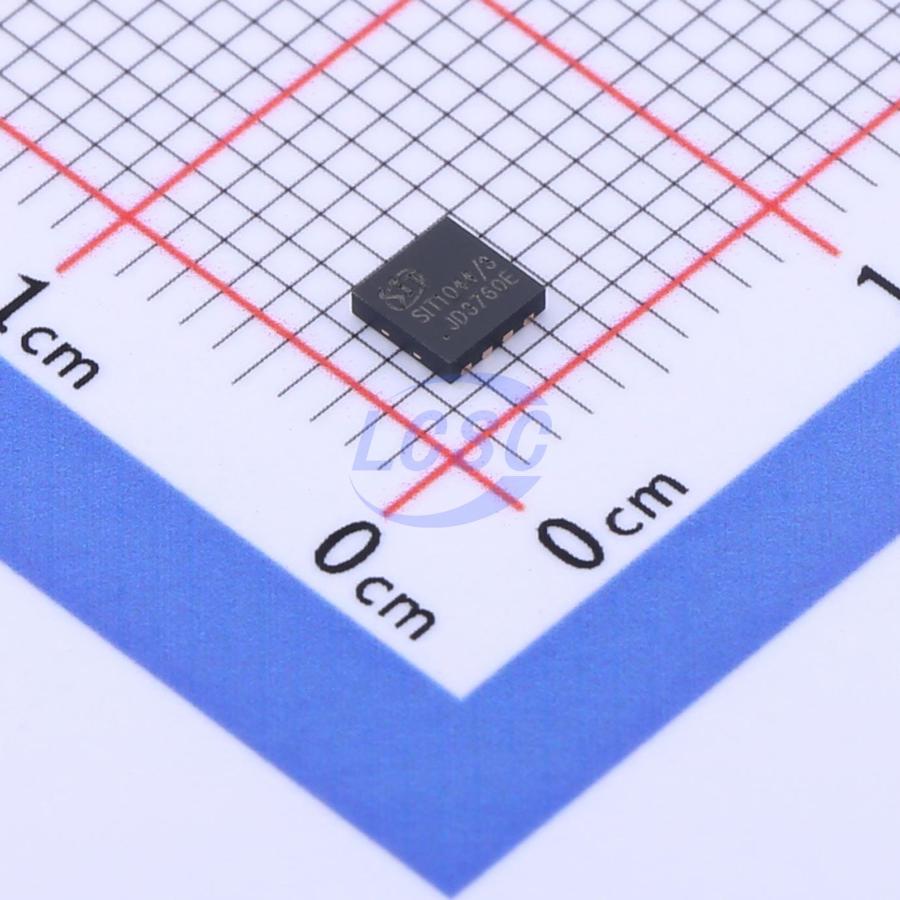

SIT1044TK/3
CAN FD Transceiver 4.75V~5.25V 5Mbps TDFN-8-EP(3x3) Drivers, Receivers, Transceivers RoHS
TDFN-8-EP(3x3)ROHS CompliantActive
5Mbps (CANFD) bus transceiver in standby mode
- Manufacturer
- SIT
- Manufacturer part #
- SIT1044TK/3
- Store part #
- C2972660
- Package / case
- TDFN-8-EP(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,055 in stock
#C2972660
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.83 | ₹57.83 |
| 10+ | ₹46.44 | ₹464.40 |
| 30+ | ₹41.49 | ₹1,244.70 |
| 100+ | ₹35.47 | ₹3,547.00 |
| 500+ | ₹32.68 | ₹16,340.00 |
| 1,000+ | ₹30.96 | ₹30,960.00 |
1 × ₹57.83
₹57.83
excl. GST
₹68.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIT1044TK/3
₹57.83 for 1 + GST
Specifications
- Type
- CAN FD Transceiver
- Voltage - Supply
- 4.75V~5.25V
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Wake-up function;TXD dominant timeout;Thermal shutdown protection;Undervoltage Protection;ESD protection
- Supply Current
- 70mA
- Quiescent Supply Current
- 5uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
SIT1044 is an interface chip used between the CAN protocol controller and the physical bus. It can be used in vehicle, industrial control and other fields. It supports 5Mbps (CAN FD) flexible data rate, and has a connection between the bus and the CAN protocol controller. The ability to perform differential signal transmission between the bus and the CAN protocol controller.
Key features
- Fully compatible with the ISO 11898 standard
- Thermally protected
- ±40V BUS protection
- Transmit Data (TXD) dominant time-out function
- Low-power standby mode with wake-up function
- SIT1044T/3 and SIT1044TK/3 can be interfaced directly to microcontrollers with supply voltages from 3.3V to 5V
- Under-voltage protection
- Timing guaranteed for data rates up to 5 Mbps in the (CAN FD) fast phase
- Very low ElectroMagnetic Emission (EME)
- Transceiver in unpowered state disengages from the bus (zero load)
- The typical loop delay from TXD to RXD is less than 100ns
- Provide SOP8 and DFN3*3 - 8/HVSON8 packages
- Provide Green and Environmentally Friendly Lead-free package
