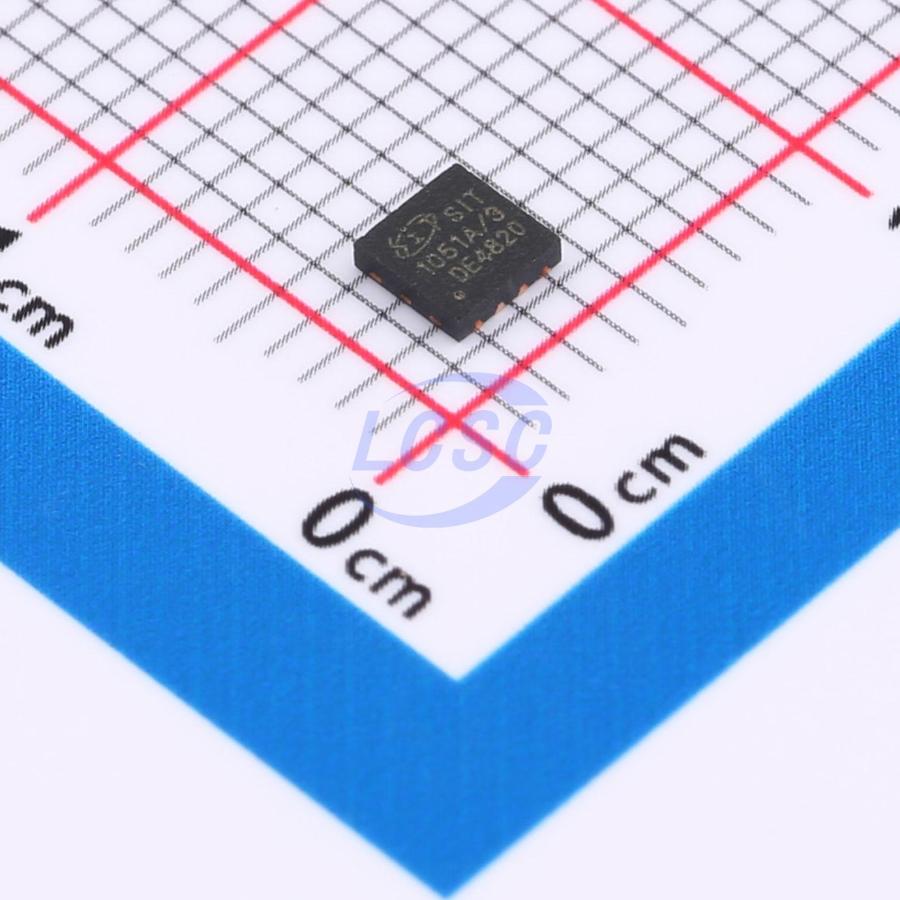

SIT1051ATK/3
4.5V~5.5V CAN FD Transceiver 5Mbps DFN-8(3x3) Drivers, Receivers, Transceivers RoHS
DFN-8(3x3)ROHS CompliantActive
SIT1051A CAN FD Silent Mode Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT1051ATK/3
- Store part #
- C5382552
- Package / case
- DFN-8(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,712 in stock
#C5382552
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.66 | ₹68.66 |
| 10+ | ₹54.76 | ₹547.60 |
| 30+ | ₹48.67 | ₹1,460.10 |
| 100+ | ₹41.29 | ₹4,129.00 |
| 500+ | ₹38.04 | ₹19,020.00 |
| 1,000+ | ₹35.85 | ₹35,850.00 |
1 × ₹68.66
₹68.66
excl. GST
₹81.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
SIT1051ATK/3
₹68.66 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN FD Transceiver
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+150℃
- Features
- Low-power mode;Thermal shutdown protection;TXD dominant timeout;Silent mode;Undervoltage Protection;Short-Circuit Protection;ESD protection
- Supply Current
- 70mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.052 g
Overview
The SIT1051A is an interface chip designed for use between CAN protocol controllers and physical buses. It is suitable for applications in trucks, buses, passenger vehicles, industrial control, and other fields. Supporting CAN FD at flexible data rates up to 5Mbps, it provides differential signal transmission capability between the bus and CAN protocol controllers. The SIT1051A is an upgraded version of the SIT1051, featuring improved bus signal symmetry and lower EMI performance. In addition, the SIT1051A is fully compatible with the SIT1051.
Applications
- Truck
- Bus
- Passenger Car
- Industrial Control
Key features
- Fully compliant with ISO 11898 standard
- Built-in over-temperature protection
- Bus port ±70V voltage tolerance
- Driver (TXD) dominant state timeout
- Silent receive mode
- SIT1051AT/E features low-power shutdown mode
- SIT1051AT/3 I/O voltage range supports 3.3V and 5V MCU
- Undervoltage lockout on VCC and VIO supply pins
- High-speed CAN, supports 5Mbps CAN FD flexible data rate
- TXD to RXD typical loop delay less than 100ns
- High EMI immunity
- Unpowered node does not disturb the bus
- Supports DFN3*3–8 small-outline leadless package
- RoHS-compliant lead-free package available
