SITDatasheet (PDF)

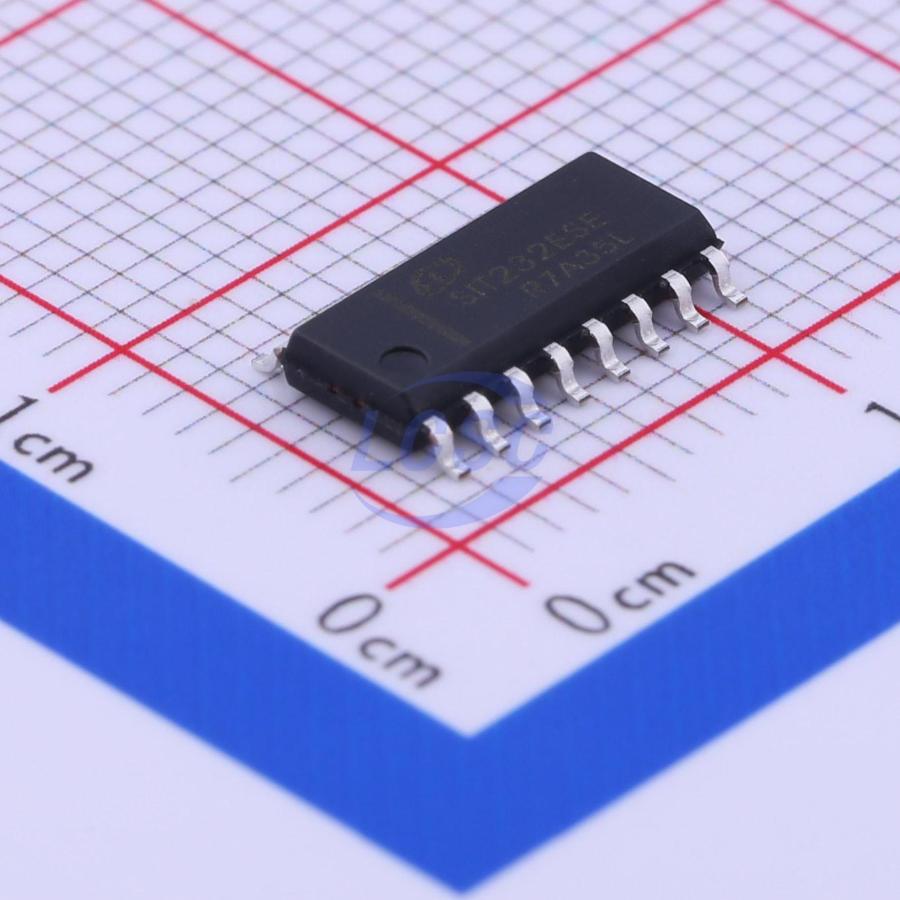

SIT232ESE
4.5V~5.5V Transceiver 120Kbps SO-16 Drivers, Receivers, Transceivers RoHS
SO-16ROHS CompliantActive
5V Single Supply Dual Channel RS232 Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT232ESE
- Store part #
- C313016
- Package / case
- SO-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C313016
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.88 | ₹78.88 |
| 10+ | ₹63.01 | ₹630.10 |
| 30+ | ₹56.28 | ₹1,688.40 |
| 100+ | ₹47.81 | ₹4,781.00 |
| 500+ | ₹43.90 | ₹21,950.00 |
| 1,000+ | ₹41.73 | ₹41,730.00 |
1 × ₹78.88
₹78.88
excl. GST
₹93.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT232ESE
₹78.88 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
SIT232 is a 5V single-supply, dual-channel, low-power RS-232 transceiver that fully complies with TIA/EIA-232 standard requirements. The SIT232 includes two drivers and two receivers, all of which can be used independently. The receivers convert RS-232 signals to CMOS logic output levels. EIA/TIA-232E defines voltages greater than 3V as logic 0. All receivers in the SIT232 are inverting, so the receiver response to TTL levels is consistent with EIA/TIA-232E levels. Operating from a 5V supply, the charge pump requires only four external 1uF capacitors, achieving error-free data transmission at rates of at least 120Kbps. Both drivers and receivers can be independently enabled and disabled, with each driver and receiver channel usable independently.
Key features
- 5V±10% power supply
- Dual channel
- 120kbps data rate
- Driver input compatible with TTL/CMOS logic levels, RS232 output compatible with TTL level input circuits
- Receiver input impedance minimum 3KΩ
- RoHS-compliant lead-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIT202EESE#C382674SIT · SOP-16 | SIT | SOP-16 | 1 | ₹78.81 · 1 in stock | View |
