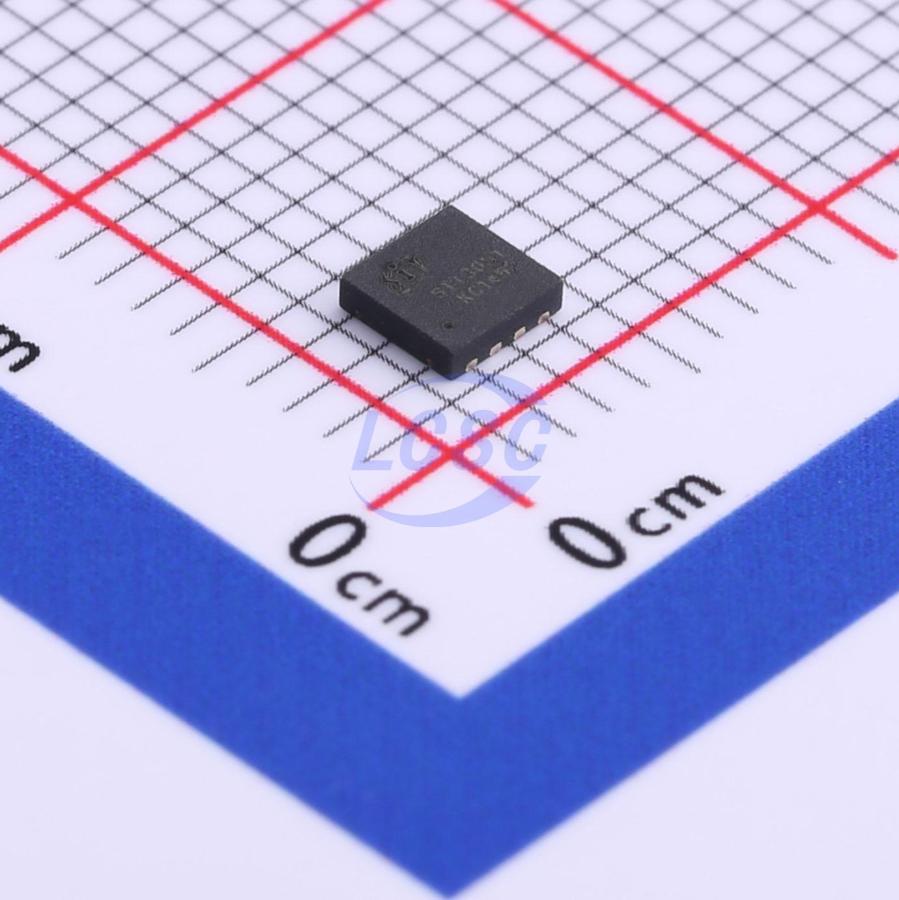

SIT3051TK

SIT3051 is an interface IC designed for use between a CAN protocol controller and the physical bus. It works with 3.3V microprocessors, MCUs, and DSPs with integrated CAN controllers, or equivalent protocol controllers. The device features four operating modes: high-speed, slope control, standby, and low-current shutdown, with a common-mode range of -7V to +12V. It is suitable for industrial automation, control, sensors and drive systems, motor and robotics control, building and temperature control, as well as telecommunications and base station control and status monitoring applications. The data rate reaches up to 1Mbps and is compliant with the ISO 11898 standard.

Applications

• Industrial automation, control, sensors, and drive systems
• Motor and robotics control
• Building and temperature control
• Telecommunications and base station control & status

Key features

• Single 3.3V supply operation
• Common-mode range exceeding ISO 11898 standard: -7V ~ +12V
• Bus pin ESD protection exceeding ±12kV HBM
• Adjustable driver slew rate for improved radiated emissions performance
• Four operating modes: high-speed, slope control, standby, and low-current shutdown, with low-current shutdown mode as low as 1uA
• Designed for data rates up to 1Mbps
• Thermal shutdown protection
• Open-circuit fail-safe design
• Glitch-free power-up and power-down protection for hot-plug applications
• RoHS-compliant lead-free package
