SIT

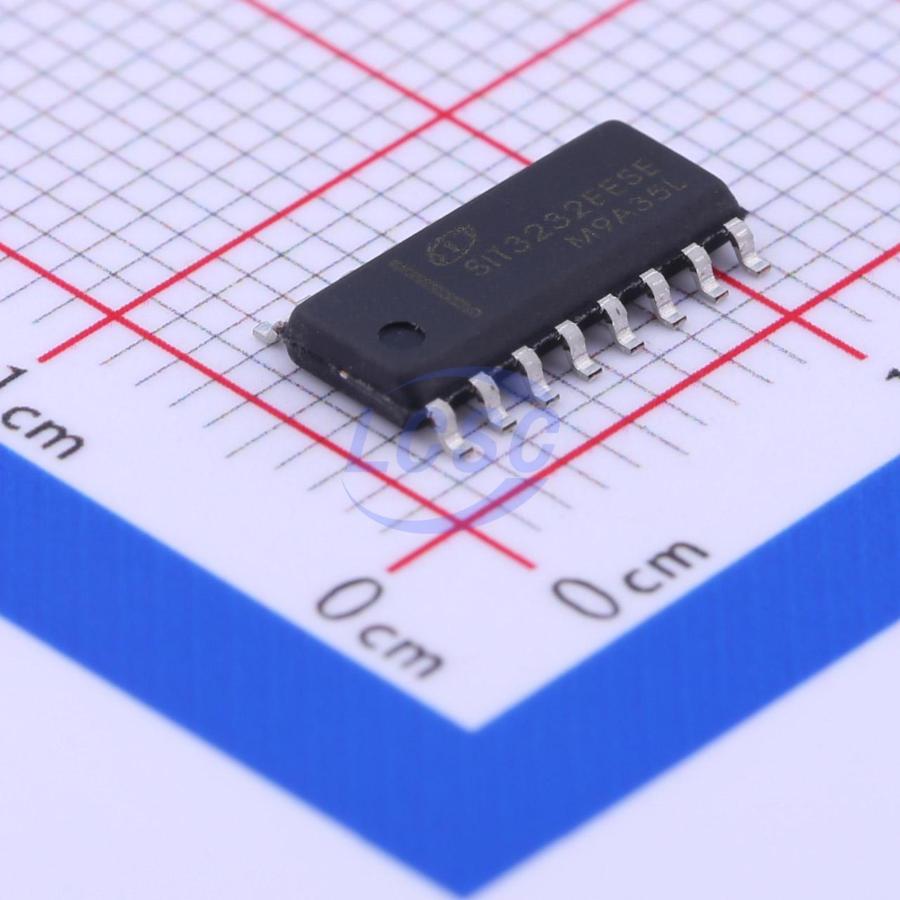

SIT3232EESE

Transceiver 3V~5.5V 120Kbps SOP-16 Drivers, Receivers, Transceivers RoHS

SOP-16ROHS CompliantActive

High ESD-Protected 3.3V Dual-Channel RS232 transceiver

Manufacturer: SIT
Manufacturer part #: SIT3232EESE
Store part #: C313017
Package / case: SOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

990 in stock

#C313017

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹50.99	₹254.95
50+	₹39.54	₹1,977.00
150+	₹34.64	₹5,196.00
500+	₹31.62	₹15,810.00
2,500+	₹28.89	₹72,225.00
5,000+	₹27.25	₹1,36,250.00

Quantity (min 5, multiples of 5)

5 × ₹50.99

₹254.95

excl. GST

₹300.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SIT3232EESE

₹254.95 for 5 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 120Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.22 g

Overview

SIT3232E is a 3.3V-power-supply, dual-channel, high ESD-protected, low-power RS-232 transceiver that fully meets the requirements of the TIA/EIA-232 standard. SIT3232E includes two drives and two receivers, with enhanced ESD protection function, reaching the protection capacity of HBM ESD above 15kV and 8kV IEC-4100-4-2 contact discharge. Powered by 3.3V power supply, The charge pump requires only four 1μF external capacitance to work at a rate of at least 120Kbps error-free data transmission, both of which can be independently enabled and closed. Each driver and receiver can be used independently.
