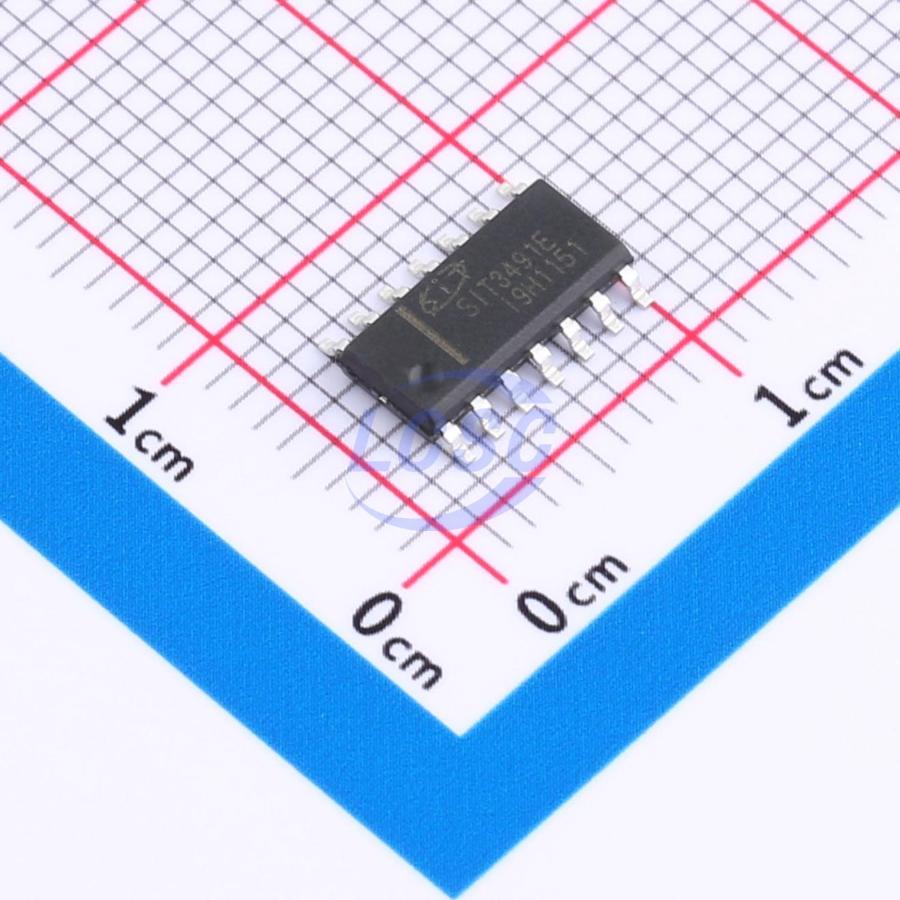

SIT3491EESD
3V~5.5V Transceiver 12Mbps 256 SOP-14 Drivers, Receivers, Transceivers RoHS
SOP-14ROHS CompliantActive
3V~5.5V Power Supply, 256 Nodes, 12Mbps Full-Duplex RS485/RS422 Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT3491EESD
- Store part #
- C496617
- Package / case
- SOP-14
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,151 in stock
#C496617
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.62 | ₹70.62 |
| 10+ | ₹55.84 | ₹558.40 |
| 30+ | ₹49.55 | ₹1,486.50 |
| 100+ | ₹41.73 | ₹4,173.00 |
| 500+ | ₹40.85 | ₹20,425.00 |
| 1,000+ | ₹38.90 | ₹38,900.00 |
1 × ₹70.62
₹70.62
excl. GST
₹83.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT3491EESD
₹70.62 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 12Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Full-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 240uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.172 g
Overview
SIT3491E is a 3.0V ~ 5.5V powered, full-duplex, low power dissipation RS-485 transceiver fully meeting the requirements of RS-485 & RS-422 standard. SIT3491E contains one driver and one receiver, both can transmit signals independently. The SIT3491E has a 1/8-unit-load. It allows up to 256 transceivers on the bus and error-free data transmission up to 12Mbps. SIT3491E has a working voltage range of 3.0V ~ 5.5V, with the functions of fail-safe, current-limiting protection, over-voltage protection, etc. SIT3491E has excellent ESD release capability, and HBM reaches ±15kV.
Key features
- 3.0V~5.5V supply
- full-duplex 1/8 unit load
- allow up to 256 transceivers on the bus
- Driver short-circuit output protection
- Strong anti-noise ability
- Integrated transient voltage suppression function
- The data transmission rate up to 12Mbps in electric noise environment
- ESD protection for RS-485 I/O Pins ±15kV, HBM
- Provide green and environmentally friendly lead-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIT491EESD#C698186SIT · SOP-14 | SIT | SOP-14 | 610 | ₹53.91 · 610 in stock | View |
