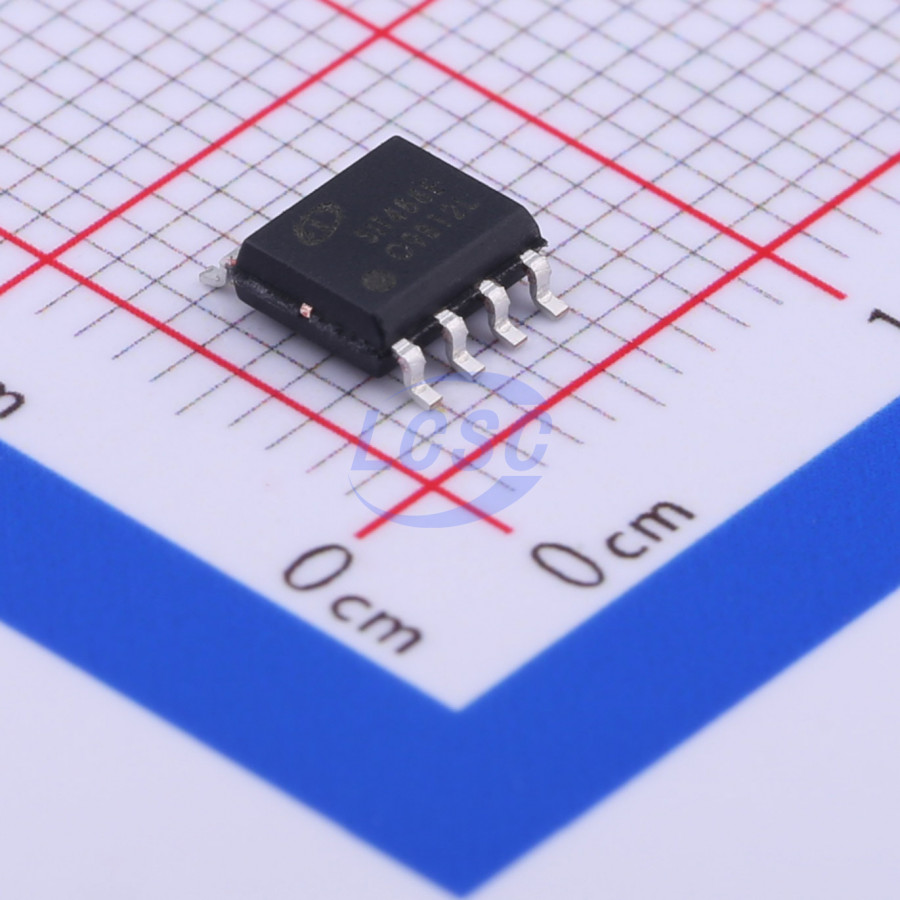

SIT488EESA
4.5V~5.5V Transceiver 1Mbps 256 SO-8 Drivers, Receivers, Transceivers RoHS
SO-8ROHS CompliantActive
5V High ESD Protection, 1Mbps Full-Duplex RS485/RS422 Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT488EESA
- Store part #
- C382669
- Package / case
- SO-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,368 in stock
#C382669
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.36 | ₹60.36 |
| 10+ | ₹48.50 | ₹485.00 |
| 30+ | ₹43.33 | ₹1,299.90 |
| 100+ | ₹37.07 | ₹3,707.00 |
| 500+ | ₹34.05 | ₹17,025.00 |
| 1,000+ | ₹32.33 | ₹32,330.00 |
1 × ₹60.36
₹60.36
excl. GST
₹71.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT488EESA
₹60.36 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Full-Duplex
- Number of Drivers
- 1
- Features
- Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 250uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
SIT488E is a 5V power supply, full-duplex, low power RS485 transceiver which is fully compliant with the TIA/EIA-485 standard. SIT488E includes a driver and a receiver, both of which can transmit signals independently. SIT488E has 1/8 load and allows 256 transceivers to be connected to the same communication bus. It can achieve error-free transfer up to 1Mbps. SIT488E has a working voltage range of 4.5~5.5V and has the functions of fail-safe, current-limiting protection, over-voltage protection, etc. SIT488E has excellent ESD discharge capability, HBM reaches ±16kV
Key features
- 5V power supply, full-duplex 1/8 unit loads, allow up to 256 transceivers on the bus
- Driver short-circuit protection
- Receiver open-circuit failure protection
- Strong anti-noise ability
- Integrated transient voltage suppression
- Data transmission rate up to 1Mbps in the electrical noise environment
- A, B ports protection: HBM ±16kV
- Provide environmentally friendly lead-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIT490EESA#C698187SIT · SOP-8 | SIT | SOP-8 | 110 | ₹54.55 · 110 in stock | View |
 | SIT75179BDR#C712071SIT · SOP-8 | SIT | SOP-8 | 2,125 | ₹48.38 · 2,125 in stock | View |
 | SIT3490EESA#C496618SIT · SOP-8 | SIT | SOP-8 | On request | Price on request | Quote |
