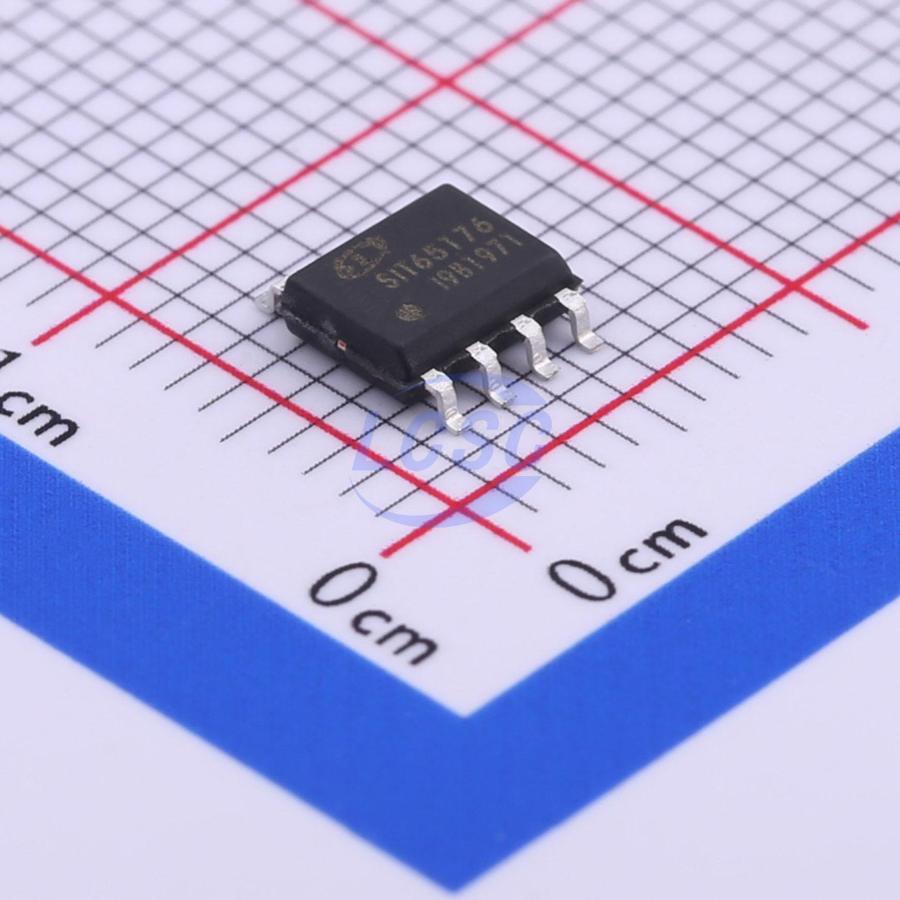

SIT65176BDR

SIT65176B is a RS-485 transceiver with 3.0V ~ 5.5V wide power supply, bus port ESD protection capacity of over 15kV HBM, bus withstand voltage range of ±15V, half duplex, low power consumption, and fully meet the requirements of TIA/EIA-485 standard. SIT65176B includes a driver and a receiver, both of which can be enabled and closed independently. When both are disabled, both the driver and the receiver output are high resistance state. It can realize error-free data transmission up to 14Mbps. SIT65176B has a working voltage range of 3.0 ~ 5.5V, and has the functions of fail-safe, overtemperature protection, current-limiting protection, over-voltage protection, etc.

Key features

• 3.0~5.5V voltage ranges
• half-duplex
• ESD protection for RS-485 I/O pins ±15kV, Human Body Model
• Bus fault tolerance and withstand voltage reach ±15V
• Driver short-circuit output protection
• Overtime protection function
• Low power shutdown function
• Receiver open-circuit failure protection
• Strong anti-noise ability
• Integrated transient voltage suppression function
• Data transmission up to 16Mbps in an electric noise environment
• Provide Green and Environmentally Friendly Lead-free package
