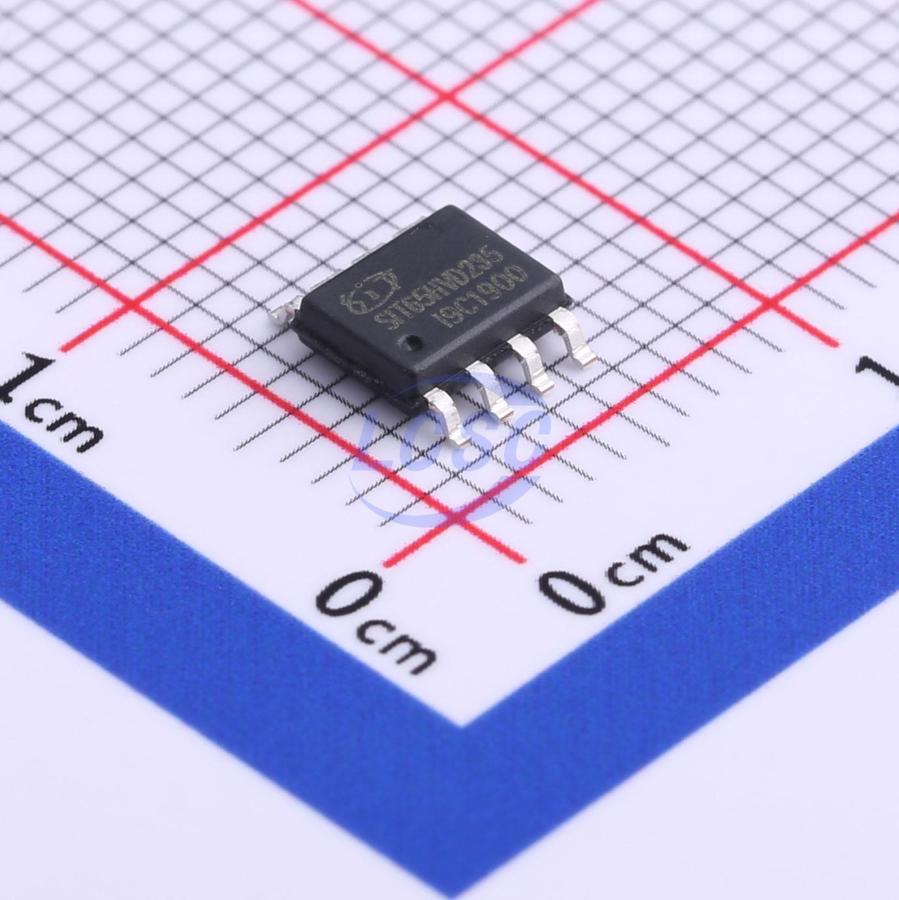

SIT65HVD235DR
3V~3.6V CAN Transceiver 1Mbps SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
SIT65HVD235 3.3V Power Supply, Automatic Baud Rate Loop Function, High-speed CAN Bus Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT65HVD235DR
- Store part #
- C601077
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,405 in stock
#C601077
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.03 | ₹73.03 |
| 10+ | ₹57.78 | ₹577.80 |
| 30+ | ₹51.33 | ₹1,539.90 |
| 100+ | ₹43.17 | ₹4,317.00 |
| 500+ | ₹39.74 | ₹19,870.00 |
| 1,000+ | ₹37.37 | ₹37,370.00 |
1 × ₹73.03
₹73.03
excl. GST
₹86.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT65HVD235DR
₹73.03 for 1 + GST
Specifications
- Voltage - Supply
- 3V~3.6V
- Type
- CAN Transceiver
- number of channels
- 1
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Wake-up function;Short-Circuit Protection;Thermal shutdown protection;ESD protection;Hot-swap protection
- Supply Current
- 70mA
- Quiescent Supply Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.152 g
Overview
SIT65HVD235 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is designed for use with the 3.3V μPs, MCUs and DSPs with CAN controllers, or with equivalent protocol controller devices. It is used in industrial automation, control, sensors and drive systems, motor and robotic control, building and climate control (HVAC), telecom and base station control and status. The devices are intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard.
Applications
- industrial automation
- control
- sensors and drive systems
- motor and robotic control
- building and climate control (HVAC)
- telecom and base station control and status
Key features
- Operates with a single 3.3V supply
- Compatible with ISO 11898 - 2 standard
- Bus pin ESD protection exceeds ±12 kV (HBM)
- High input impedance allows for up to 120 nodes
- Adjustable driver transition times for improved emissions performance
- Low current standby mode: 360 μA (typical)
- Designed for data rates up to 1Mbps
- Thermal shutdown protection
- Open circuit fail - safe design
- Glitch free power up and power down protection for hot plugging applications
- Provide environmentally friendly lead - free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIT65HVD234DR#C841401SIT · SOP-8 | SIT | SOP-8 | 21 | ₹79.26 · 21 in stock | View |
 | SIT65HVD232DR#C496621SIT · SOP-8 | SIT | SOP-8 | 10,822 | ₹70.62 · 10,822 in stock | View |
 | SIT65HVD231DR#C841402SIT · SOP-8 | SIT | SOP-8 | 2,982 | ₹71.71 · 2,982 in stock | View |
 | SIT65HVD230DR#C496619SIT · SOP-8 | SIT | SOP-8 | On request | Price on request | Quote |
 | SIT65HVD233DR#C496620SIT · SOP-8 | SIT | SOP-8 | On request | Price on request | Quote |
