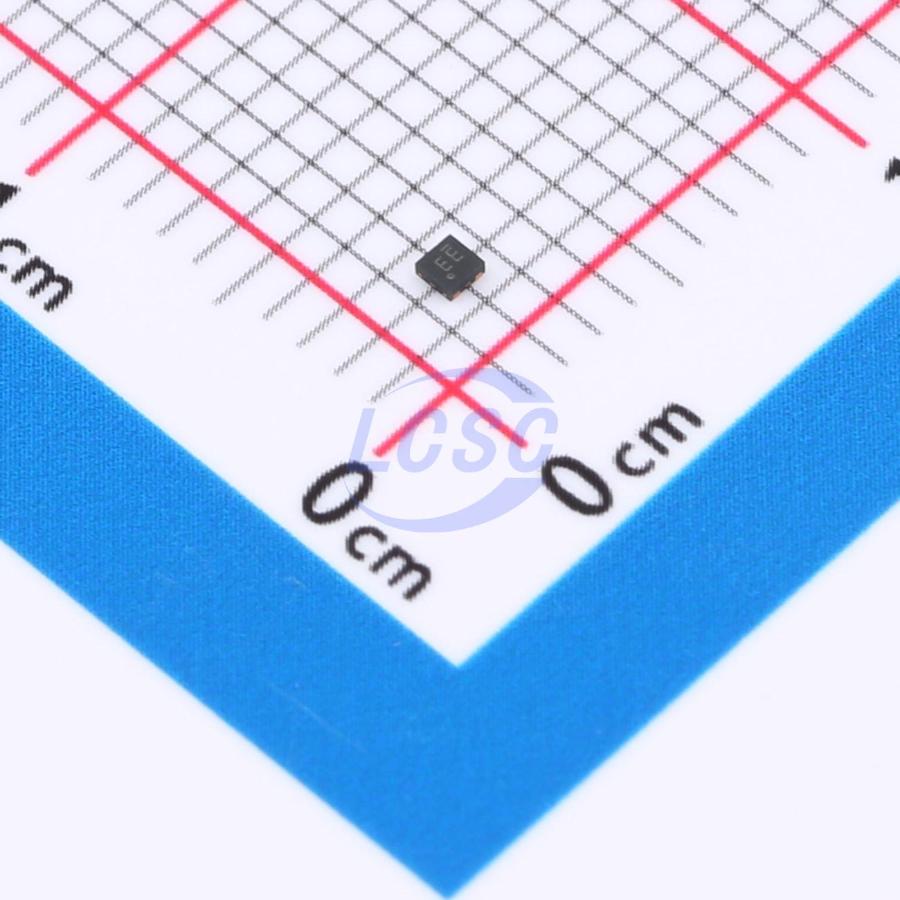

SK6011D4-33

SK6011 is a low-power, low-dropout linear regulator that delivers high power supply rejection ratio while maintaining an ultra-low quiescent current of 15μA, making it ideal for RF applications. The SK6011 employs advanced CMOS process technology with a PMOS pass device to achieve fast startup, ultra-low noise, excellent transient response, and superior PSRR performance. The SK6011 remains stable with a 1.0μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to ensure worst-case accuracy of 2% across all load, input voltage, process, and temperature variations. The SK6011 is available in DFN1×1-4L and SOT23-5L packages, making it ideal for compact portable devices such as wireless handsets and PDAs.

Applications

• Smartphones and cellular phones
• Personal digital assistants
• MP3/MP4 players
• Digital cameras
• Portable instruments

Key features

• Wide input voltage range: 1.9V to 5.5V
• Output voltage: 1.2V to 4.5V
• Up to 300mA load current
• Other output voltages available upon request
• Ultra-low quiescent current: 15μA
• Low dropout: 180mV@300mA, with VOUT = 3.3V
• Excellent PSRR: 90dB@1kHz (load = 1mA)
• Ultra-low noise: 10μVRMS@3.3V output (load = 1mA)
• Excellent load/line transient response
• Line regulation: typical 0.02%/V
• Short-circuit current limit: typical 60mA (current in short-circuit mode)
• With auto-discharge function
