SuntekDatasheet (PDF)

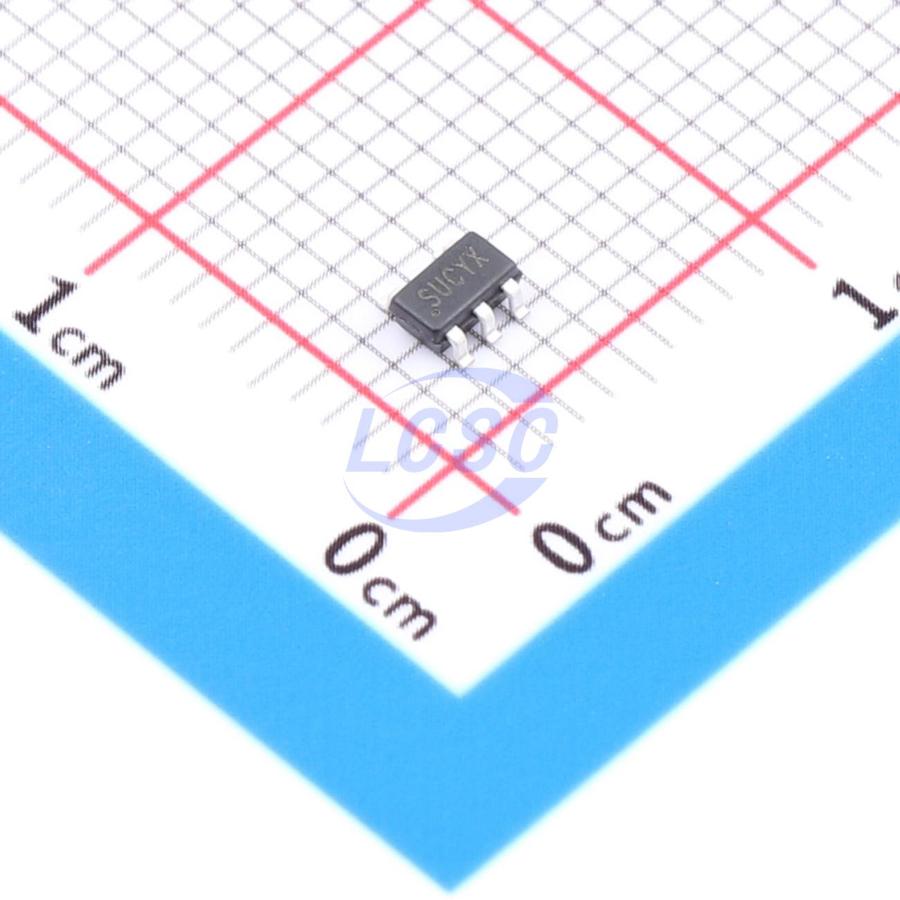

SK6012AS5-ADJ
600mV~5V Positive Adjustable SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5LRoHSActive
- Manufacturer
- Suntek
- Manufacturer part #
- SK6012AS5-ADJ
- Store part #
- C52034519
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C52034519
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.84 | ₹98.40 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.37 | ₹32,220.00 |
| 9,000+ | ₹5.05 | ₹45,450.00 |
10 × ₹9.84
₹98.40
excl. GST
₹116.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6012AS5-ADJ
₹98.40 for 10 + GST
Specifications
- Output Voltage
- 600mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.057 g
Overview
SK6012 is a high-precision, high-speed, low-dropout CMOS LDO regulator with high power supply ripple rejection ratio and fast discharge capability. This device delivers cost-effective performance in mobile phones, surveillance systems, Bluetooth, wireless devices, and other portable electronics. For fixed-voltage versions, SK6012 offers output voltage options from 0.8V to 3.6V in 0.1V increments. For the adjustable version, the output voltage range is 0.6V to 5.0V. Additional features include enable function, shutdown mode output discharge, current limiting, and thermal shutdown protection. SK6012 is available in standard SOT23-5L and DFN1x1-4L packages. Standard products are lead-free and halogen-free.
Applications
- Digital cameras
- Mobile phones
- Bluetooth and wireless handheld devices
- Other portable electronic devices
Key features
- Input voltage: 1.6V ~ 6.5V
- Adjustable output voltage range: 0.6V to 5.0V
- Feedback voltage: 0.6V
- Fixed output voltage range: 0.8V to 3.6V (customizable in 0.1V steps)
- Maximum output current: 500mA @ VIN - VOUT = 0.5V
- Power supply ripple rejection ratio: 70dB @ 1kHz, VOUT = 1.8V
- Dropout voltage: 145mV @ VOUT = 3.3V, IOUT = 300mA
- Quiescent current: 50μA (typical)
- Shutdown current: < 1μA
- Recommended input and output capacitance: 1μF
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6052S5-ADJ#C52034525Suntek · SOT-23-5L | Suntek | SOT-23-5L | 2,050 | ₹22.04 · 2,050 in stock | View |
