UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,100 in stock
SuntekDatasheet (PDF)

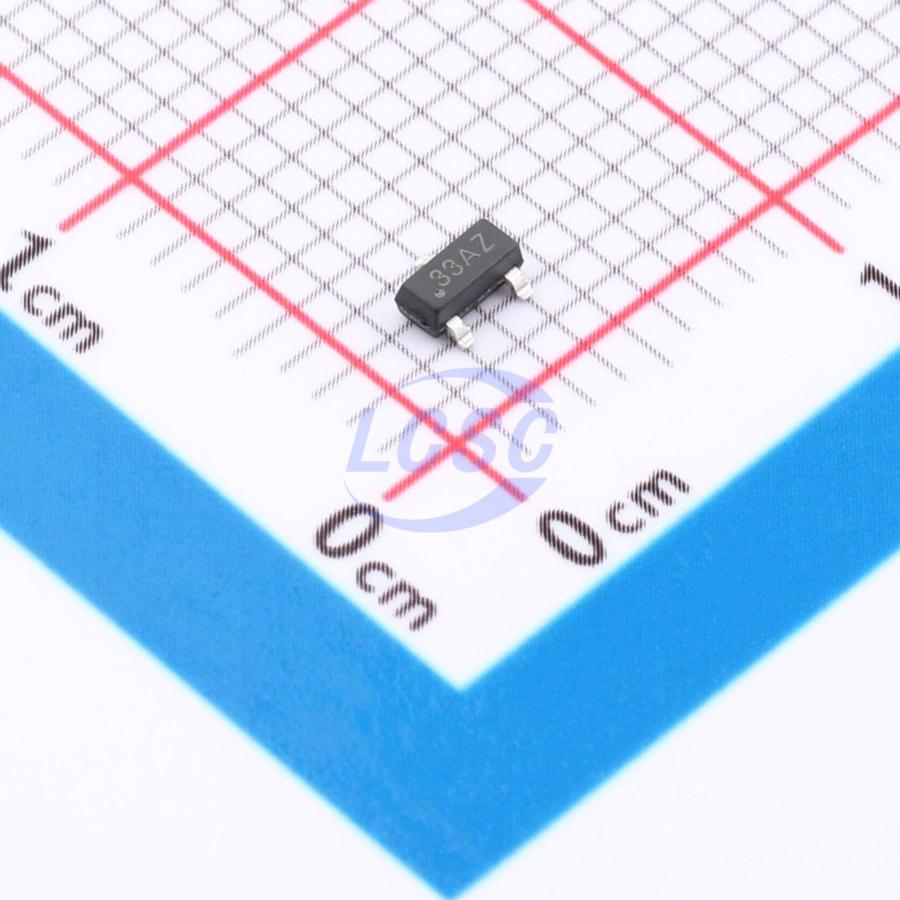

SK6206MS3-33
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- Suntek
- Manufacturer part #
- SK6206MS3-33
- Store part #
- C53360302
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,320 in stock
#C53360302
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.97 | ₹59.70 |
| 100+ | ₹4.72 | ₹472.00 |
| 300+ | ₹4.11 | ₹1,233.00 |
| 3,000+ | ₹3.65 | ₹10,950.00 |
| 6,000+ | ₹3.27 | ₹19,620.00 |
| 9,000+ | ₹3.08 | ₹27,720.00 |
10 × ₹5.97
₹59.70
excl. GST
₹70.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6206MS3-33
₹59.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
SK6206M is a high-precision, low-power three-terminal positive voltage regulator fabricated using CMOS technology with error correction circuitry. This series is compatible with low-ESR ceramic capacitors. A current-limit foldback circuit provides short-circuit protection and output current limiting on the output pin. The SK6206M is available in a SOT23 package.
Applications
- Mobile phones
- Battery-powered devices
- Portable gaming consoles
- Reference voltage sources
Key features
- Input voltage range: 1.8V ~ 5.5V
- Maximum output current: 300mA
- Low quiescent current: 6μA
- Low dropout voltage: 180mV at 100mA
- Fixed output voltage: 3.0V, 3.3V
- Output voltage accuracy: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6216CMMR-33#C2986196Suntek · SOT-23 | Suntek | SOT-23 | 1,354 | ₹24.82 · 1,354 in stock | View |
| SK6017S3-33#C52034489Suntek · SOT-23 | Suntek | SOT-23 | 180 | ₹8.30 · 180 in stock | View | |
