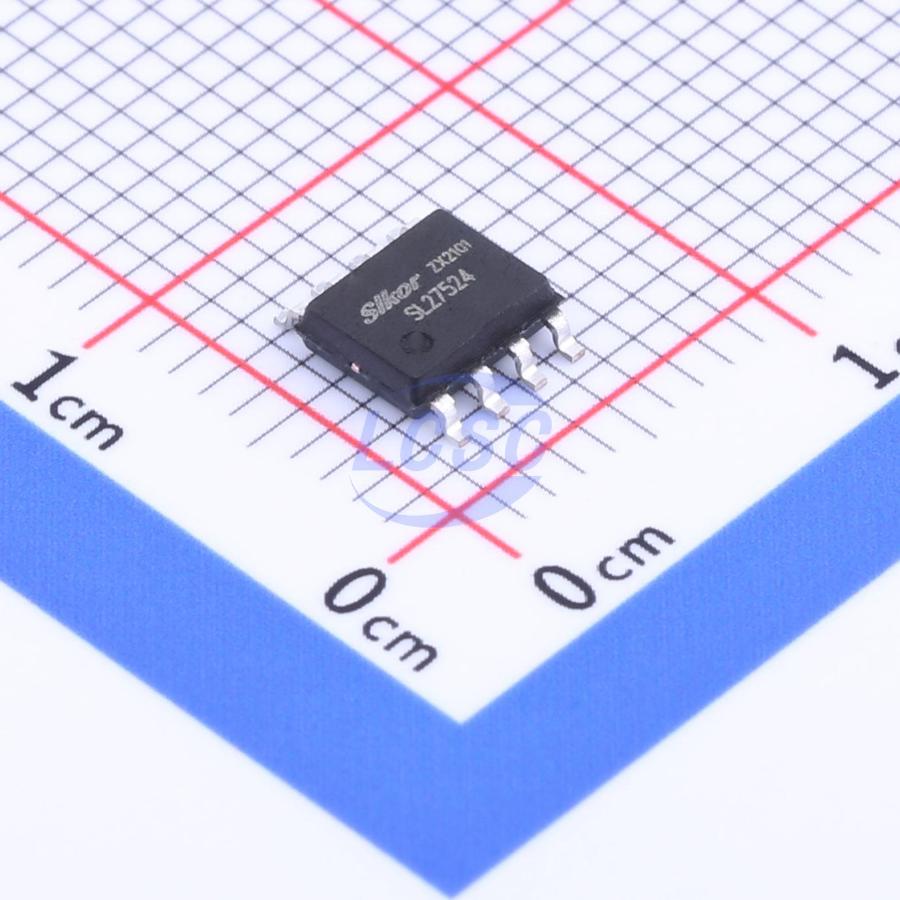

SL27524
Low Side Gate Driver IC MOSFET IGBT SOP-8
24V 4A dual-channel driver with sinking and sourcing currents
- Manufacturer
- Slkor
- Manufacturer part #
- SL27524
- Store part #
- C2690325
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,013 in stock
#C2690325
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.83 | ₹65.83 |
| 10+ | ₹51.72 | ₹517.20 |
| 30+ | ₹45.63 | ₹1,368.90 |
| 100+ | ₹38.02 | ₹3,802.00 |
| 500+ | ₹33.90 | ₹16,950.00 |
| 1,000+ | ₹31.73 | ₹31,730.00 |
1 × ₹65.83
₹65.83
excl. GST
₹77.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SL27524
₹65.83 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.2V
- Low Level Delay Time
- 16ns
- High Level Delay Time
- 16ns
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2V~2.4V
- Voltage - Supply
- 4.5V~20V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 6ns
- Fall Time
- 6ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
Dual-channel 4A high-speed low-side gate driver capable of efficiently and safely driving MOSFETs and IGBTs. Features such as low propagation delay and mismatch, along with a compact SOP-8 package, enable MOSFET switching frequencies up to hundreds of kHz. Suitable for synchronous rectification driving in server and telecom power supplies, where the dead time of the synchronous MOSFET directly impacts converter efficiency. Output drive current can be increased by paralleling dual channels. Input pin threshold voltage is based on TTL levels, compatible with inputs ranging from -5V to 20V. A wide VDD supply voltage range of 4.5V to 20V enables effective driving of MOSFETs or GaN power devices. Integrated UVLO protection ensures the output remains low under abnormal conditions. An independent input pin voltage range of -5V to 24V ensures stable operation under voltage overshoot caused by parasitic inductance. Input pin voltage thresholds are also compatible with TTL-level inputs.
Applications
- AC/DC and DC/DC converters
- Rectifiers for servers and communication equipment
- EV/HEV inverters and DC/DC converters
- PV boost and inverters
- UPS
- Motor control
- Wide bandgap power device gate driving
Key features
- Dual-channel independent gate drive
- 4A peak source/sink current
- Wide VDD supply range up to 24V
- Independent enable inputs
- Dual-channel parallel operation for high-current drive
- Inverting and non-inverting input options
- VDD UVLO with TTL and CMOS input level compatibility
- Low propagation delay
- 1ns typical delay matching between channels
- Output low when input floating
- Operating temperature range: -40°C to 125°C
