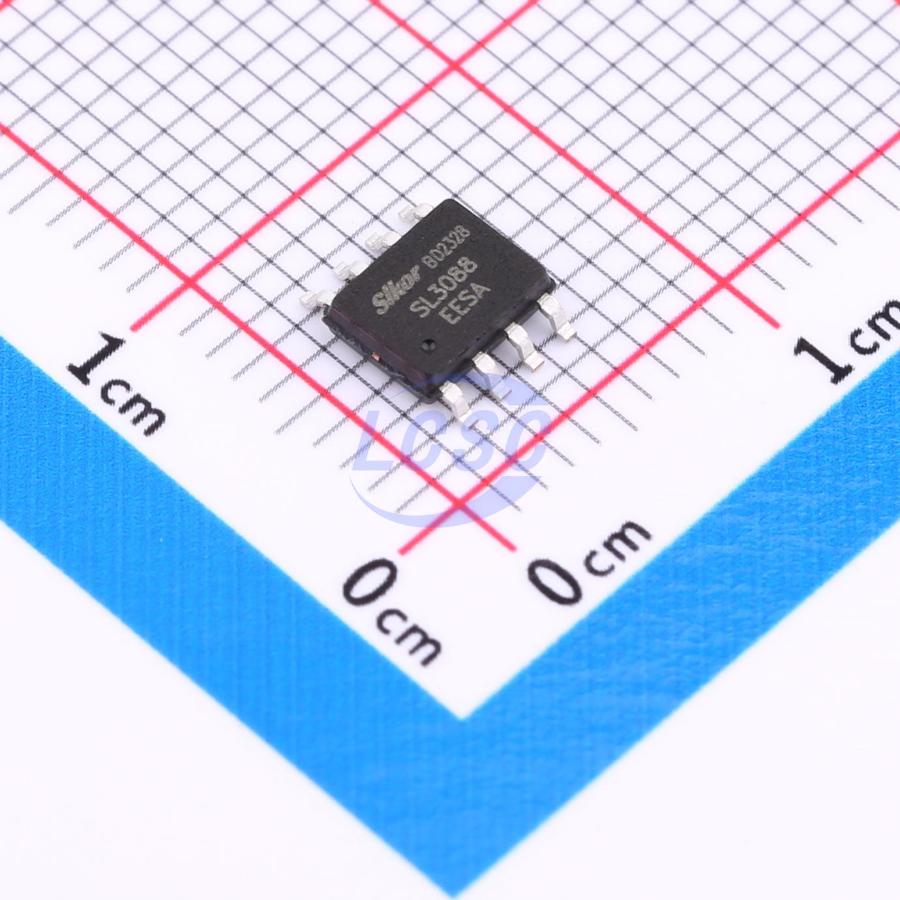

SL3088EESA

SL3088E is a RS - 485 transceiver with 3.0V ~ 5.5V wide power supply, bus port ESD protection capacity of over 15kV HBM, bus withstand voltage range of ±15V, half duplex, low power consumption, and fully meet the requirements of TIA / EIA- 485 standard. SL3088E includes a driver and a receiver, both of which can be enabled and closed independently. When both are disabled, both the driver and the receiver output are high resistance state. SL3088E has 1/8 load, which allows 256 SL3088E transceivers to be connected to the same communication bus. It can realize error- free data transmission up to 14Mbps. SL3088E has a working voltage range of 3.0 ~ 5.5V, and has the functions of fail- safe, current- limiting protection, over- voltage protection, etc.

Key features

• 3.0V~5.5V Wide Power Range, Half- Duplex
• ESD Protection for RS- 485 I/O Pins ±15kV, Human Body Model
• Bus Fault Tolerance and Withstand Voltage Reach ±15V
• 1/8 Unit Load, Allow Up to 256 Transceivers on the Bus
• Driver Short- Circuit Output Protection
• Low Power Off Function
• Receiver Open- Circuit Failure Protection
• Strong Anti- Noise Ability
• Integrated Transient Voltage Suppression Function
• Data transmission up to 14Mbps in an electric noise environment
• Available in SOP8, DIP8, MSOP8/8μMAX/VSSOP8 and DFN3*3- 8 packages
• Provide green and environmentally friendly lead- free package
