SlkorDatasheet (PDF)

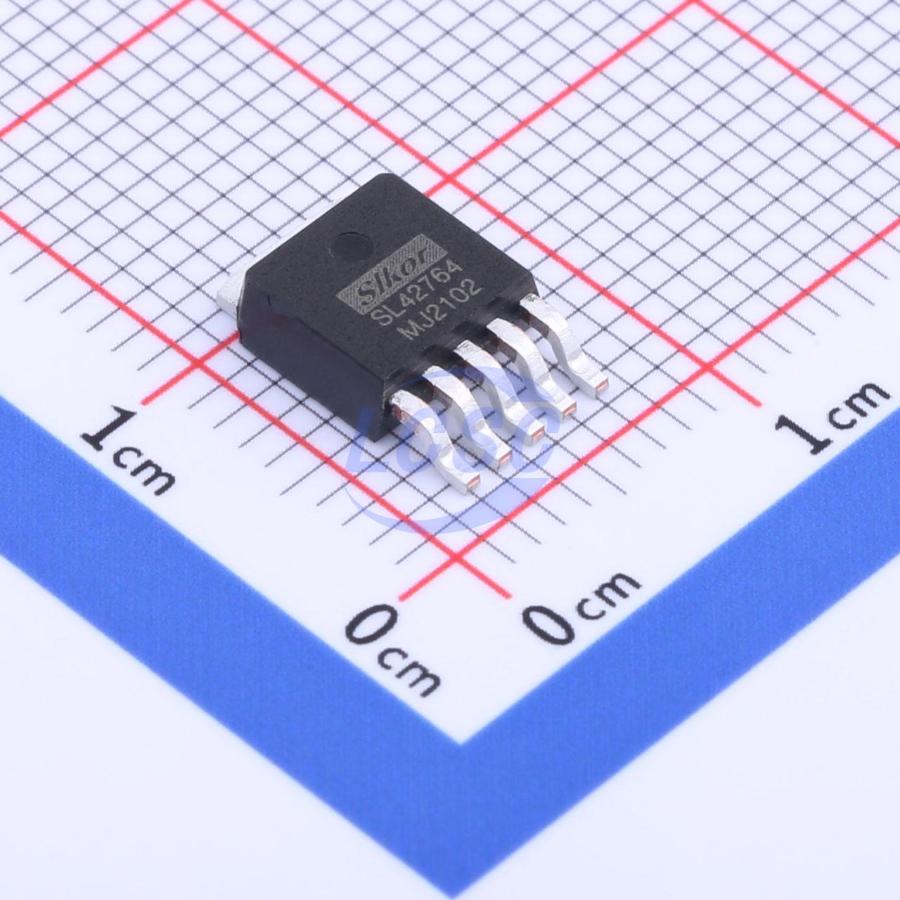

SL42764
Linear Voltage Regulator IC Positive Adjustable 1 Output 400mA TO-252-5
TO-252-5RoHSActive
Monolithic integrated low-dropout voltage regulator
- Manufacturer
- Slkor
- Manufacturer part #
- SL42764
- Store part #
- C2690319
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,385 in stock
#C2690319
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.28 | ₹164.28 |
| 10+ | ₹137.55 | ₹1,375.50 |
| 30+ | ₹123.00 | ₹3,690.00 |
| 100+ | ₹106.49 | ₹10,649.00 |
| 500+ | ₹88.67 | ₹44,335.00 |
| 1,000+ | ₹85.40 | ₹85,400.00 |
1 × ₹164.28
₹164.28
excl. GST
₹193.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SL42764
₹164.28 for 1 + GST
Specifications
- Output Voltage
- 2.5V~20V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 120uA
- Output Configuration
- Positive
- Output Current
- 400mA
- Operating Voltage
- 42V
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Reverse polarity voltage protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
The SL42764 is a monolithic integrated low-dropout voltage regulator with a load current up to 400mA. The input voltage range is 5V to 42V, providing output voltage accuracy within ±2%. This device is designed for automotive applications in harsh environments. It features overload, short-circuit, and over-temperature protection. Suitable for all other applications requiring a stable voltage between 2.5V and 20V. The SL42764 has very low quiescent current, specifically designed for long-term VBAT-connected applications. Additionally, when the device shutdown enable input pin is asserted, the shutdown current is less than 10μA.
Key features
- Shutdown current < 10uA
- Adjustable output voltage, ±2% accuracy
- Output current up to 400mA, wide input voltage range 5~42V
- Ultra-low dropout voltage
- Output current limiting
- Thermal shutdown protection
- Reverse polarity protection
- Temperature range: -40°C - 125°C, RoHS
