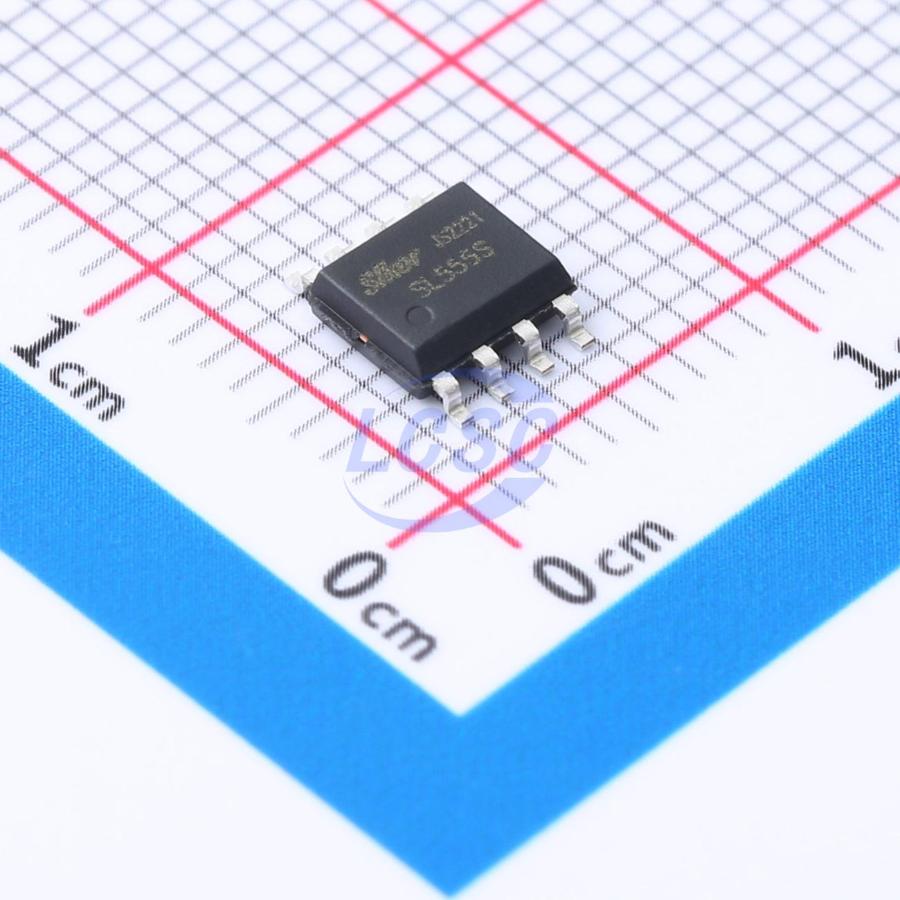

SL555S
SOP-8 Programmable Timers and Oscillators
Bipolar integrated circuit capable of generating high-precision timing pulses
- Manufacturer
- Slkor
- Manufacturer part #
- SL555S
- Store part #
- C5122571
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,070 in stock
#C5122571
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.14 | ₹95.70 |
| 50+ | ₹16.78 | ₹839.00 |
| 150+ | ₹15.76 | ₹2,364.00 |
| 500+ | ₹14.50 | ₹7,250.00 |
| 2,500+ | ₹13.93 | ₹34,825.00 |
| 5,000+ | ₹13.60 | ₹68,000.00 |
5 × ₹19.14
₹95.70
excl. GST
₹112.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SL555S
₹95.70 for 5 + GST
Specifications
- Supply Current
- 1.5mA
- Features
- Reset function;Adjustable duty cycle oscillation
- Operating Temperature
- -20℃~+70℃
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
SL555 is a bipolar IC capable of generating high-precision timing pulses. It consists of four internal circuit blocks: a threshold comparator, a trigger comparator, an RS flip-flop, and an output stage. With a minimal number of external resistors and capacitors, it can be configured as a timing trigger circuit, pulse width modulation circuit, audio oscillator, and more. Widely used in toys, traffic signaling, automation control, and other applications.
Applications
- Audio pulse generators, frequency dividers
- Pulse width modulation, pulse phase modulation
- Equipment timing, traffic light control, access control
- Industrial control
Key features
- Excellent timing accuracy, maximum operating frequency up to 500KHz
- High output drive capability
- TTL-compatible
- Superior temperature stability
- Package: SOP8, DIP8
- Timing range from microseconds to hours (precisely adjustable via external RC components)
