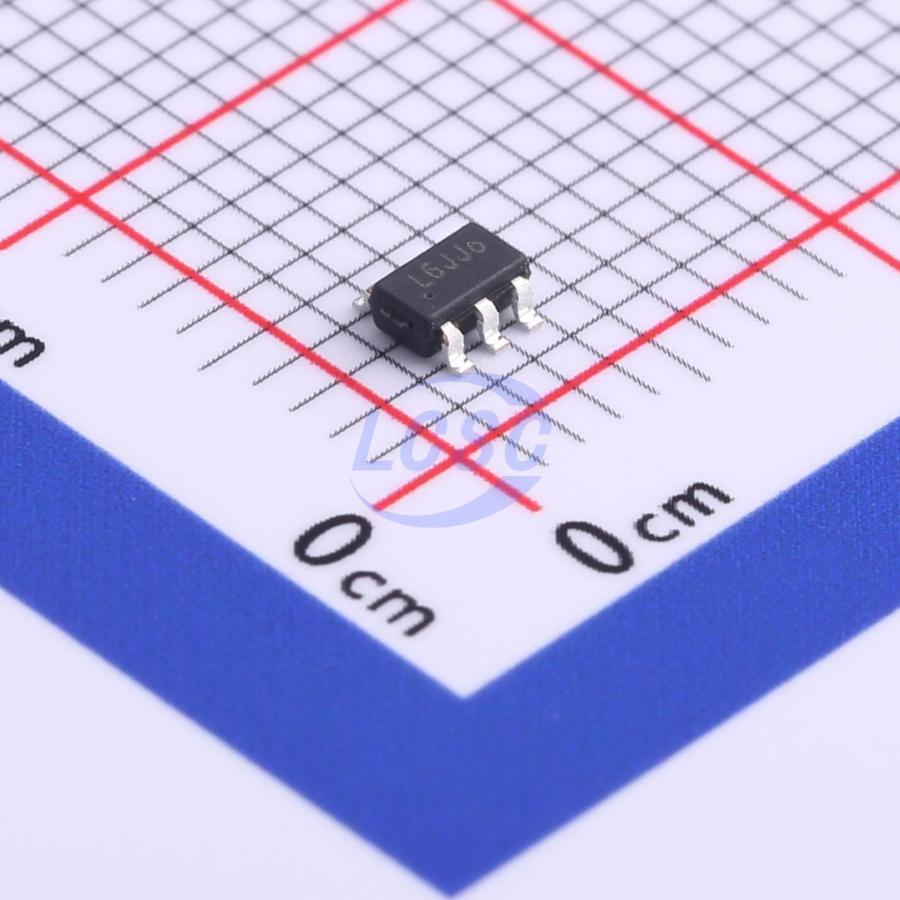

SL6206-33MR

The SL6206 series products are high performance and low dropout linear regulators. The SL6206 series products support maximum 300 mA output current with low quiescent current and high PSRR. The SL6206 series products is stable with ceramic output capacitor from 2.2 μF to 10 μF. The SL6206 series products have a high PSRR with 60 dB at 1 KHz. This feature makes SL6206 series products very suitable for power-sensitive applications with high noise from previous stage power supply. As low as 50 μA quiescent current and shutdown current makes the SL6206 series products ideal choices for portable devices with battery power supply.

Applications

• Handheld Devices with Battery Power Supply
• Video Surveillance Wireless and IoT modules

Key features

• Input Voltage Range: 2.5 V to 5.5 V
• Output Voltage Options:
• Fixed Voltage: 1.2 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V
• Adjustable Voltage: 0.8 V to 5 V
• ±2% Output Accuracy Through Operating Conditions
• Maximum Output Current: 300 mA
• Low Dropout Voltage: 200 mV at 300 mA
• Low Quiescent Current and Shutdown Current
• Foldback Current Limit and Thermal Protection
• Stable with 2.2 μF Ceramic Capacitor
• Soft-start Limits Input Current Surge During Enable
• Thermal Shutdown Protection Junction Temperature Range: -40°C to +125°C
