SlkorDatasheet (PDF)

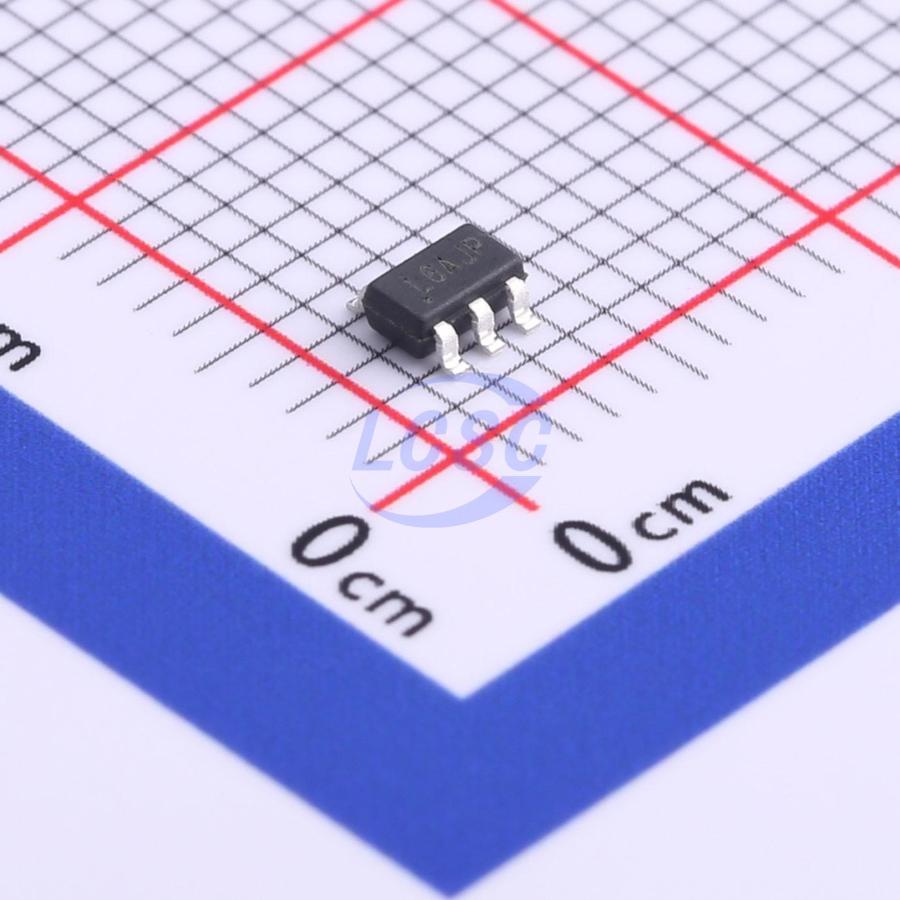

SL6206-ADJMR
800mV~5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
300mA low-dropout linear regulator
- Manufacturer
- Slkor
- Manufacturer part #
- SL6206-ADJMR
- Store part #
- C707123
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C707123
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.68 | ₹66.80 |
| 100+ | ₹5.38 | ₹538.00 |
| 300+ | ₹4.74 | ₹1,422.00 |
| 3,000+ | ₹4.19 | ₹12,570.00 |
| 6,000+ | ₹3.80 | ₹22,800.00 |
| 9,000+ | ₹3.61 | ₹32,490.00 |
10 × ₹6.68
₹66.80
excl. GST
₹78.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL6206-ADJMR
₹66.80 for 10 + GST
Specifications
- Output Voltage
- 800mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Built-in soft-start;Input under-voltage protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The SL6206 series products are high performance and low dropout linear regulators. The SL6206 series products support maximum 300 mA output current with low quiescent current and high PSRR. The SL6206 series products is stable with ceramic output capacitor from 2.2 μF to 10 μF. The SL6206 series products have a high PSRR with 60 dB at 1 KHz. This feature makes SL6206 series products very suitable for power-sensitive applications with high noise from previous stage power supply. As low as 50 μA quiescent current and shutdown current makes the SL6206 series products ideal choices for portable devices with battery power supply.
Applications
- Handheld Devices with Battery Power Supply
- Video Surveillance Wireless and IoT modules
Key features
- Input Voltage Range: 2.5 V to 5.5 V
- Output Voltage Options:
- Fixed Voltage: 1.2 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V
- Adjustable Voltage: 0.8 V to 5 V
- ±2% Output Accuracy Through Operating Conditions
- Maximum Output Current: 300 mA
- Low Dropout Voltage: 200 mV at 300 mA
- Low Quiescent Current and Shutdown Current
- Foldback Current Limit and Thermal Protection
- Stable with 2.2 μF Ceramic Capacitor
- Soft-start Limits Input Current Surge During Enable
- Thermal Shutdown Protection Junction Temperature Range: -40°C to +125°C
