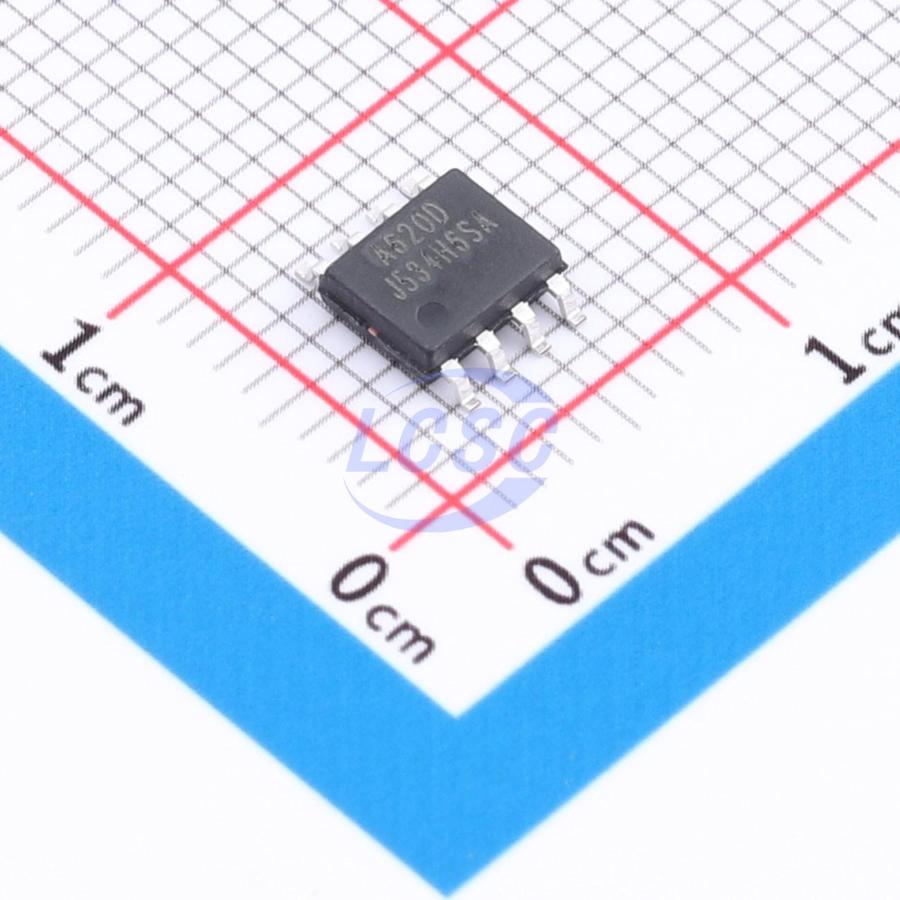

Slkor

SL620D-S08

1pA 2.1mA 20MHz Rail-to-rail output SOP-8 Audio Amplifiers

SOP-8RoHSActive

Manufacturer: Slkor
Manufacturer part #: SL620D-S08
Store part #: C54950729
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,990 in stock

#C54950729

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹43.47	₹217.35
50+	₹34.35	₹1,717.50
150+	₹30.43	₹4,564.50
500+	₹25.55	₹12,775.00
2,500+	₹23.38	₹58,450.00
4,000+	₹22.07	₹88,280.00

Quantity (min 5, multiples of 5)

5 × ₹43.47

₹217.35

excl. GST

₹256.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SL620D-S08

₹217.35 for 5 + GST

Specifications

Ib - Input Bias Current: 1pA
number of channels: 2
Operating Temperature: -40℃~+125℃
Input Offset Current(Ios): 1pA
Vos - Input Offset Voltage: 2mV
Output Current: 57mA
Common Mode Rejection Ratio (CMRR): 89dB
Quiescent Current: 2.1mA
Gain Bandwidth Product: 20MHz
Input Offset Voltage Drift(Vos TC): 750nV/℃
Single Supply: 2.5V~5.5V
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Slew Rate: 14V/us
Noise density(eN): 12nV/√Hz
Rail to Rail: Rail-to-rail output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.164 g
