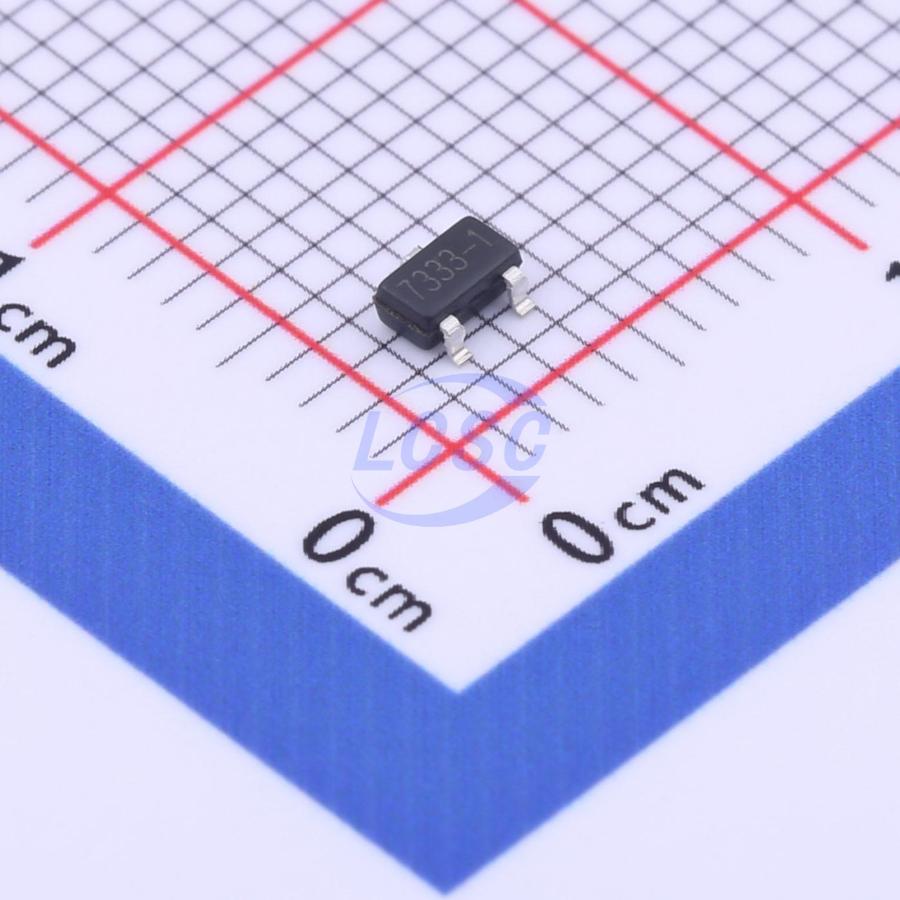

SL7333-3
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3
SOT-23-3RoHSActive
300mA low-voltage LDO
- Manufacturer
- Slkor
- Manufacturer part #
- SL7333-3
- Store part #
- C2826486
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,890 in stock
#C2826486
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.20 | ₹61.00 |
| 50+ | ₹9.59 | ₹479.50 |
| 150+ | ₹8.30 | ₹1,245.00 |
| 500+ | ₹7.32 | ₹3,660.00 |
| 3,000+ | ₹6.54 | ₹19,620.00 |
| 6,000+ | ₹6.14 | ₹36,840.00 |
5 × ₹12.20
₹61.00
excl. GST
₹71.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL7333-3
₹61.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 45V
- Features
- Output discharge;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
SL 73xx is a low dropout linear regulator using CMOS technology. It provides a maximum output current of 300mA and supports a maximum input voltage of +48V. Several fixed output voltage options are available, ranging from 1.8V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: +48V
- Typical quiescent current: 3uA
- Maximum output current: 300mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, SOT89
