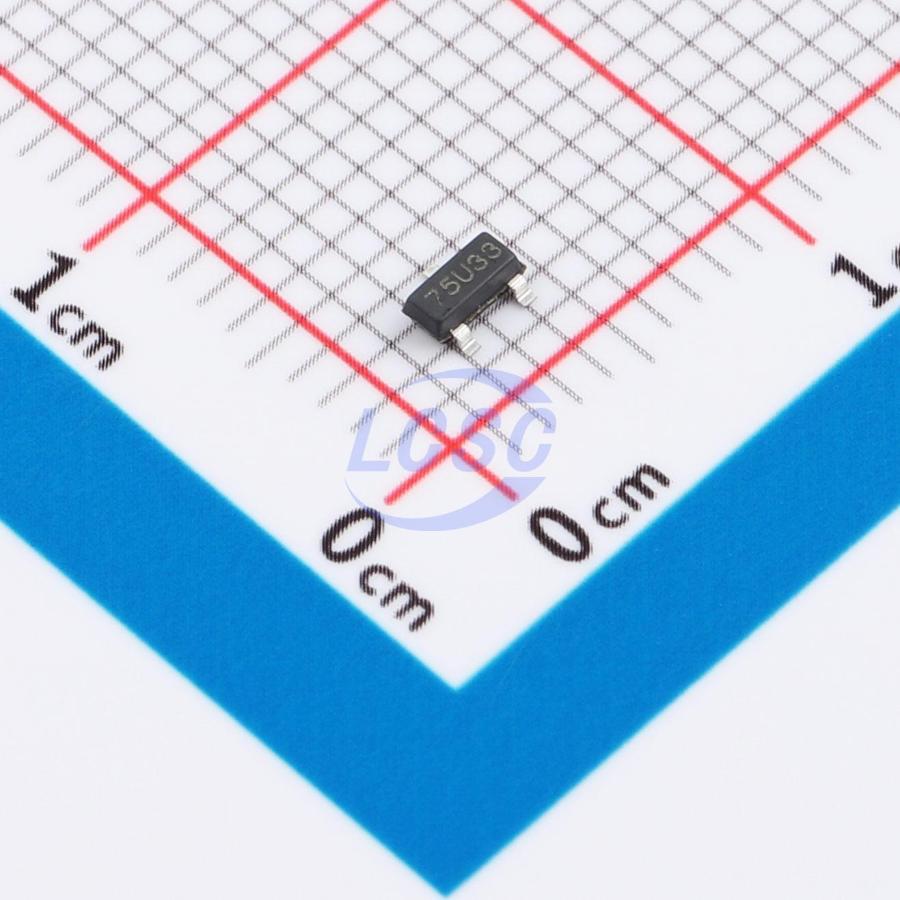

SL75U33S
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- Slkor
- Manufacturer part #
- SL75U33S
- Store part #
- C53207120
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,690 in stock
#C53207120
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.34 | ₹71.70 |
| 50+ | ₹11.39 | ₹569.50 |
| 150+ | ₹9.92 | ₹1,488.00 |
| 500+ | ₹8.81 | ₹4,405.00 |
| 3,000+ | ₹7.92 | ₹23,760.00 |
| 6,000+ | ₹7.49 | ₹44,940.00 |
5 × ₹14.34
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL75U33S
₹71.70 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The SL75Uxx is a low-dropout linear regulator fabricated in CMOS technology. It features a 60V voltage rating, multiple fixed output voltage options ranging from 2.8V to 9.0V, and a maximum output current of 300mA. The device offers ultralow quiescent current consumption and integrates a CE enable control circuit. It also incorporates output overload protection and overtemperature protection to prevent system failures, making it widely applicable in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low input-output voltage differential
- Low temperature drift coefficient
- 60V voltage rating
- Operating quiescent current 2μA, max 5μA
- Sleep quiescent current 0.1μA, max 2.5μA
- Output voltage accuracy: ±2%, typical within ±1%
- Output overload protection
- Over-temperature protection
- Built-in CE enable control circuit
- High PSRR: 70dB@1kHz
- Operating temperature range -40℃ ~ +125℃
