SlkorDatasheet (PDF)

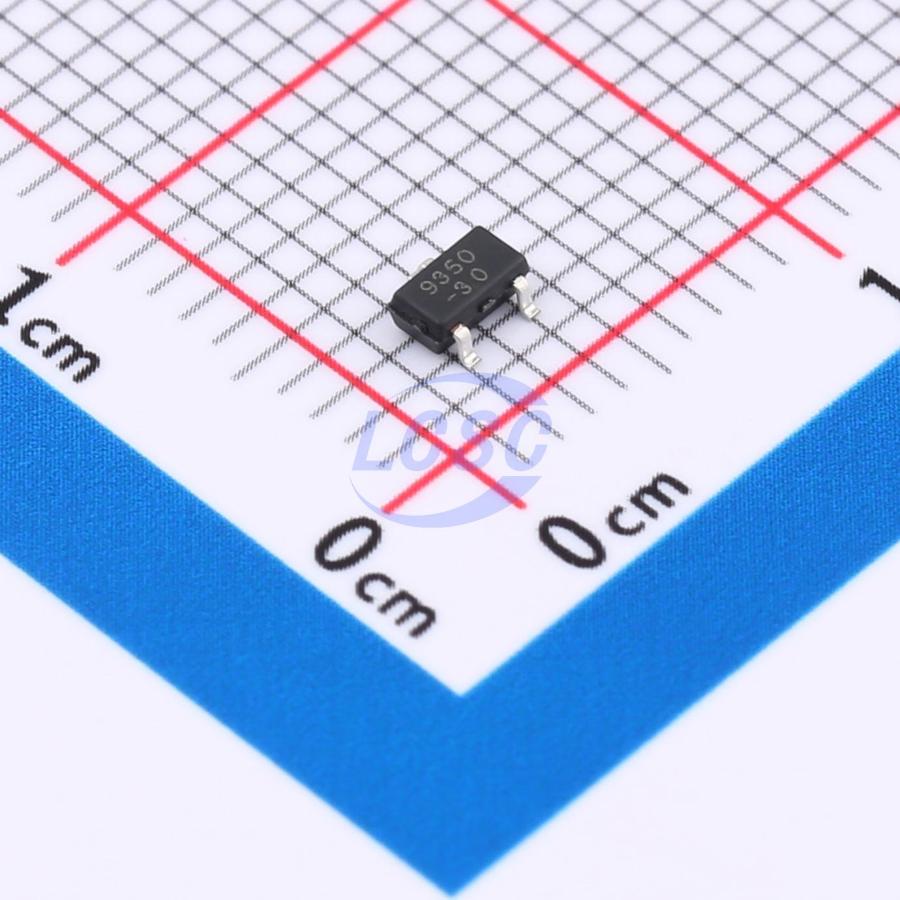

SL9350L30SC
3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3ROHS CompliantActive
Low Dropout Regulators
- Manufacturer
- Slkor
- Manufacturer part #
- SL9350L30SC
- Store part #
- C7543325
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C7543325
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.87 | ₹98.70 |
| 100+ | ₹7.85 | ₹785.00 |
| 300+ | ₹6.83 | ₹2,049.00 |
| 3,000+ | ₹6.07 | ₹18,210.00 |
| 6,000+ | ₹5.46 | ₹32,760.00 |
| 9,000+ | ₹5.16 | ₹46,440.00 |
10 × ₹9.87
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL9350L30SC
₹98.70 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Output discharge;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
SL9350 Series are a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection and fast discharge function. The device offers a new level of cost effective performance in cellular phones, surveillance system, Bluetooth, wireless and other portable electronic devices. SL9350 Series can provide product selections of output value in the range of 1.2V~3.6V by every 0.1V step. The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. The SL9350 Series are available in standard SOT-23、SOT-89、SOT-23-3 SOT23-5 and DFN1x1-4L packages. Standard products are Pb-free and Halogen-free.
Applications
- Digital cameras
- Cellphones
- Bluetooth and wireless handsets
- Other portable electronic devices
Key features
- Maximum Output Current: 400mA(@VIN - VOUT = 0.5V)
- Output Voltage Range: 1.2V~3.6V (customized by every 0.1V step)
- Low Quiescent Current: 50uA(Typ.)
- Low Dropout Voltage: 220mV@Iout = 200mA
- 0.01% Line Regulation
- 75dB PSRR @ 1KHz
- Standby Current: <1uA VOUT fast discharge
