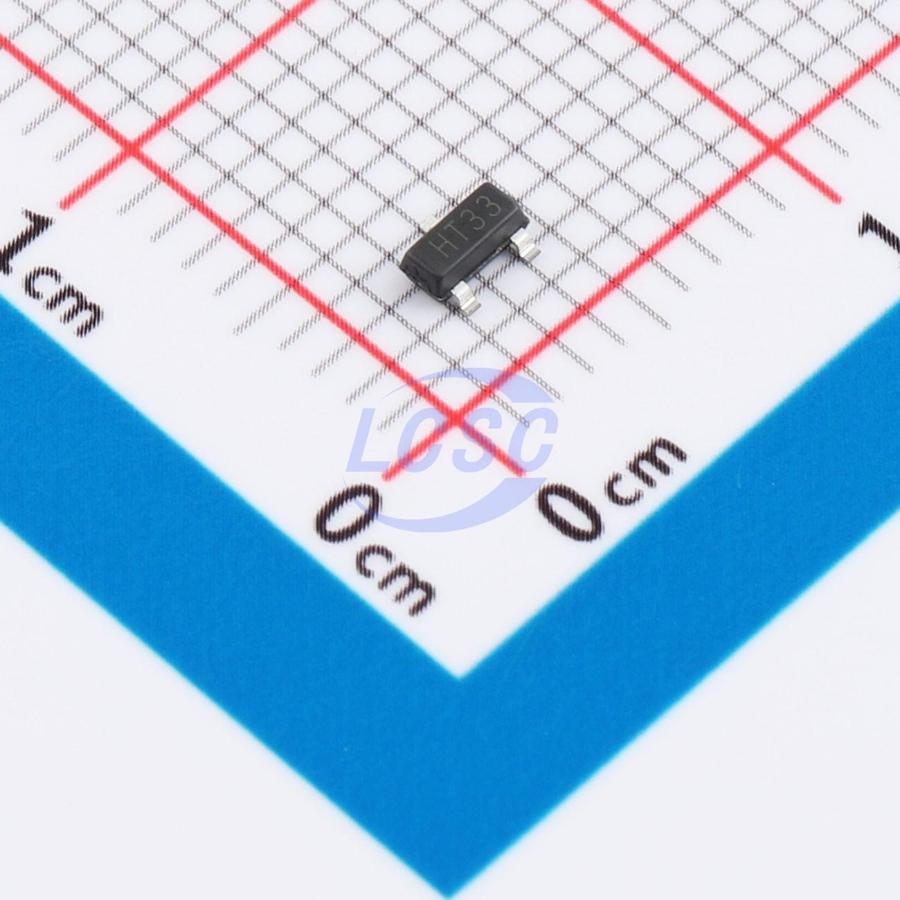

SLHT33H
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- Slkor
- Manufacturer part #
- SLHT33H
- Store part #
- C53207116
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,550 in stock
#C53207116
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.93 | ₹49.30 |
| 100+ | ₹3.92 | ₹392.00 |
| 300+ | ₹3.41 | ₹1,023.00 |
| 3,000+ | ₹3.03 | ₹9,090.00 |
| 6,000+ | ₹2.73 | ₹16,380.00 |
| 9,000+ | ₹2.58 | ₹23,220.00 |
10 × ₹4.93
₹49.30
excl. GST
₹58.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SLHT33H
₹49.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
This device is a low-dropout linear regulator based on CMOS technology, with the model number SLHT33H. It features a 50V voltage rating, a 3.3V output voltage, and delivers up to 250mA of output current with low quiescent current consumption. The device integrates output short-circuit protection and reduces output current when junction temperature becomes excessive to prevent system failure, making it widely used in power supply applications for various audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- 50V withstand voltage
- Typical quiescent current 2.0μA
- Output voltage accuracy: ±1%
- Output short-circuit protection
- Output current derating when junction temperature exceeds 120℃
- ESD HBM exceeds 2500V
