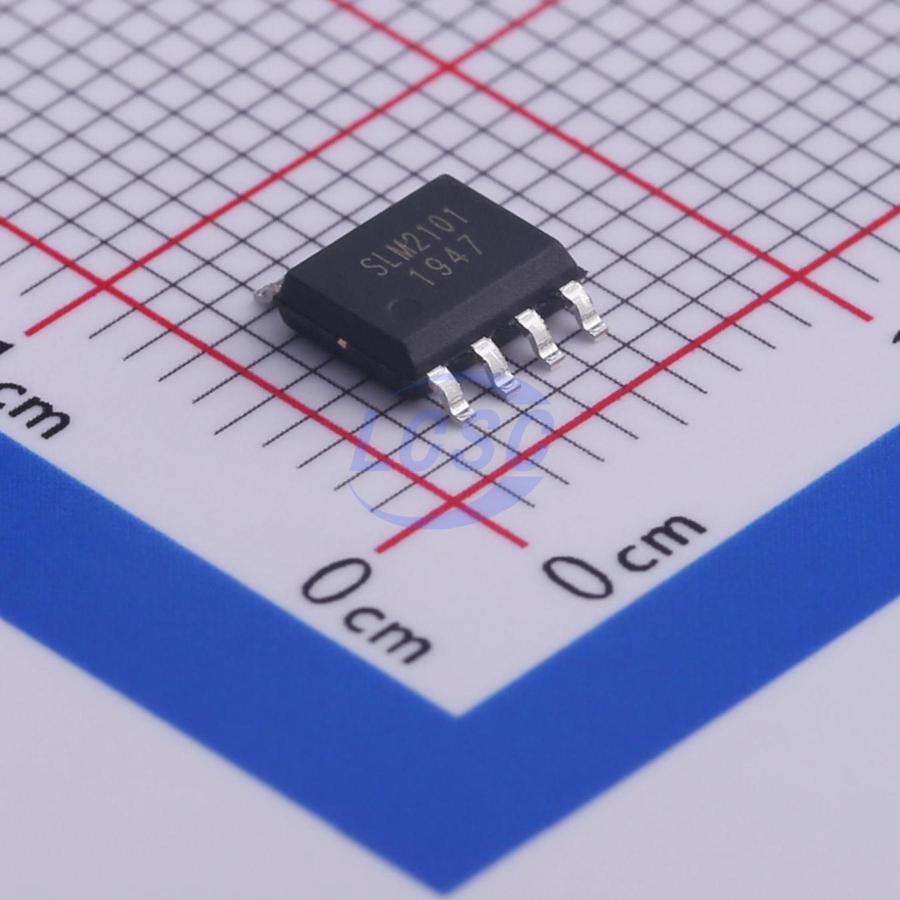

SLM2101SCA-13GTR
10V~20V 290mA SOIC-8 Gate Drivers
600V Half Bridge Driver
- Manufacturer
- Sillumin
- Manufacturer part #
- SLM2101SCA-13GTR
- Store part #
- C461468
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,425 in stock
#C461468
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.47 | ₹227.35 |
| 50+ | ₹35.27 | ₹1,763.50 |
| 150+ | ₹30.89 | ₹4,633.50 |
| 500+ | ₹25.44 | ₹12,720.00 |
| 2,500+ | ₹23.02 | ₹57,550.00 |
| 5,000+ | ₹21.55 | ₹1,07,750.00 |
5 × ₹45.47
₹227.35
excl. GST
₹268.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLM2101SCA-13GTR
₹227.35 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 160ns
- High Level Delay Time
- 220ns
- Quiescent Current
- 230uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 290mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.231 g
Overview
The SLM2101S is a high voltage, high speed power MOSFET and IGBT drivers. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout
- 3.3 V, 5 V, and 15 V logic compatible
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Outputs in phase with inputs
- RoHS compliant SOP8 package
