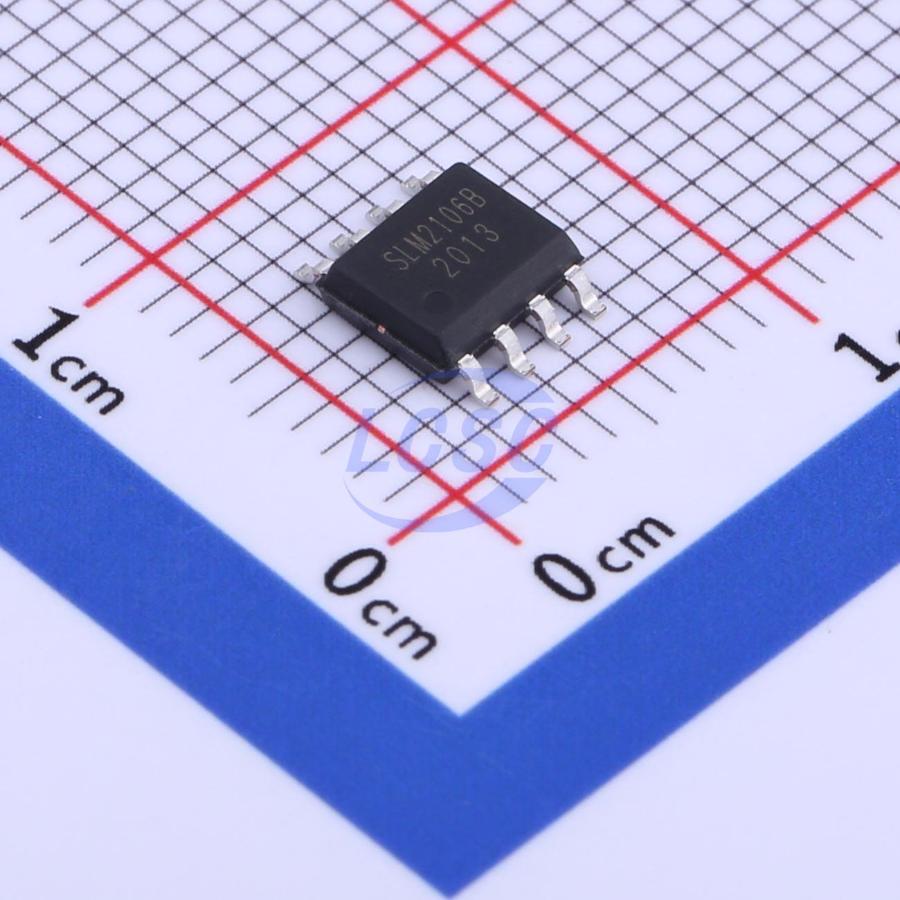

SLM2106BCA-13GTR
10V~20V 950mA 450mA SOIC-8 Gate Drivers
High and Low Side Driver
- Manufacturer
- Sillumin
- Manufacturer part #
- SLM2106BCA-13GTR
- Store part #
- C883214
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,493 in stock
#C883214
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.28 | ₹61.28 |
| 10+ | ₹48.02 | ₹480.20 |
| 30+ | ₹42.38 | ₹1,271.40 |
| 100+ | ₹35.43 | ₹3,543.00 |
| 500+ | ₹32.39 | ₹16,195.00 |
| 1,000+ | ₹30.43 | ₹30,430.00 |
1 × ₹61.28
₹61.28
excl. GST
₹72.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLM2106BCA-13GTR
₹61.28 for 1 + GST
Specifications
- Low Level Delay Time
- 160ns
- High Level Delay Time
- 220ns
- Quiescent Current
- 230uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 950mA
- Rise Time
- 45ns
- Fall Time
- 18ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 450mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The SLM2106B is a high voltage, high speed power MOSFET and IGBT drivers with independent highand low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout for both channels
- 3.3 V, 5 V, and 15 V logic compatible
- Matched propagation delay for both channels
- Lower di/dt gate driver for better noise immunity
- Outputs in phase with inputs
- RoHS compliant SOP8 package
