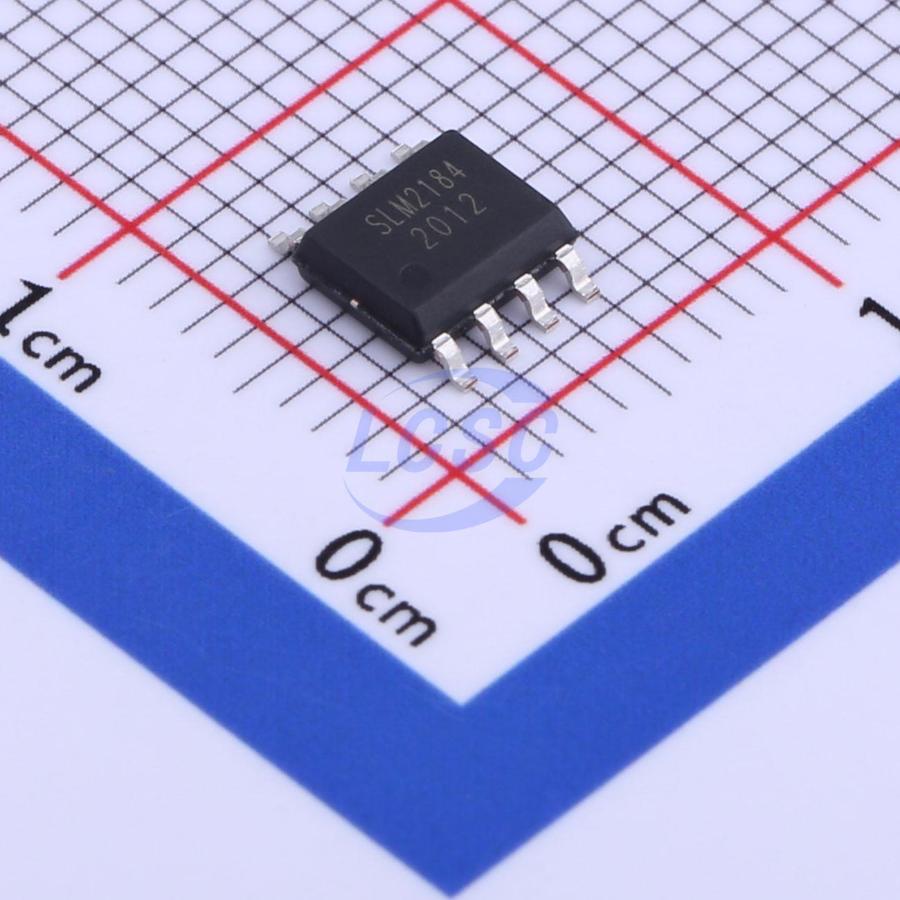

SLM2184SCA-13GTR
10V~20V 450mA 450mA SOIC-8 Gate Drivers
600V Half-Bridge Driver
- Manufacturer
- Sillumin
- Manufacturer part #
- SLM2184SCA-13GTR
- Store part #
- C883213
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,294 in stock
#C883213
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.91 | ₹88.91 |
| 10+ | ₹71.56 | ₹715.60 |
| 30+ | ₹62.88 | ₹1,886.40 |
| 100+ | ₹54.43 | ₹5,443.00 |
| 500+ | ₹49.23 | ₹24,615.00 |
| 1,000+ | ₹46.62 | ₹46,620.00 |
1 × ₹88.91
₹88.91
excl. GST
₹104.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLM2184SCA-13GTR
₹88.91 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 210uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 450mA
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 450mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The SLM2184S is a high voltage, high speed power MOSFET and IGBT drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout
- 3.3 V, 5 V, and 15 V logic compatible
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Internal set deadtime
- Shutdown input turns off both channels
- RoHS compliant SOP-8 package
