TIDatasheet (PDF)

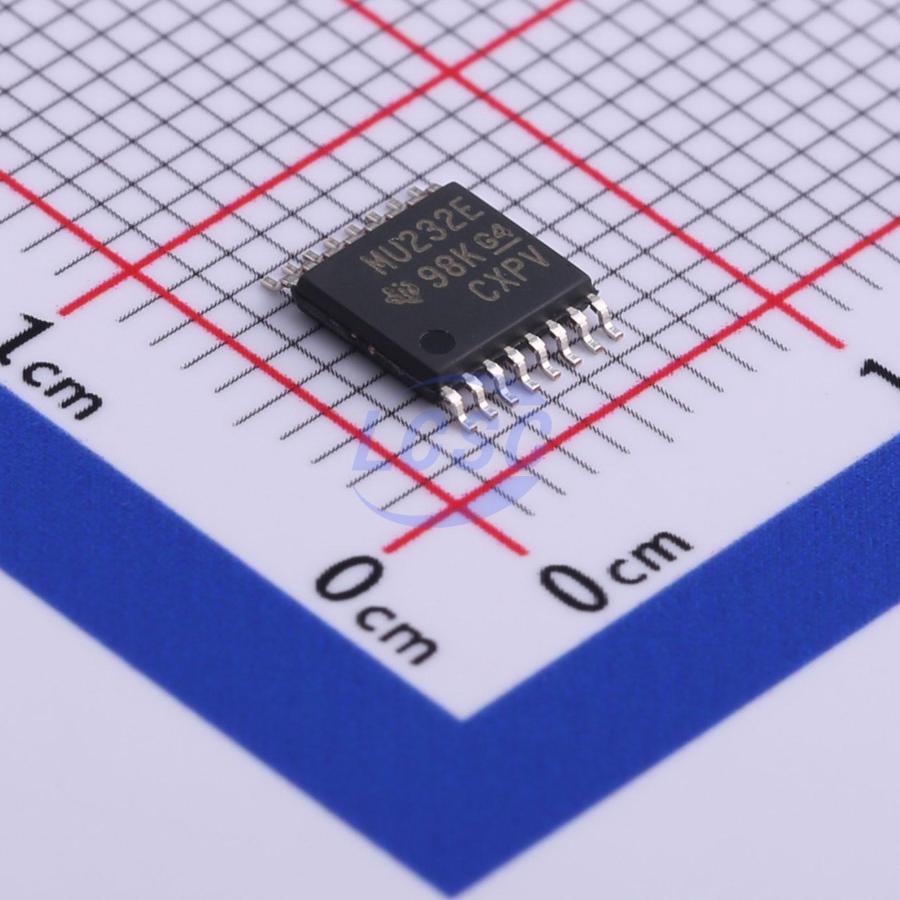

SN65C3232EPWR
Transceiver 3V~5.5V 1Mbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
SN65C3232E, SN75C3232E 3-V TO 5.5-V TWO-CHANNEL RS-232 1-MBIT/S LINE DRIVERS/RECEIVERS
- Manufacturer
- TI
- Manufacturer part #
- SN65C3232EPWR
- Store part #
- C529305
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,656 in stock
#C529305
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.57 | ₹164.57 |
| 10+ | ₹138.54 | ₹1,385.40 |
| 30+ | ₹124.24 | ₹3,727.20 |
| 100+ | ₹107.98 | ₹10,798.00 |
| 500+ | ₹100.83 | ₹50,415.00 |
| 1,000+ | ₹97.57 | ₹97,570.00 |
1 × ₹164.57
₹164.57
excl. GST
₹194.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN65C3232EPWR
₹164.57 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The SN65C3232E and SN75C3232E consist of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). These devices provide the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 1 Mbit/s and a driver output slew rate of 14 V/μs to 150 V/μs.
Applications
- Battery-Powered Systems
- PDAs
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- Operate With 3-V to 5.5-V Vcc Supply
- Operate up to 1 Mbit/s
- Low Supply Current ... 300 μA Typ
- External Capacitors ... 4×0.1 μF
- Accept 5-V Logic Input With 3.3-V Supply
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection for RS-232 Pins
- ±15-kV Human-Body Model (HBM)
- ±15-kV IEC 61000-4-2 Air-Gap Discharge
- ±8-kV IEC 61000-4-2 Contact Discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN65C3232PWR#C2671378TI · TSSOP-16 | TI | TSSOP-16 | 38 | ₹257.59 · 38 in stock | View |
 | GM3232HTA#C52023753GATEMODE · TSSOP-16 | GATEMODE | TSSOP-16 | 4,600 | ₹52.13 · 4,600 in stock | View |
 | MAX3232IPWR#C113205TI · TSSOP-16 | TI | TSSOP-16 | 30,447 | ₹60.41 · 30,447 in stock | View |
 | SP3232EBEY-L/TR#C132106MaxLinear · TSSOP-16 | MaxLinear | TSSOP-16 | 12,534 | ₹55.49 · 12,534 in stock | View |
 | ICL3232EIV-16Z-T#C152391RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 55 | ₹559.63 · 55 in stock | View |
