TIDatasheet (PDF)

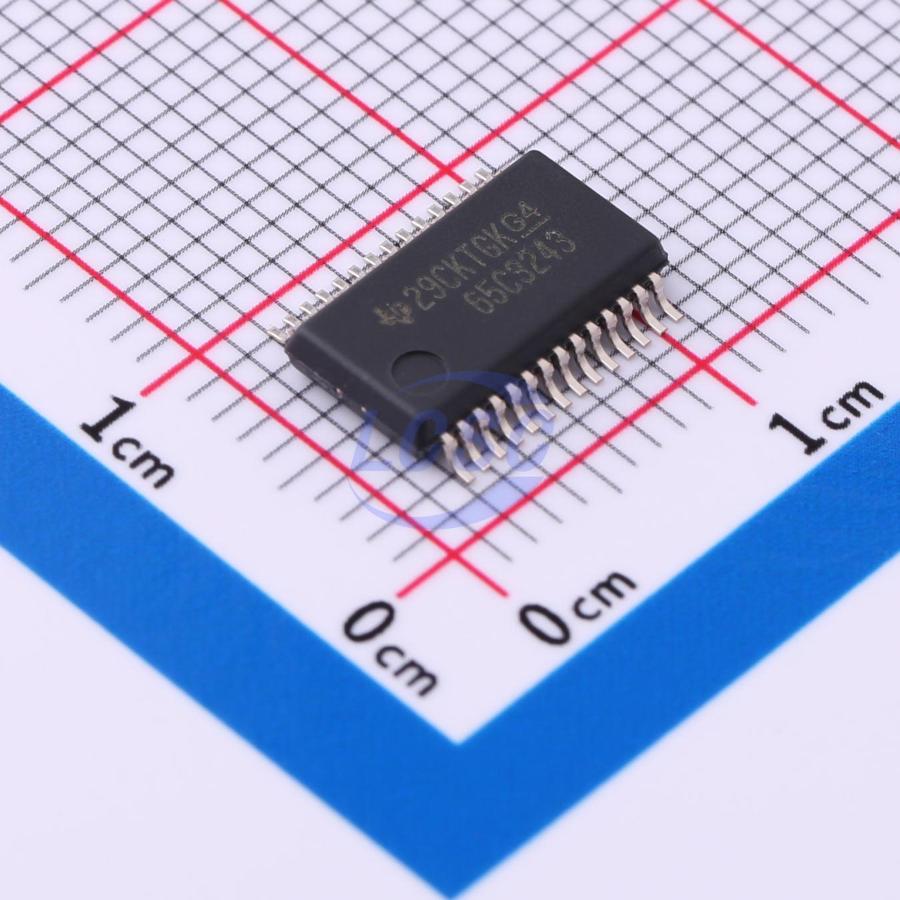

SN65C3243DBR
Transceiver 3V~5.5V 1Mbps SSOP-28-208mil Drivers, Receivers, Transceivers RoHS
SSOP-28-208milROHS CompliantActive
SN65C3243, SN75C3243 3V to 5.5V Multi-Channel Line Drivers and Receivers for RS-232 Compliant Applications
- Manufacturer
- TI
- Manufacturer part #
- SN65C3243DBR
- Store part #
- C2671401
- Package / case
- SSOP-28-208mil
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,820 in stock
#C2671401
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹528.25 | ₹528.25 |
| 10+ | ₹449.46 | ₹4,494.60 |
| 30+ | ₹402.80 | ₹12,084.00 |
| 100+ | ₹355.49 | ₹35,549.00 |
| 500+ | ₹333.57 | ₹1,66,785.00 |
| 1,000+ | ₹323.80 | ₹3,23,800.00 |
1 × ₹528.25
₹528.25
excl. GST
₹623.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN65C3243DBR
₹528.25 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 3
- Features
- Low-power mode;Wake-up function
- Number of Receivers
- 5
- Quiescent Supply Current
- 1.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.54 g
Overview
The SN65C3243 and SN75C3243 contain three line drivers, five line receivers, and a dual charge pump circuit with pin-to-pin (serial port connector pins, including GND) ±15kV ESD protection. The device provides an electrical interface between an asynchronous communication controller and a serial port connector. The charge pump and four small external capacitors support operation from a single 3V to 5.5V supply. Additionally, the device includes an always-active noninverting output (ROUT2B), which enables applications using ring indication to transmit data when the device is powered down. The device operates at data signaling rates up to 1Mbit/s, with an enhanced slew rate range from 24V/μs to 150V/μs.
Applications
- Battery-powered systems
- Personal electronics
- Laptops
- Portable computers
- PDAs
- Handheld devices
Key features
- Powered by 3V to 5.5V VCC supply
- Always-active non-inverting receiver output (ROUT2B)
- Low standby current: 1μA (typical)
- External capacitors: 4×0.1μF
- Accepts 5V logic inputs with 3.3V supply
- Interoperable with SN65C3238, SN75C3238
- Supports data rates from 250kbit/s to 1Mbit/s
- RS-232 bus pin ESD protection greater than ±15kV using HBM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN75C3243DBR#C2671407TI · SSOP-28-208mil | TI | SSOP-28-208mil | 2 | ₹349.83 · 2 in stock | View |
 | MAX3243ECDBR#C2671247TI · SSOP-28-208mil | TI | SSOP-28-208mil | 789 | ₹245.44 · 789 in stock | View |
| ICL3245EIAZ-T#C3200592RENESAS · SSOP-28 | RENESAS | SSOP-28 | 10 | ₹515.57 · 10 in stock | View | |
 | TRS3243ECDBR#C544326TI · SSOP-28-208mil | TI | SSOP-28-208mil | 153 | ₹232.76 · 153 in stock | View |
 | SP3243EUEA-L/TR#C916165MaxLinear · SSOP-28-208mil | MaxLinear | SSOP-28-208mil | 5,065 | ₹131.47 · 5,065 in stock | View |
