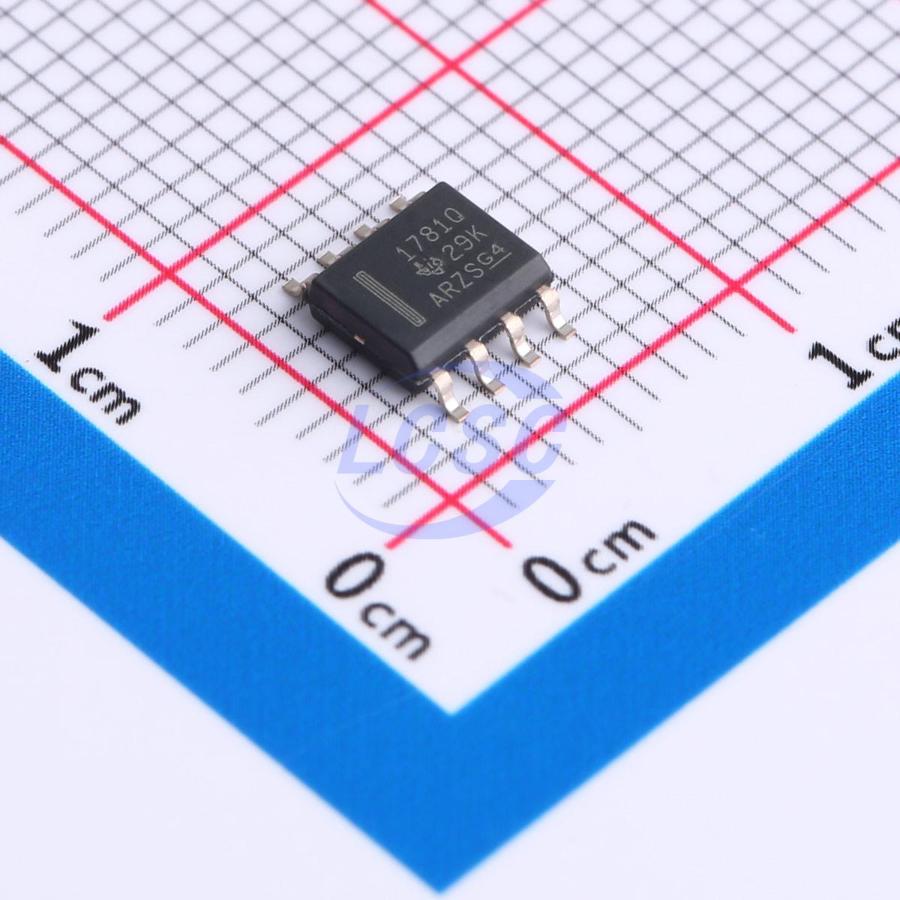

SN65HVD1781QDRQ1

These devices combine a differential driver and a differential receiver, which operate from a single power supply. In the 'HVD1782, the driver differential outputs and the receiver differential inputs are connected internally to form a bus port suitable for half - duplex (two - wire bus) communication. This port features a wide common - mode voltage range, making the devices suitable for multipoint applications over long cable runs. These devices are characterized from -40°C to 125°C. These devices are pin - compatible with the industry - standard SN75176 transceiver, making them drop - in upgrades in most systems. These devices are fully compliant with ANSI TIA/EIA 485 - A with a 5 - V supply and can operate with a 3.3 - V supply with reduced driver output voltage for low - power applications.

Applications

• Automotive Data Links

Key features

• Qualified for Automotive Applications
• AEC - Q100 Qualified With the Following Results
• Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
• Device HBM ESD Classification Level H2
• Device CDM ESG Classification Level C3B
• Bus - Pin Fault Protection to:
• > ±70 V ('HVD1780 - Q1, 'HVD1781 - Q1)
• > ±30 V ('HVD1782 - Q1)
• Operation With 3.3 - V to 5 - V Supply Range
• ±16 - kV HBM Protection on Bus Pins
• Reduced Unit Load for up to 320 Nodes
• Failsafe Receiver for Open - Circuit, Short - Circuit and Idle - Bus Conditions
• Low Power Consumption
• Low Standby Supply Current, 1 μA Maximum
• ICC 4 - mA Quiescent During Operation
• Pin - Compatible With Industry - Standard SN75176
• Signaling Rates of 115 kbps, 1 Mbps, and up to 10 Mbps
