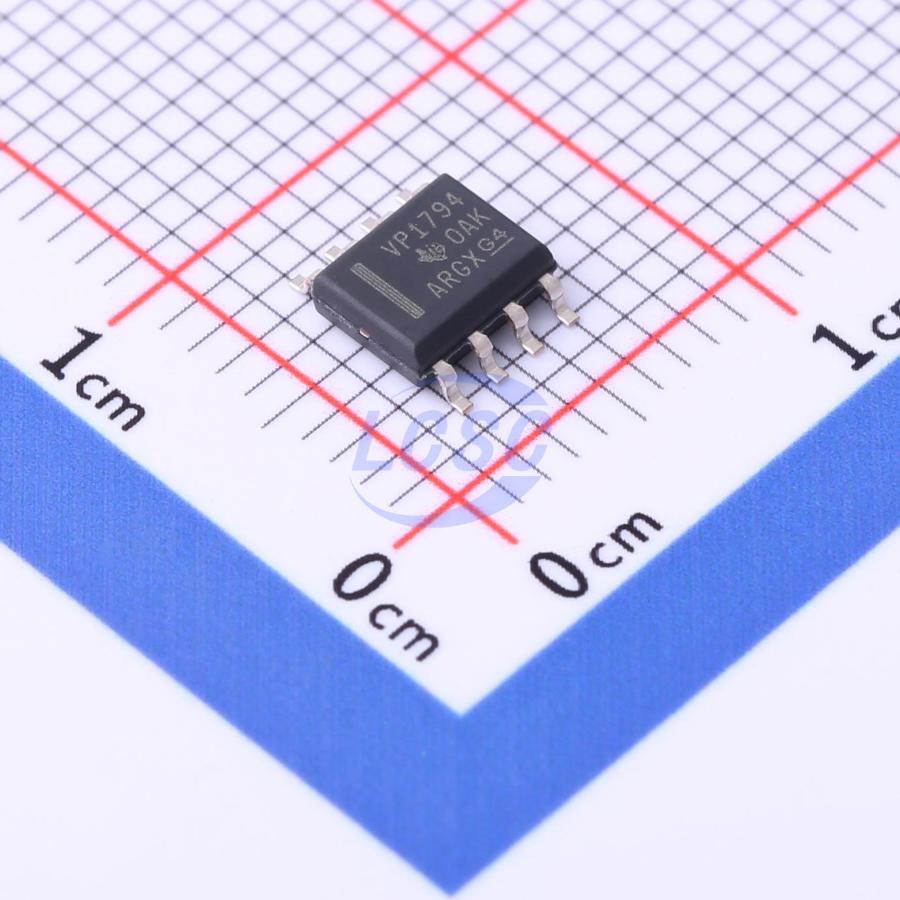

SN65HVD1794DR

These devices are designed to withstand overvoltage faults such as direct shorts to power supplies, miswiring faults, connector failures, cable crushing, and tool misoperation. They also feature high robustness against ESD events, with high-level protection compliant with the Human Body Model specification. These devices integrate a differential driver and a differential receiver, operating from a single supply. The driver differential output and receiver differential input are internally connected to form a bus port suitable for half-duplex (two-wire bus) communication. The cable inversion pin (INV) can actively correct miswiring errors that may occur during installation. Upon detection of a communication error, the user can apply a logic high to the INV pin to effectively invert the polarity of the differential bus port, thereby correcting reversed bus wires. These devices feature a wide common-mode voltage range, making them suitable for multipoint applications over long cable runs. The operating temperature range is -40℃ to 105℃.

Applications

• RS-485 networks
• RS-422 networks
• Hot-swap applications
• J1708 applications

Key features

• Bus pin fault protection up to greater than ±70V
• Cable inversion feature corrects reversed bus pins
• Common-mode voltage range (-20V to 25V) exceeds TIA/EIA 485 standard requirements by more than 2×
• Bus I/O protection
• ±16 kV JEDEC HBM protection
• Reduced unit load, supports up to 256 nodes
• Receiver fail-safe under open, short-circuit, and idle bus conditions
• Low power consumption
• Quiescent current ICC of 5 mA during operation
• Glitch-free power-up and power-down operation
