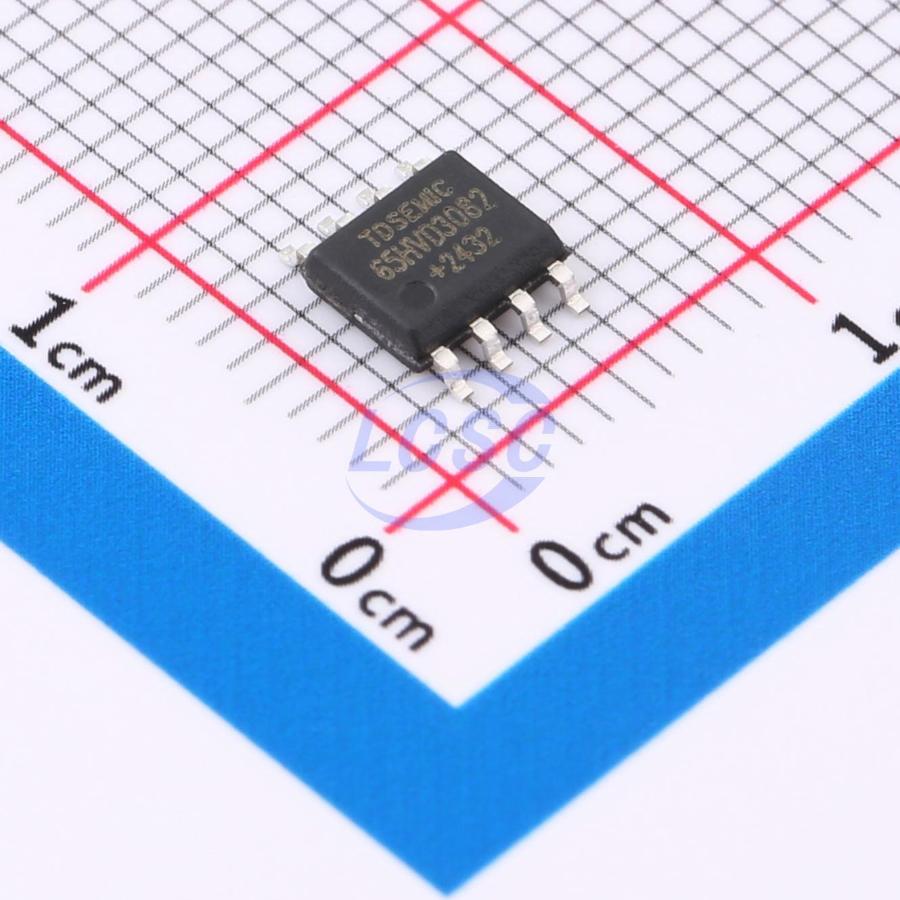

SN65HVD3082DR-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
IC TRANSCEIVER HALF 1/1 SOP-8
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN65HVD3082DR-TD
- Store part #
- C49023584
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,900 in stock
#C49023584
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.46 | ₹147.30 |
| 50+ | ₹23.13 | ₹1,156.50 |
| 150+ | ₹20.41 | ₹3,061.50 |
| 500+ | ₹17.04 | ₹8,520.00 |
| 2,500+ | ₹15.53 | ₹38,825.00 |
| 5,000+ | ₹14.63 | ₹73,150.00 |
5 × ₹29.46
₹147.30
excl. GST
₹173.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65HVD3082DR-TD
₹147.30 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Number of Nodes
- 128
- Operating Temperature
- 0℃~+70℃
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Hot-swap protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 160uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
SN65HVD3082DR-TD is a transceiver for RS-485 and RS-422 communication systems, supporting data transmission and reception rates up to 10Mbps. The device operates in half-duplex mode with driver enable and receiver enable control pins. The receiver features 1/8 unit load input impedance, allowing up to 128 loads on the bus. The device provides ESD protection; for hot-plug applications, additional external protection components are recommended.
Applications
- Low-power RS485 & RS422 receiver
- Electric, water, and gas meters
- Level translation
- Access control and security systems
Key features
- Three-state output
- Half-duplex communication
- A, B terminal short-circuit protection
- SOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TD3485-3.3-TD#C48953895TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 195 | ₹42.26 · 195 in stock | View |
 | SN65HVD3085DR-TD#C49023583TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 200 | ₹52.15 · 200 in stock | View |
