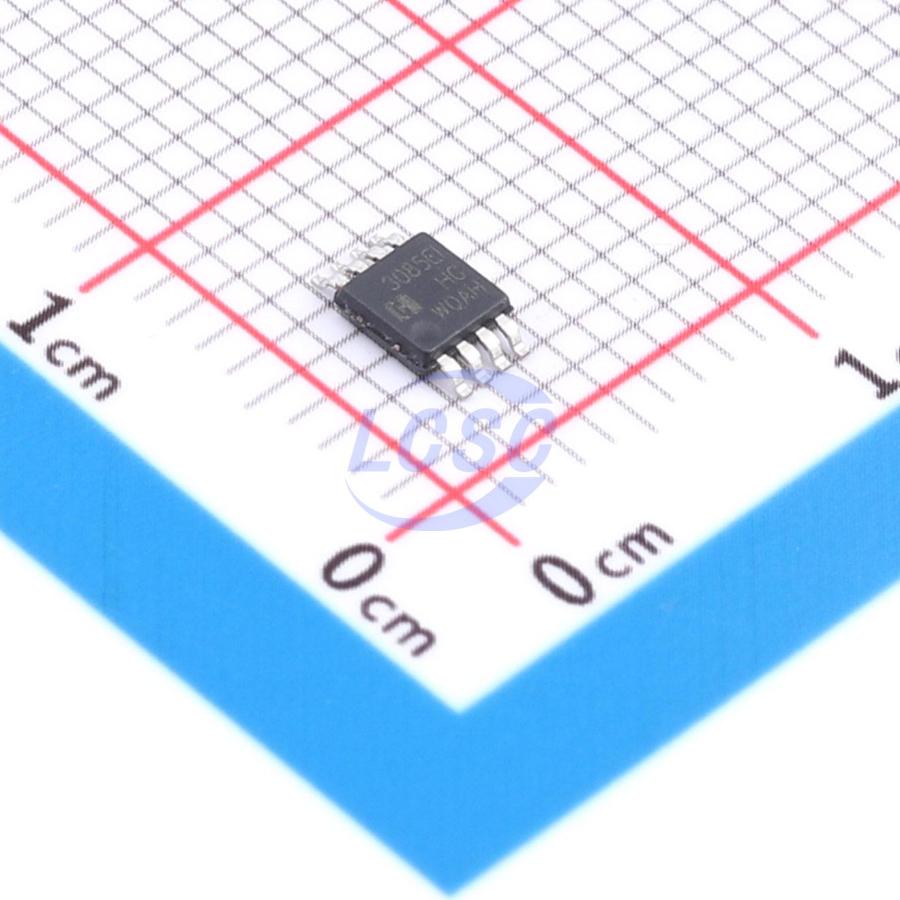

SN65HVD3085EIMM/TR

SN65HVD3080 - SN65HVD3088 are +5.0V-powered RS-485/RS-422 transceivers with ±16kV ESD protection. They feature a failsafe circuit that drives the receiver output to a logic high when the receiver inputs are open or shorted, or when all transmitters connected to a terminated bus are disabled. The entire family supports hot-plug capability, eliminating fault transients on the bus during power-up or hot insertion. The SN65HVD3080 - SN65HVD3088 drivers provide an enhanced output voltage swing (exceeding 2.1V into a 54Ω load), ensuring greater noise margin. The SN65HVD3080 - SN65HVD3085E feature a slew-rate-limited driver that reduces EMI and reflections caused by improperly terminated cables, enabling error-free data transmission at up to 500kbps. The SN65HVD3086E/SN65HVD3087E/SN65HVD3088 drivers have no slew rate limitation, supporting data rates up to 16Mbps. The SN65HVD3082E/SN65HVD3085E/SN65HVD3088 are designed for half-duplex communication; the SN65HVD3080/SN65HVD3081E/SN65HVD3083E/SN65HVD3084E/SN65HVD3086E/SN65HVD3087E are designed for full-duplex communication. All devices feature a 1/8-unit-load receiver input impedance, allowing up to 256 transceivers to be connected on the bus. The SN65HVD3081E/SN65HVD3082E/SN65HVD3084E/SN65HVD3085E/SN65HVD3087E/SN65HVD3088 are available in 8-pin DIP and 8-pin SOP packages, while the SN65HVD3080/SN65HVD3083E/SN65HVD3086E are available in 14-pin DIP and 14-pin SOP packages. These devices are offered in both commercial and industrial temperature ranges.

Applications

• RS-422/RS-485 communication
• Digital electric/water meters, industrial control, industrial embedded computers and peripherals, security surveillance systems
• Routers and switches
• Instrumentation, level translation
• EMI-sensitive transceiver applications

Key features

• True fail-safe receiver, low-power shutdown mode (except SN65HVD3081E/ SN65HVD3084E/ SN65HVD3087E)
• DE and RE (active-low) with hot-plug input structure
• +5.0V supply voltage, supports up to 256 transceivers on bus, slew-rate limiting for error-free data transmission (except SN65HVD3086E/ SN65HVD3087E/ SN65HVD3088)
• Enhanced ESD protection on I/O pins (±16kV IEC 61000-4-2 model)
• Drop-in replacement for MAX3080–MAX3088, MAX13080–88E series
