TIDatasheet (PDF)

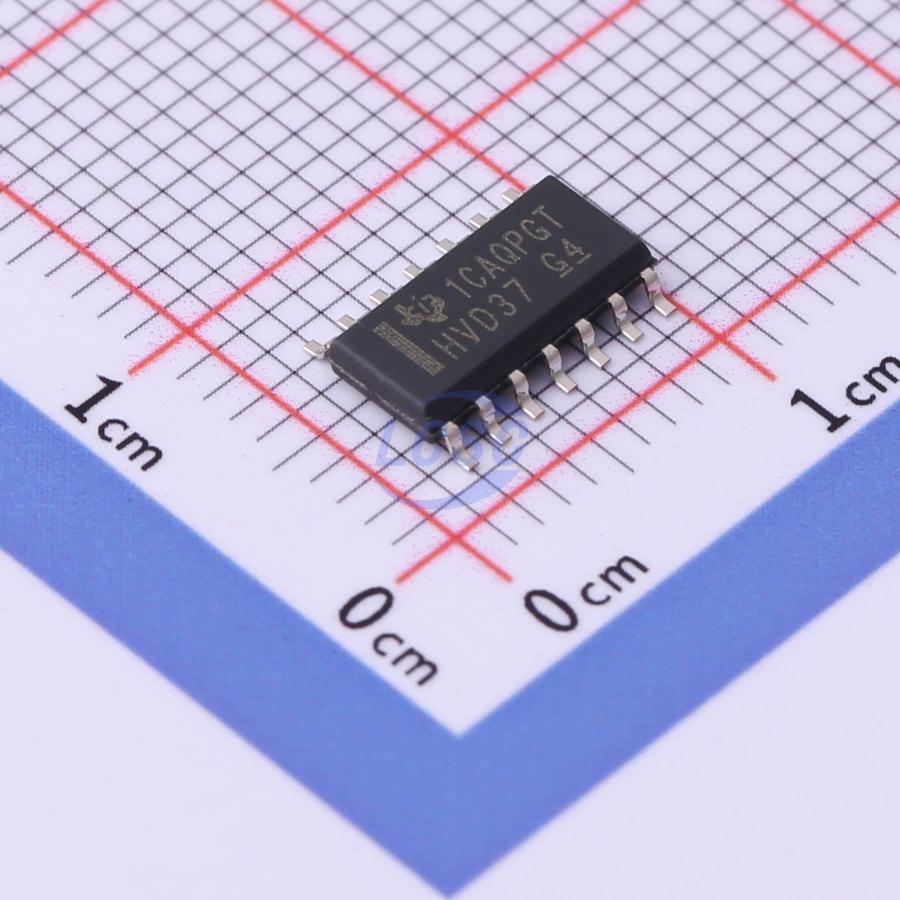

SN65HVD37DR
1/1 Transceiver Full RS422, RS485 SOIC-14
SOIC-14ROHS3 CompliantActive
Low Power, 3.3V Supply Full-Duplex RS-485 Driver/Receiver
- Manufacturer
- TI
- Manufacturer part #
- SN65HVD37DR
- Store part #
- C2671494
- Package / case
- SOIC-14
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,488 in stock
#C2671494
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹345.40 | ₹345.40 |
| 10+ | ₹294.45 | ₹2,944.50 |
| 30+ | ₹252.16 | ₹7,564.80 |
| 100+ | ₹219.42 | ₹21,942.00 |
| 500+ | ₹204.68 | ₹1,02,340.00 |
| 1,000+ | ₹198.17 | ₹1,98,170.00 |
1 × ₹345.40
₹345.40
excl. GST
₹407.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65HVD37DR
₹345.40 for 1 + GST
Specifications
- Voltage - Supply
- 3V~3.6V
- Type
- Transceiver
- Data Rate
- 20Mbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±16kV
- Communication Mode
- Full-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Fail-safe;Hot-swap protection;Overcurrent Protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 850uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
The SN65HVD37 combines a robust differential driver and a receiver with high noise immunity to meet the demands of stringent industrial applications. The driver's differential outputs and receiver's differential inputs are separate pins, forming a bus port for full-duplex (4-wire) communication. The driver and receiver can be independently enabled and feature a wide common-mode voltage range, making this device suitable for multipoint applications over long cable runs. The SN65HVD37 is rated for an operating temperature range of -40℃ to 85℃.
Applications
- Telecommunications equipment
- Industrial automation
- Process automation
- Building automation
- Point-of-sale (POS) terminals
Key features
- Low-current standby mode: <11A typical
- Operating quiescent current < 1mA
- High receiver hysteresis for noise immunity (typical 60mV)
- 1/8 unit load (up to 256 nodes on bus)
- Bus pin ESD protection exceeding 15kV HBM
- Driver output slew rate optimized for signal transmission up to 20Mbps
- Glitch-free power-up and power-down protection for hot-plug applications
- 5V-tolerant logic inputs
- Bus idle, open, and short-circuit failsafe
- Driver current limiting and thermal shutdown
- Fully compliant with all TIA-485-A specifications
