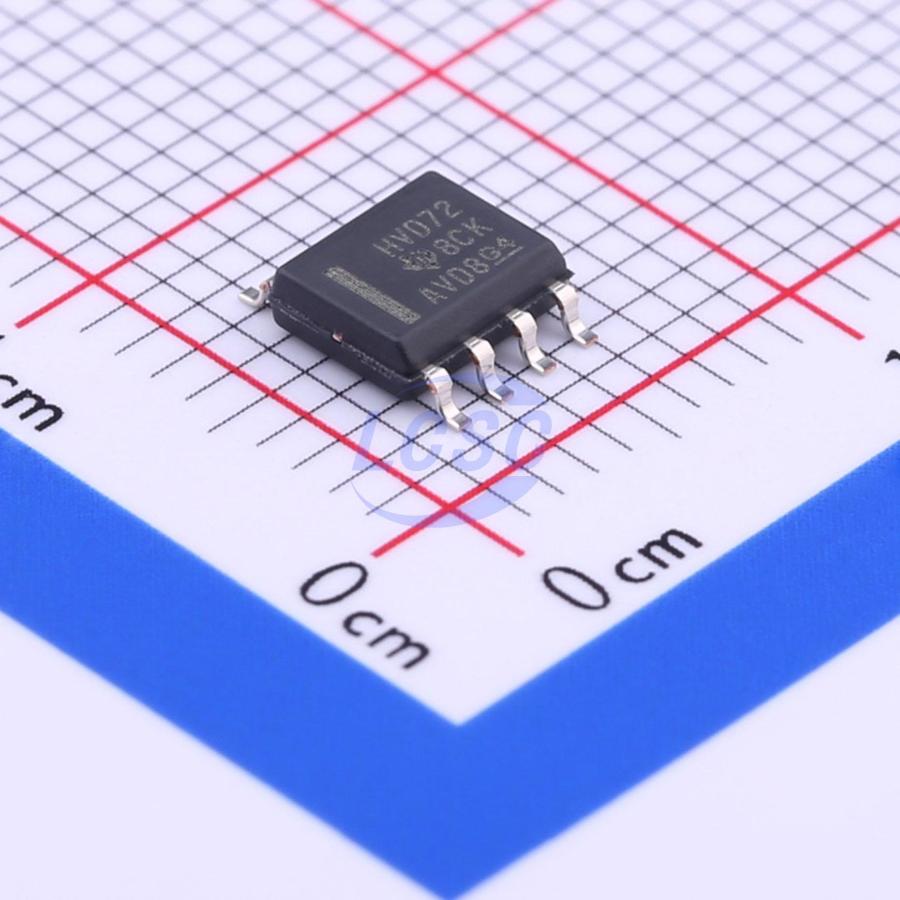

SN65HVD72DR

These devices have robust 3.3V drivers and receivers in a small package for demanding industrial applications. The bus pins are robust to ESD events, with high levels of protection to Human-Body Model and IEC Contact Discharge specifications. These devices each combine a differential driver and a differential receiver, which operate from a single 3.3-V power supply. The driver differential outputs and the receiver differential inputs are connected internally to form a bus port suitable for half-duplex (two-wire bus) communication. These devices all feature a wide common-mode voltage range making the devices suitable for multi-point applications over long cable runs. These devices are characterized from -40°C to 125°C.

Applications

• Factory Automation
• Telecomm Infrastructure
• Motion Control

Key features

• Small-size MSOP Packages Save Board Space or SOIC for Drop-in Compatibility
• Bus I/O Protection
• ±15kV HBM protection
• ±12kV IEC61000-4-2 Contact Discharge
• Extended Industrial Temperature Range -40°C to 125°C
• Large Receiver Hysteresis (80 mV) for Noise Rejection
• Low Unit-loading allows over 200 connected nodes
• Low Power Consumption
• Low Standby Supply Current: <2 μA
• ICC <1 mA Quiescent During Operation
• 5V-Tolerant Logic Inputs Compatible With 3.3 V or 5 V Controllers
• Signaling Rate Options Optimized for: 250 kbps, 20 Mbps, 50 Mbps
