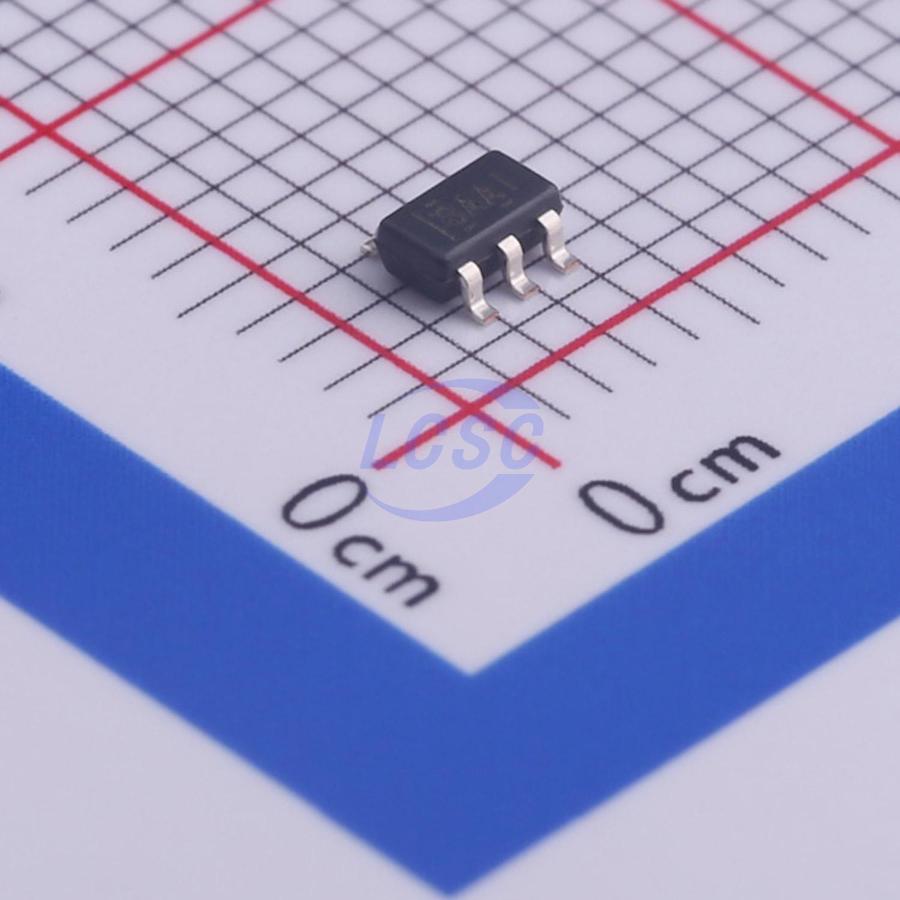

SN65LVDS1DBVR

SN65LVDS1, SN65LVDS2, and SN65LVDT2 are single-channel, low-voltage differential line drivers and receivers in small-outline transistor packages. The outputs comply with TIA/EIA-644 and deliver a minimum differential output voltage swing of 247 mV into a 100 Ω load at signaling rates up to 630 Mbps for drivers and up to 400 Mbps for receivers. When the SN65LVDS1 is used with an LVDS receiver (such as the SN65LVDT2) in a point-to-point connection, data or clock signals can be transmitted over PCB traces or cables at very high rates with very low EMI and power consumption. The package, low power consumption, low EMI, high ESD tolerance, and wide supply voltage range make these devices well suited for battery-powered applications. The SN65LVDS1, SN65LVDS2, and SN65LVDT2 operate over a temperature range of -40°C to 85°C.

Applications

• Wireless Infrastructure
• Telecom Infrastructure
• Printer

Key features

• Meets or Exceeds the ANSI TIA/EIA - 644 Standard
• Designed for Signaling Rates up to:
• 630 Mbps for Drivers
• 400 Mbps for Receivers
• Operates From a 2.4 - V to 3.6 - V Supply
• Available in SO1 - 23 and SOIC Packages
• Bus - Terminal ESD Exceeds 9 kV
• Low - Voltage Differential Signaling With Typical Output Voltages of 350 mV Into a 100 - Ω Load
• Propagation Delay Times
• 1.7 - ns Typical Driver
• 2.5 - ns Typical Receiver
• Power Dissipation at 200 MHz
• 25 mW Typical Driver
• 60 mW Typical Receiver
• LVDT Receiver Includes Line Termination
• Low Voltage TTL (LVTTL) Level Driver Input Is 5 - V Tolerant
• Driver Is Output High - Impedance with VCC < 1.5 V
• Receiver Output and Inputs are High - Impedance With VCC < 1.5 V
• Receiver Open - Circuit Fail Safe
• Differential Input Voltage Threshold Less Than 100 mV
