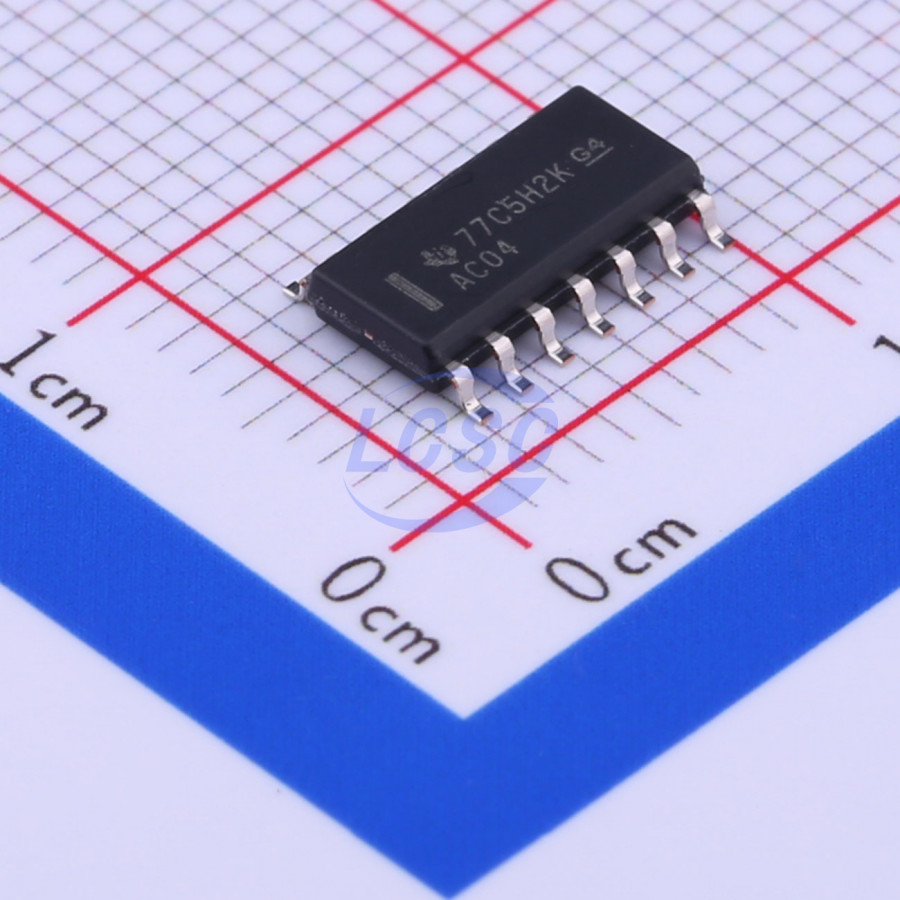

SN74AC04DR
2V~6V 7ns@5V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
HEX INVERTERS 2-V to 6-V Vcc Operation
- Manufacturer
- TI
- Manufacturer part #
- SN74AC04DR
- Store part #
- C352940
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,065 in stock
#C352940
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.90 | ₹184.50 |
| 50+ | ₹29.23 | ₹1,461.50 |
| 150+ | ₹25.93 | ₹3,889.50 |
| 500+ | ₹21.82 | ₹10,910.00 |
| 2,500+ | ₹17.03 | ₹42,575.00 |
| 5,000+ | ₹15.93 | ₹79,650.00 |
5 × ₹36.90
₹184.50
excl. GST
₹217.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AC04DR
₹184.50 for 5 + GST
Specifications
- Logic Family
- 74AC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 500mV
- Propagation Delay
- 7ns@5V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 900mV~1.65V
- Input Logic Level - High
- 2.1V~3.85V
- Output Logic Level - High
- 2.4V~4.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
The ‘AC04 devices contain six independent inverters. The devices perform the Boolean function Y = A(overline).
Key features
- Supply voltage operating range: 2V~6V
- Inputs withstand up to 6V
- Maximum propagation delay tpd of 7ns at 5V supply
- Maximum rated supply voltage range: -0.5V~7V
- Maximum rated input voltage range: -0.5V~VCC+0.5V
- Maximum rated output voltage range: -0.5V~VCC+0.5V
- Input clamp current range: ±20mA
- Output clamp current range: ±20mA
- Continuous output current range: ±50mA
- Continuous current per VCC or GND pin: ±200mA
- Thermal resistance by package: D package 86°C/W, DB package 96°C/W, N package 80°C/W, NS package 76°C/W, PW package 113°C/W
- Storage temperature range: -65°C~150°C
- All unused inputs must be tied to VCC or GND for proper device operation
- NC pins have no internal connection
- Compliant with applicable semiconductor environmental regulations
