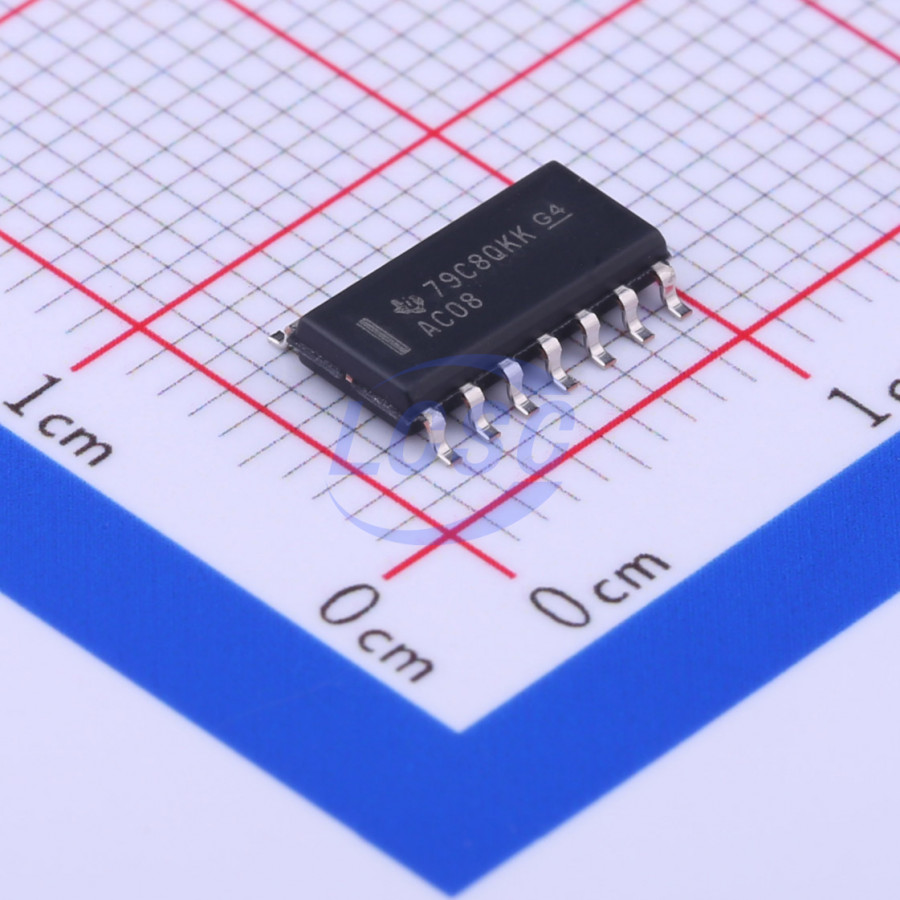

SN74AC08DR
2uA 2V~6V 7.5ns@5V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-AND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AC08DR
- Store part #
- C352941
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,280 in stock
#C352941
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.82 | ₹254.10 |
| 50+ | ₹39.03 | ₹1,951.50 |
| 150+ | ₹33.99 | ₹5,098.50 |
| 500+ | ₹27.69 | ₹13,845.00 |
| 2,500+ | ₹24.89 | ₹62,225.00 |
| 5,000+ | ₹23.21 | ₹1,16,050.00 |
5 × ₹50.82
₹254.10
excl. GST
₹299.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AC08DR
₹254.10 for 5 + GST
Specifications
- Input Logic Level - Low
- 900mV~1.65V
- Input Logic Level - High
- 2.1V~3.85V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74AC Series
- Output Logic Level - High
- 2.46V;3.76V;4.76V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
The ’AC08 devices are quadruple 2-input positive-AND gates. These devices perform the Boolean function Y = A • B or Y = A(overline) + B(overline) in positive logic.
Key features
- 2-V to 6-V VCC Operation
- Inputs Accept Voltages to 6 V
- Max propagation delay (tpd) of 7.5 ns at 5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AC08D#C2868881TI · SOIC-14 | TI | SOIC-14 | 100 | ₹78.49 · 100 in stock | View |
 | 74AC08SCX#C5478onsemi · SOIC-14 | onsemi | SOIC-14 | 1 | ₹73.62 · 1 in stock | View |
 | MC74AC08DG#C152298onsemi · SOIC-14 | onsemi | SOIC-14 | 132 | ₹98.44 · 132 in stock | View |
 | SN74AC08QDRG4Q1#C2871159TI · SOIC-14 | TI | SOIC-14 | 113 | ₹65.37 · 113 in stock | View |
 | NLV74AC08DR2G#C904820onsemi · SOIC-14 | onsemi | SOIC-14 | 79 | ₹50.29 · 79 in stock | View |
