SN74ACT14DR
Schmitt trigger 4.5V~5.5V 11.5ns@5V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive

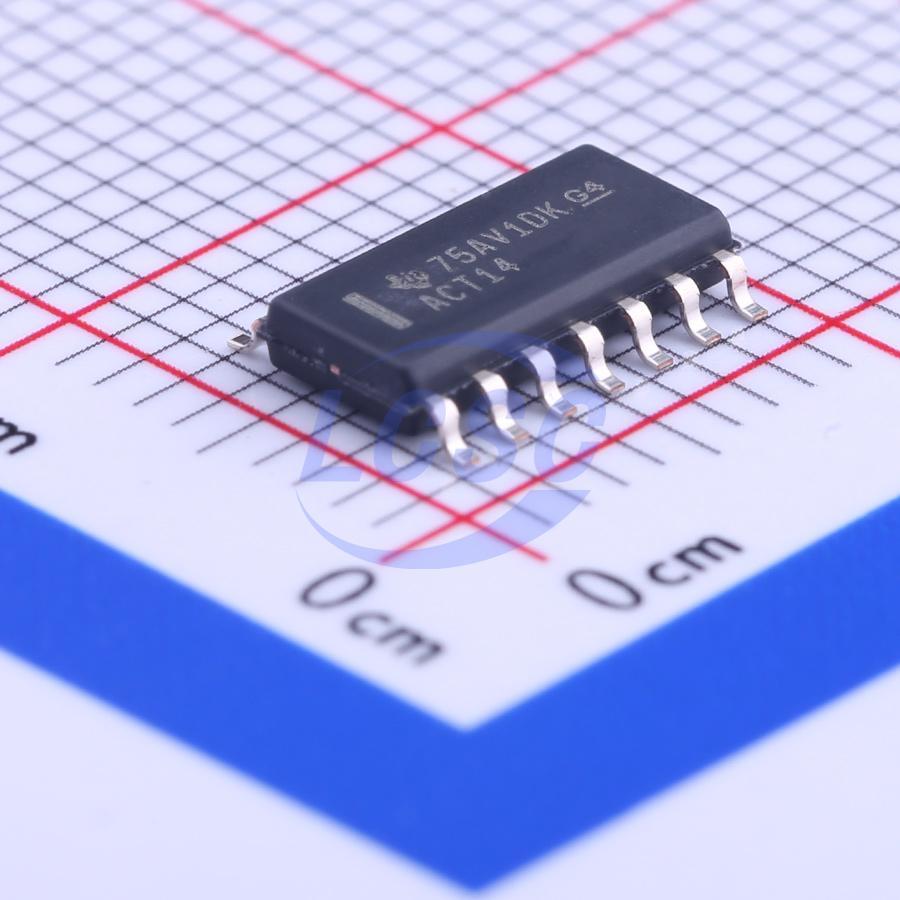

HEX SCHMITT-TRIGGER INVERTER
- Manufacturer
- TI
- Manufacturer part #
- SN74ACT14DR
- Store part #
- C71351
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,545 in stock
#C71351
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.31 | ₹161.55 |
| 50+ | ₹25.36 | ₹1,268.00 |
| 150+ | ₹22.39 | ₹3,358.50 |
| 500+ | ₹18.65 | ₹9,325.00 |
| 2,500+ | ₹15.97 | ₹39,925.00 |
| 5,000+ | ₹14.98 | ₹74,900.00 |
5 × ₹32.31
₹161.55
excl. GST
₹190.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74ACT14DR
₹161.55 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74ACT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 11.5ns@5V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 500mV~1.4V
- Input Logic Level - High
- 1.2V~2.1V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.76V~4.76V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
These Schmitt-trigger devices contain six independent inverters. They perform the Boolean function Y = A(overline). Because of the Schmitt action, they have different input threshold levels for positive-going (VT+) and for negative-going (VT-) signals. These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter-free output signals. They also have a greater noise margin than conventional inverters.
Key features
- Includes SN54ACT14 and SN74ACT14, available in multiple packages: J, W, D, DB, N, NS, PW, FK
- Pins marked NC have no internal connection
- Operating supply voltage VCC range: 4.5V~5.5V
- Inputs withstand up to 5.5V
- TTL-compatible inputs
- Maximum propagation delay tpd of 11ns at 5V supply
- Supply voltage absolute maximum range: -0.5V~7V
- Input voltage absolute maximum range: -0.5V~VCC+0.5V
- Output voltage absolute maximum range: -0.5V~VCC+0.5V
- Input clamp current range: ±20mA
- Output clamp current range: ±20mA
- Continuous output current range: ±50mA
- Continuous current through VCC or GND: ±200mA
- Storage temperature range: -65℃~150℃
- Thermal resistance by package: D package 86℃/W, DB package 96℃/W, N package 80℃/W, NS package 76℃/W, PW package 113℃/W
- All unused inputs must be tied to VCC or GND to ensure proper device operation
